      Mini-1U Server

    Create ticket on product

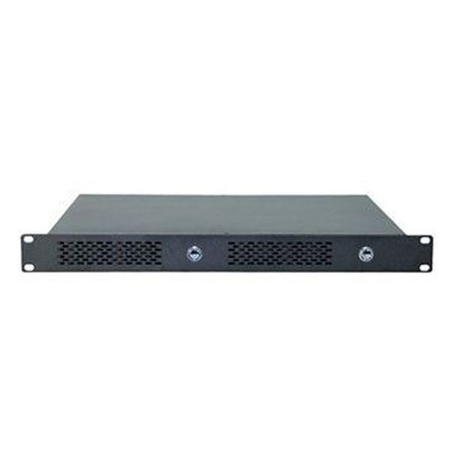

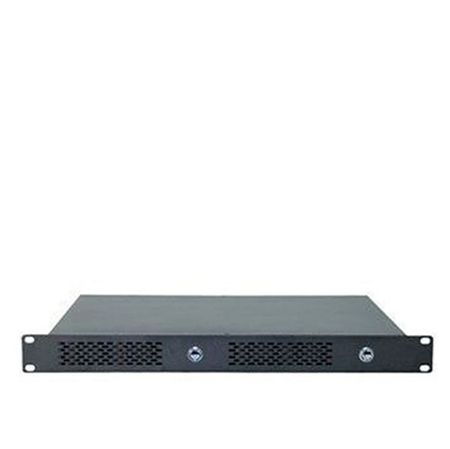

    1U-1000T

    Mini-1U Twin Intel® Core i7/i5/i3, Xeon 2-in-1 system 2/4LANs, Hot-swap Individual System, Fail Over, Load Balance
    Dimensions:
    Mini 1U:  16.8(W)x12.9(D)x1.75(H) inch
    Intel® Xeon™/Core™ i7/i5/i3 processor
    Intel® H81 Chipset (Option: H97, Q87, B85, H170, B150, H110)
    Up to 32GB per Motherboard
    2  or 4 x Gigabit/10Gbit LAN Per system
    SATA ports for HD/SSD + mSATA/M.2 SSD for OS Boot
    Expansion: mSATA, M.2 or mini PCI-Express slot
    USB 3.0/2.0 ports, Serial Ports
    OS support: Windows Server, Windows 10, 8x, 7, XP, Linux, FreeBSD.
    Applications: Internet Server, Network Appliance, Phone System, Digital Signage, Medical Equipment, Kiosk, POS, Entertainment Servers









    $0.00
    SKU: 1U-1000T
    Product specifications
    Motherboard
    H8100L2 Dual LAN based on Intel® H81 Chipset with Intel® Haswell 4th Generation Core™ i3/i5/i7 processor
    B8500L4 Quad LAN based on Intel® B85 Chipset with Intel® Haswell 4th Generation Core™ i3/i5/i7 processor
    Q8700L2 Dual LAN based on Intel® Q87 Chipset with Intel® Haswell 4th Generation Core™ i3/i5/i7 or Xeon processor
    H9700L2 Dual LAN based on Intel® H97 Chipset with Intel® Broadwell 5th Generation Core™ i3/i5/i7 or Xeon processor
    X9900L2 Dual LAN based on Intel® X99 Chipset with Intel® Core™ i7 or Xeon processor (2011 socket)
    H170L2 Dual LAN based on Intel® H170 Chipset with Intel® Skylake 6th Generation Core™ i3/i5/i7 processor
    X-D1540L4 2x10Gbit+2GigaLAN with Fanless Xeon Processor
    N3700G with GigaLAN based on Fanless Braswell Pentium® Processor
    2550L2D Dual LAN based on Intel® Atom D2550 Processor
    Processor
    • Intel® Xeon™/Core™ i7/i5/i3, Pentium® and Celeron® processor (Haswell, Broadwell or Skylake)
    • Supports Intel® Turbo-boost Technology
    • L3 cache varies with CPU
    Chipset
    • Intel® H81 (Option: B85, Q87, H97, H170, X99)
    Memory
    • Supports Dual Channel DDR3 1600/1333MHz or Quad channel DDR4
    • Supports non-ECC, unbuffered memory
    • Supports ECC memory configured with Xeon processor
    • Max. capacity up to 32GB per system board
    LAN
    • Dual port Gigabit LAN
    • Option: Quad LAN per system board with 10Gbit LAN option with Xeon X-D1540 SKU.
    • additional LAN through add-on module
    Expansion Slot
    • 1 x mini PCI-Express slot
    • 1 x mSATA or M.2 (depends on system board)
    Storage
    • 4 x SATA 6.0 Gb/s
    • mSATA or M.2 SSD slot (depends on system SKU)
    Audio
    • Realtek® 6-Channel High Definition Audio CODEC
    Back Panel I/O
    • 1 x HDMI port
    • Optional VGA, DP, DVI Graphics Ports depends on different system board.
    • 2 x RJ-45 Gigabit LAN port , optional 2 more on specific system board.
    • 4 x USB 3.0
    • 2 x USB 2.0/1.1
    • Optional Serial Ports
    Other I/O
    • 2 x USB 2.0 connectors supporting additional 4 USB 2.0 ports
    • 2 x 4-pin fan connectors, 1 x 3-pin fan connectors
    • 1 x Front panel high definition audio header
    • Optional 1 x S/PDIF Out header
    • 1 x 24-pin EPS Power connector
    • 1 x 4-pin ATX 12V Power connector
    • 1 x Front Systim Panel connector
    • 1 x DC12-19V
    System BIOS
    • 1 x 32 Mbit Flash Rom
    • Licensed AMI UEFI BIOS
    Manageability
    • WOL, PXE, PME Wake
    OS Support
    • Windows 10 or 7 (32-bit or 64-bit)
    • Windows 10 or 7 Pro (32-bit or 64-bit)
    • Windows IoT / Embedded Linux / FreeBSD
    • Dual-boot Windows / Linux
    Application
    • Internet Server, Network Appliance, Load Balance Gateway Control, Digital Signage, Medical Equipment, Banking Device, Phone System, Entertainment Server.
    Chassis
    • 1U-1000T 1U Rackmount Case
    • Mini 1U front mount: 16.8(W)x12.9(D)x1.75(H) inch, Weight: 30 lb.
    • 2 x 2.5" Internal Drive Bay+mSATA/M.2 SSD or 1 x 3.5"+1x2.5" Bay per system board
    Environment
    • Operating Temperature: 0 to +55 C
    • Non operating temperature: -20 to +70 C
    • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
    • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
    • Shock - Operating: 3,920 m/s2 (400G) 2ms
    • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    • MTBF: 50,000 Hours
    • RoHS Compliance
    *
    *
    *
    *
    *
    *
    *
    *
    *
    *
    *
    *
    *
