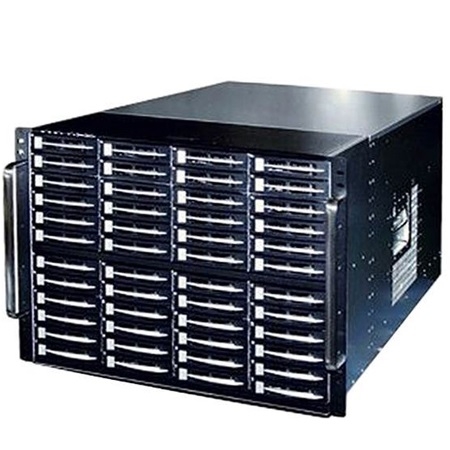

    PolyStor 8074A (Petabyte Solution)

    8U 74xSAS/SATA/SSD, up to 740TB per Box 8,000Mb/s High Performance iSCSI/SAN/NAS

    Featured Highlights

    Up to 740TB per box. With an affordable price, this is the best petabyte storage solution.
    8,000Mb/s Hardware Accelerated RAID-0, 1, 5, 6, 10, 50, 60 with hot spares option.
    Support for SSD, SAS and SATA drives (can be mixed).
    Support for iSCSI, NFS, SMB, NAS (can be mixed).
    4 to 12 x Gigabit, or mix with 10Gbit, Fibre Channel Host, Infiniband.
    One to four Intel Xeon Multi-Core processors; up to 1TB system memory.
    Linux-based storage server for large-capacity, high-performance I/O networks.
    Private / Public cloud application for live data, archive backup and recovery.
    Supports Windows, Mac and Linux Clients.
    User-friendly Web interface for setting up users and access rights.
    Redundant Power Supply. (3+1), KVM over IP supported.

    PolyStor 8074A is one of the highest capacity storage server in a single 8U box with individual hot swap (non-top pull type) drives, at a very affordable price. This is one of the best intelligent network storage solution for data centers, enterprise archiving, or cloud storage.

    $19,999.00
    SKU: NetDisk 8074A

    Product specifications
    Processor
    • Intel® Xeon™ Processor E5-2600 V2 / E5-2600 V3 Series / E5-2600 V4 Series(Optional)
    Memory
    • 32GB Quad-Channel ECC DDR4 system memory
    • Optional: up to 2 TB system memory
    OS and Storage Manager
    • Linux OS and NAS/iSCSI WEB based Manager
    • Optional: Red Hat Ceph,Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
    File System
    • XFS, EXT3 standard
    • Optional: ZFS, NTFS, or any file system supported by the x86 platform
    Network I/O
    • Optional: Additional 4 or 8 Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed)
    • 56Gbit FDR or 40Gbit QDR Infiniband supported
    Network Service
    • DHCP client/server (default is DHCP client/static)
    • Network Protocol: CIFS/SMB, NFS, FTP
    • iSCSI / NAS / SAN (Can be mixed)
    Management Interface
    • Web GUI
    • E-mail notification
    • Local Host Access via VGA and Keyboard
    Expansion Slot
    • Up to 6 x PCIe 3.0 slots (full height, full length)
    Remote Boot Function
    • Requires NIC with PXE support on client
    File Sharing
    • Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
    Access Control
    • Allows users to access shared files for "Read Only" or "Read/Write"
    Storage/RAID
    • Hardware accelerated RAID controller (3 RAID processors) PCIe 3.0 8x bus
    • Up to 2,000MB/sec sustained read and write. Unparalleled performance
    • Over 8,000MB/sec random write and 3,500MB/sec random read
    • 74 x 3.5" hot-swap drive bays for SAS/SATA
    • Optional: 1 Internal 3.5" and 2 x 2.5" drives
    • RAID 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60 with hot spare support (mixed configurations available)
    I/O Ports
    • 4x USB 2.0 rear connectors
    • VGA graphics
    • 2 x SATA-6G/s, 4 SATA-3G/s SATA port, optional SAS ports supported
    • Optional: 2 additional I/O (such as COM, PS/2, TPM) supported by header or add-on
    Client Support
    • MS Windows® 8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac
    • Snap Shot Backup and Recovery Client Support
    • Active Directory, Rsync are supported
    Remote Controls
    • Power on/off, system reset + USB
    • IPMI, KVM over IP, Remote Power On/Off is supported
    Indicators
    • Power, LAN and HDD LEDs
    Cooling
    • Rear: 9 x 40 x 56mm hot-swap fans for HDD Bays + 4 x 60 x 38mm fans for MB
    Power Supply
    • 1350W 3+1 redundant power supply (4 x 500W modules) UR/FCC/CE Certified
    Operating Temperature
    • From 0 ºC to 40 ºC (32ºF to 104 ºF)
    Non-Operating Temperature
    • From 0 ºC to 40 ºC (32ºF to 104 ºF)
    Operating Humidity
    • From 10% to 90% relative humidity
    EMI Safety
    • CE/FCC
    Dimensions
    • 8U Rackmount Chassis
    • Dimensions: 19" W x 14" H x 27" D
    • Weight: 200 lb.
    Warranty
    • SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
    • Base system:3 year standard parts and depot labor;lifetime toll free phone support.
    • Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
    • Optional:7+year extended warranty service available.
    • On-site service is available with additional cost.
