Edge AI PCs | Edge AI Industrial Computer

Edge for AI PCs - Micro Platform for Edge Computing

Edge Computing is a distributed computing model in which it occurs near a physical location where data is collected and analyzed, rather than on a centralized server or in the cloud. This new infrastructure includes sensors to collect data and Edge servers to securely process data in real time in the field, as well as connect other devices such as laptops and smartphones to the network.

Micro Platform for Edge computing is important as it creates new and improved ways for industrial and enterprise-grade enterprises to maximize operational efficiency, improve productivity and security, automate all major business processes, and ensure continuous availability. It is the leading method for achieving the digital transformation of your business.

The concept of Micro Platform for Edge Computing is integral to the next industrial revolution, transforming manufacturing and services.

________________________________________________________________________________________________________________

More Edge AI PC @ Desktop Version

Model	Processor	Chipset	Memory	Graphics	Network	M.2	MSata	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio
2600L2	N2600	NM10	1 DDR3SO	Intel HD 3600	2 Realtek		option	4 R+2 H		1 VGA	2 MiniPCIe+PCI	2xPS/2	5.1 ALC662
Nano-J1900L2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek		1	2 R+2 H	2 F	1 HDMI+1 VGA	MiniPCIe-F		5.1 ALC662
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	2-8	1	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662

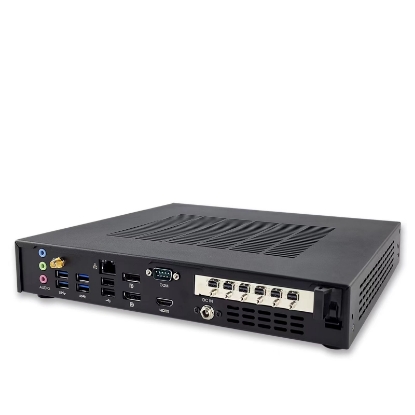

1750C-6DP	Socket 1150 Haswell	H81	2 DDR3	Radeon 7750/7870 Nvidia NV810	2 Realtek		1	4 R+1 H	2 R	6 or 8 DP	MiniPCIe+PCIe 16x		5.1 ALC662
2550L2D	D2550	NM10	2 DDR3SO	Intel HD 3650	2 Broadcom		2	4 R+2 H	2 R	1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
H110AEL2/i1000A12	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Intel\i219V+1 Intel\i211AT	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH	MiniPCIe+PCIe 4x	GPIO	7.1 ALC887
J1900L4	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	4 Intel		1	2 R+2 H		1 VGAH	1 MiniPCIe	GPIO	5.1 ALC662
J1900L6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	6 Intel		1	2 R		1 VGAH	MiniPCIe+PCIe 8x		5.1 ALC662
1U-12DP	Socket 1155 Ivy Bridge	Z77	2 DDR3	2 Radeon 7750	2 Intel		1	2 R+4 H	2 R	12 DP+1 VGA	MiniPCIe		option
2550L2D-MxPC	D2550	NM10	2 DDR3SO	Intel HD 3650	2 Broadcom		2	4 R+2 H	2 R	1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
X-D1540L2	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	2 Intel	1	6	4 H	2 R	1 VGA	PCIe 16x	TPM	option
X-D1540L4	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	1	6	4 H	2 R	1 VGA	PCIe 16x	TPM	option
i5-6200FL2	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
J1900S6	J1900	Bay Trail	2 DDR3SO	7th Gen. HD	2 Intel		1	1 R	1 R	1 HDMI+1 DP+1 VGA	MiniPCIe+PCIe 8x	TPM	7.1 ALC888
Nano-J1900L4	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	4 Intel\WG82573V		1	2 F+2 H	1 F	1 VGA	MiniPCIe-F	GPIO	5.1 ALC662
H110-G330-6DP	6/7th Socket 1151	H110	2 DDR3SO	Radeon 7750	2 Intel		1	4 R	1 F	6 DP	2 MiniPCIe		5.1 ALC662
B150L2-6DP/8DP	6/7th Socket 1151	B150	2 DDR3	Radeon 7750 Radeon 7870 Radeon NV810	2 Realtek		1	4 R+1 H	2 R	6 or 8 DP	MiniPCIe+PCIe 16x		5.1 ALC662
i41F	N3150	Braswell-u	2 DDR3SO	8th Gen. HD	2 Realtek		1	2 R	3 R	1 DP+1 HDMI	2 MiniPCIe	TPM	5.1 ALC662
Nano-N3450L2/J3455L2	N3350	Apollo Lake	1 DDR3SO	Intel HD 500	2 Realtek		1	2 F	4 F	2 HDMI+1 VGA	MiniPCIe		5.1 ALC662
i42F/i43F	N3350	Apollo Lake	1 DDR3SO	Intel HD 500	2 Realtek		1	2 R	3 R	1 HDMI+1 DP	2 MiniPCIe		5.1 ALC662
3855Z/6100Z	3855u	Skylake-u Kaby Lake-u	2 DDR4SO	Intel HD 520	1 Realtek+1 Intel	2-8		2 R	2 F	1 DP+1 HDMI	MiniPCIe		5.1 ALC662
H8700L8-1U	Socket 1150 Haswell	H87	2 DDR3SO	Intel HD 5000	8 Intel/F	2-8	1	2 F+4 H	2 H	1 VGA	MiniPCIe+PCIe 8x
G302F/G303	i5-4200u	Haswell-u	2 DDR3SO	Nvidia GT730/GT630	1 Realtek		1	2 R+1 H		1 DP+2 HDMI	MiniPCIe		5.1 ALC662
H110L2C12	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2-8	1	2 R+2 H	4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
i5-6200L2B	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	2 HDMI	2 MiniPCIe		5.1 ALC662
Poly X299E4	Socket 2066 Core X-Series	X299	8 DDR4	By Graphics Card	1 Intel\i219V+1 Intel\i211AT	3	8 R	4 R+4 H	5 R+6 H	by Graphics Card	4 PCIe 16x+1 PCIe 1x	TPM+1xPS/2	7.1 ALC1220
X399E4	AMD Ryzen Threadripper	AMD X399	8 DDR4	AMD Radeon	2 Intel\i211AT	3-4/6/8/10	6 R	4 H	9 R+4 H	by Graphics Card	4 PCIe 16x+1 PCIe 4x+1 PCIe 1x	1xPS/2	7.1 ALC1200
H110L2A/i1000A13	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2-8	1	6 H	2 R	1 HDMI+1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
C3558L4	Atom-C (BGA-1310)	Denverton C3000	4 DDR4 256G/2Ch	Aspeed AST2400	4x1Gbit Intel LAN	1xM.2	1x2.5" SATA	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
C3758L4/C3758T	C3758	Denverton	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	2	12	2 R	1 H	1 VGA	PCIe 4x	TPM	option
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F		1	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	1xM.2	1x2.5" SATA	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
N4200AEL2	N4200	Apollo Lake	2 DDR3SO	Intel HD 505	2 Intel\i211AT		1	5 R	4 R	1 HDMI+2 DP+1 LVDS	MiniPCIe+PCIe 1x	GPIO+TPM	5.1 ALC662
X-D1520TP2/X-D1540TP2	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	2 Intel+2 SFP+1 IPMI	1	6 R	2 H	2 R	1 VGA	PCIe 16x	TPM	TPM
i39F-J1900	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek		1	2 R	3 R	1 HDMI+1 VGA	MiniPCIe		5.1 ALC662
i59F	i5-6200u	Skylake-u	2 DDR4SO	Intel HD 510	1 Intel\i219LM+1 Realtek\RTL8111F	2-8	1	2 R	2 R+2 S	2 DP+1 VGA	2 MiniPCIe	TPM	5.1 ALC662
i61F	i5-7200u	Kaby Lake-u	2 DDR4SO	Intel HD 620	1 Intel\i219LM+1 Realtek\RTL8111F	2-8	1	2 R	2 R+2 S	2 DP+1 VGA	2 MiniPCIe	TPM	5.1 ALC662
J4125/J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1-4/8	1	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2	GPIO	5.1 ALC662
X299L2	Socket 2066 Core X-Series	X299	4 DDR4	By Graphics Card	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	3	6 R	5 R+2 H	5 R+2 H	1 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
X299x	Socket 2066 Core X-Series	X299	4 DDR4	By Graphics Card	1 Intel\i219V+1 Intel\i211AT	2	8 R	4 R+4 H	5 R+2 H	by Graphics Card	3 PCIe 16x	TPM+1xPS/2	7.1 ALC1220
B360L2	8/9th Socket 1151	B360	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	4	2 R+2 H	4 R+2 H	2 HDMI	PCIe 16x	1xPS/2	7.1 ALC887
Q170A	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
i1000Q10	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
H110L2V	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek\RTL8111H	2-8	1	2 R+4 H	4 R	2 DP+1 VGA+1 HDMI/H	MiniPCIe+PCIe 16x		5.1 ALC662
H370L2	8/9th Socket 1151	H370	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	6 R	2 R+2 H	6 R+2 H	2 HDMI+1 DP	PCIe 16x	1xPS/2+TPM	7.1 ALC892
N3350AEL2	N3350	Apollo Lake	2 DDR3SO	Intel HD 500	2 Realtek	1	2	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe+PCIe 1x	LPT+GPIO	7.1 ALC887
H370L2G	8/9th Socket 1151	H370	2 DDR4	Intel UHD 630	2 Intel+11ac WiFi/BT	2	4 R	2 H	4 R+2 H	1 HDMI2.0+1 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
Slim-7000L4	i7-7660u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2-8	1	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
X399x	AMD Ryzen Threadripper	AMD X399	4 DDR4	4 DDR4 DIMM	2 Intel\i211AT	3-4/6/8/10	8 R	4 H	9 R+4 H		3 PCIe 16x	TPM+1xPS/2	7.1 ALC1200
Nano-J1900L2V3	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek		1	2 F+2 H	2 F	1 HDMI+1 VGA	MiniPCIe-F		5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	2-8	1	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
J1900SFP	J1900	Bay Trail	1 DDR3SO	1 DDR3L SO-DIMM	7 intel/F\i211-AT+2 SFP/F		1	3 F			MiniPCIe(Opt)+PCIe 8x	GPIO	5.1 ALC662
Nano-N2807L2	N2807	Bay Trail-u	1 DDR3SO	7th Gen. HD	2 Intel/I211		1	1 R+4 H	1 R	1 HDMI+1 VGA+1 LVDS	2 MiniPCIe	LPT+1xPS/2/H	5.1 ALC662
Nano-J1900L2C2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek		1	3 F+2 H	1 F	1 HDMI+1 VGA	2 MiniPCIe		5.1 ALC662
X-D2123TPL4	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	4 Intel\I350-AM4+1 IPMI	1-8/4	12 R	2 H	2 R	1 VGA	1 PCIe 16x+1 PCIe 8x	TPM	TPM
X-D2123T	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	2 Intel\X557+1 IPMI		8 R	2 H	2 R	1 VGA	1 PCIe 8x+1 OCuLink	TPM	TPM
C242L2	Xeon E-2200 (1151pin)	C242	4 DDR4 128G/2Ch	Aspeed AST2500	2xGbit Intel i210	1xM.2	1x2.5" SATA	2 R+2 H	2 R+3 H	IPMI 2.0	1x16	TPM+GPIO	7.1 ALC892
Q370L2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219LM+1 Intel\i210AT	1-4/8+1-2	5 R	4 H	2 R+2 H	1 DP+1 HDMI+1 DVI	PCIe 16x	TPM	7.1 ALC888
C246L8	Xeon E-2200 (1151pin)	C246	4 DDR4 128G/2Ch	Aspeed AST2500	8xGbit Intel i210	1xM.2	2x3.5"/2.5" SATA	2 R+2 H	2 R+2 H	IPMI 2.0	1x16	TPM	7.1 ALC892
H110L3	6/7th Socket 1151	H110 B150	2 DDR4SO	Intel HD 530 Intel HD 630	3 Realtek	1-4	2	2 R+2 H	4 R	1 DP+1 HDMI+1 eDP/H	PCIe 16x+PCIe 1x	1xPS/2/H+GPIO+LPT	5.1 ALC662
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	1-4	2	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
Z390L2	8/9th Socket 1151	Z390	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	6 R	2 R+2 H	5 R+2 H	2 HDMI+1 DP	PCIe 16x	TPM+1xPS/2	7.1 ALC892
Nano-E310	N3350	Apollo Lake	1 DDR3SO	Intel HD 505 Intel HD 500	1 Realtek	1-4	1			1 HDMI+1 DP			5.1 ALC662
Q370-15HDMI	8/9th Socket 1151 vPro	Q370	2 DDR4SO	2 Radeon 8860	2 Intel\I211AT	1-8/4	1	2 R	1 F+2 R	15 HDMI2.0			5.1 ALC662
H170L8-1U	6/7th Socket 1151	H170	2 DDR4SO	Intel HD 530 Intel HD 630	8 Intel/F\WGI211AT	2-8	1	option 2 R+4 H	2 F+2 H	1 HDMI/H+1 HDMI(Option)	PCIe 8x	1F-Console(RJ45)	1F-Console(RJ45)
Nano-U10L2	i7-10710U	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	1		2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF		GPIO	5.1 ALC662
Nano-N6400D	N6211	Elkhart Lake	0 DDR4OB	10th Gen. UHD	1 Realtek\RTL8111H		1	2 R	2 F	1 DP+1 HDMI	MiniPCIe	1F	CM119B
TRX40-E4T	AMD Socket sTRX4	AMD TRX40	8 DDR4	8 DDR4 DIMM	1 Aquantia	2-6/8+1-3/4/6/8/10	8 R	2 F	6 R+4 F	by Graphics Card	4 PCIe 16x	1xPS/2+TPM	7.1 ALC1220
B8500L6+2SFP	Socket 1150 Haswell	B85	2 DDR3SO	Intel HD 5000	6 intel/F\82574L+2 SFP/F	2-8	1	2 H	2 F	1 VGAH	1 MiniPCIe+PCIe 1x	1 F-Console(RJ45)	USB Audio
Z590L2	10/11th Socket 1200	Z590	2 DDR4	Intel UHD 750	1 Reltek\RTL8125BG+1 Intel\i219V+11ac WiFi/BT	2-8+U2-8	4 R	1 R+2 H	4 R+2 H	1 HDMI+1 DP1.4	PCIe 16x		7.1 ALC897
Nano-U8L2	i5-8259u	Coffee Lake-u Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	1		2F + 2S	2F + 2S	1 HDMI+ 1 DP		GPIO	5.1 ALC662
Nano-U10FL2C/Nano-U10L2C	BGA-1528	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	1		2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF			5.1 ALC662
H410AL2	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	2 Realtek\RT8111H	1		2R	2R+2F	1 HDMI+1DP/VGA		Option: LPT/S	5.1 ALC662
Nano-H510A/Q570A	11th/10th Socket 1200	H510/Q570	2 DDR4	Intel UHD 750	1 Intel\I219LM	2-8		3F	1F	1 HDMI2.0/F+1 DP/F	M.2-2280+M.2-2230	TPM	5.1 ALC662
Slim-H510B/Q570B	i9-11900T	Intel H510	2 DDR4SO	Intel UHD 750	2 Intel I219LM + 1 M.2 2230 + WiFi/BT		1	2 R + 3 F	2 R + 1 F	2 HDMI + 1 DC + 2 Lan			ALC662
Q570x	11th/10th Gen. Socket-S LGA1200	Q370 Express, vPro® Technology	4 DDR4	UHD Graphics	1 Intel i211+1 Intel® i219	2		2 R+2 F+2 H	4 R+2 F+1H	1 HDMI+2 DP+1 VGA	2 PCIe x16, 1 PCI 3.0 x1, PCI	TPM	7.1 Realtek Codec
H570x	11th/10th Gen Socket-S LGA1200	H470 Express	4 DDR4	UHD Graphics	1 Intel i219V	2		2 R+2 H	3 R+4 H	1 HDMI+1 VGA+1 DP	2 PCIe x16, 2 PCIe x1	TPM
H510MXM	11th/10th Socket-S	H510	2 DDR4SO	MXM + UHD 750/630	2 LAN + WiFi/BT	1 M.2 2280		4 F	2 R	HDMI 2.0 + DP 1.2			ALC662 (5.1)
Nano-N6000DL2	N4500	Jasper Lake	Onboard 4GB/8GB DDR4	11th Gen. UHD	2 Gigabit LAN		1	2 R	2F	1 DP + 1 HDMI	MiniPCIe		CM119B
Z690L2	Socket-S 12th Gen	Z690 Express	2 DDR4	UHD 770/730/710	Dual Gigabit LAN + ax WiFi6E					HDMI 2.1 + DP 1.4	PCIe 5.0 x16		ALC897 (7.1)
SwapPC-U8A	i5-8259u	Whiskey Lake-u/Coffee Lake-u	2 DDR4SO	Intel Iris Plus/UHD	2 LAN + SIM	1 M.2 2280		2 R	4 F + 2 R	3 HDMI		TPM	5.1 ALC662
SwapPC-U10S	i7-10710u	Comet Lake-u	2 DDR4SO	Intel UHD 620	2 LAN + SIM	1 M.2 2280		1 F + 2 R	3 F + 2 R	2 HDMI + 1 DP		TPM	5.1 ALC662
SwapPC-U8S	i5-8259u	Whiskey Lake-u/Coffee Lake-u	2 DDR4SO	Intel Iris Plus/UHD	2 LAN + SIM	1 M.2 2280		1 F + 2 R	3 F + 2 R	2 HDMI + 1 DP		TPM	5.1 ALC662
SwapPC-U10A	i7-10710u	Comet Lake-u	2 DDR4SO	Intel UHD 620	2 LAN + SIM	1 M.2 2280		2 R	4 F + 2 R	3 HDMI		TPM	5.1 ALC662
SwapPC-J5005	Pentium J5005	Gemini Lake	2 DDR4SO	Intel UHD 605/600	2 LAN			1 F + 2 R	3 F + 2 R	2 HDMI + 1 DP		TPM	5.1 ALC662
i2312	i7-9750H	QM370/HM370	2 DDR4SO	GTX1650	LAN + WiFi/BT	2 M.2 2280		2 F + 2 H	4 R + 1 H	HDMI2.0+HDMI1.4+Type-C+eDP+HDMI2.0 H			ALC662 (5.1)
SwapPC-H510A	10/11th Socket 1200	H510	2 DDR4SO	Intel UHD 750	2 LAN	1 M.2 2280		3 F + 2 R	1 F + 2 R	3 HDMI + 1 DP		TPM	5.1 ALC662
H670L2	Socket-S 12th Gen	H670 Chipset	2 DDR4, up to 64GB	UHD 770/730/710	2.5GbE LAN + 1GbE LAN, WiFi 6E	2 M.2 2280 NVMe		4 R + 1 H	2 R + 1 H	HDMI 2.1 + DP 1.4	PCIe 5.0 x16		ALC897 (7.1)
i2313	i9-10885H	Comet Lake-u	2 DDR4SO	RTX 2060 + UHD Graphics	LAN + WiFi/BT	1 M.2 2280		2 R	4 R	HDMI 2.0 + HDMI 1.4 + DP 1.2			ALC662 (5.1)
Z690G	Socket-S 12th Gen	Z690 Express	2 DDR5, up to 128GB	UHD 770/730/710	2.5GbE LAN + WiFi 6E	2 M.2 2280 NVMe		1H	5R + 1H	HDMI 2.1 + DP 1.4 + Thunderbolt 4			ALC1220 (7.1)
H610D	Socket-S 12th Gen	H610 Express	2 DDR4, up to 128GB	UHD 770/730/710	Gigabit LAN + ac WiFi/BT	M.2 2280 NVMe		2R + 1H		HDMI 2.1 + DP 1.4	PCIe 4.0 x16		ALC897 (7.1)
H610V	Socket-S 12th Gen	H610 Express	2 DDR4, up to 64GB	UHD 770/730	Gigabit LAN	M.2 2280 NVMe		4R + 2H	2R + 1H	HDMI 2.1 + 2 DP 1.2 + VGA	PCIe 4.0 x16	TPM	7.1 Audio
SwapPC-X39	ARM Cortex-A53	Rockchip 3399 (SOC)	2/4GB LPDDR4	Mali T764	2/3 LAN + WiFi/BT			3 F + 2 R	1 F + 2R	3HDMI+HDMI-In		SIM, TF	ALC662 (5.1)
Z690L2V4	Intel Socket-S LGA1700	Z690 Chipset	2 DDR5	UHD 770/730/710	2 LAN + WiFi 6E	2 M.2 2280		2 H	6 R + 2 H	2 HDMI 2.0 + 2 DP	PCIe 5.0 x16		ALC897 (7.1)
WRX80-E7T	Ryzen Threadripper Pro	WRX80	8 DDR4	SLI Ready	Dual 10GbE + WiFi 6			2 H	8 R + 1 H				Realtek W4080
H410L2	10th Gen. Socket-S	H410	2 DDR4SO	Intel® Gen9.5 Intel® Graphics DX 12*, OGL4.5	2 LAN + Wifi6 AX201 802.11	2		4H	4R	HDMI + DP + VGA	PCIe 3.0 x16		5.1 ALC662
Nano-U12P	12th Gen Core i7/i5/i3	Alder Lake-u	2 DDR4SO	Intel Iris Xe/UHD 12th Gen.	LAN (Option 2.5GbE) + WiFi 6/BT 5.0	1			2 R + 2 F	HDMI 2.1 + DP 1.4 + 2 Thunderbolt 4			HD Audio
H610V3	Alder Lake	H610	2 DDR4SO	UHD 770/730	Realtek® RTL8125B			3 R	2 R	2 HDMI, DP			Realtek® ALC897
H610A	Alder Lake	H610	2 DDR4SO	Intel® 12th Gen Xe Graphics UHD 770/730/710	1 LAN + WiFi/BT	1			4 R	1 HDMI + 1 VGA	1		7.1 ALC897
