Embedded Computer

Nano-J1900D

Bay Trail 4Core Celeron®

10-year Longevity

HDMI+VGA+COM

MiniPCIe WiFi+mSATA

J1900AEL2
Bay Trail 4Core Celeron® IoT Network Security Gateway
10-year Longevity
2 LAN+2 HDMI+COM
Nano-N3350C
Apollo Lake Celeron®
HDMI + Optional VGA
Optional TF + 2 COM
eMMC + M.2 +mSATA
Nano-N6400D
Elkhart Lake Embedded
15-year Longevity
HDMI + DP 2 Display
COM + MiniPCIe 4G-LTE SIM

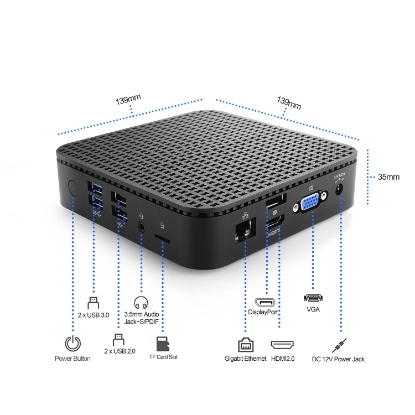

Nano-N4100D
Fanless Gemini Lake
UHD600 4K Graphics HDMI 2.0+DP
6 USB+COM
mSATA+2 M.2+SIM

Small Form Factor Embedded Computer for Appliances

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

J1900L6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	6 Intel	2 R		1 VGAH	MiniPCIe+PCIe 8x		5.1 ALC662
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
Nano-J1900L4	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	4 Intel\WG82573V	2 F+2 H	1 F	1 VGA	MiniPCIe-F	GPIO	5.1 ALC662
H110L2	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
Nano-Z83-4	x5-Z8350	Cherry Trail	DDR3OB	8th Gen. HD	1 Realtek+11ac WiFi/BT	3 F	1 F	1 HDMI+1 miniDP			USB Audio
B150V3	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
Nano-8000A	i5-8250u	Skylake-u Kaby Lake-u/-r	1 DDR4SO	Intel UHD 620	1 Realtek + WiFi+BT	2 R	2 F	1 HDMI+1 Type-C/F			5.1 HDMI
Nano-8000FL2C	i7-8550u	Skylake-uKaby Lake-u/-r	1 DDR4SO	Intel UHD 620 Intel HD 610	1 Realtek+option:1 Realtek	option 2 R+2 H	2 F + 2 R	1 HDMI+1 VGA\DP		GPIO	5.1 HDMI
Nano-N3350C	N3350	Apollo Lake	0 DDR3OB	Intel HD 500	1 Realtek+ WiFi	1 R	4 F	1 HDMI+1 VGA(Option)		SD(Option)	2.1 ALC269
Nano-N4100D	N4000	Gemini Lake	1 DDR4BS	Intel UHD 605	1 Realtek\RTL8111H	2 F+2 R	2 F	1 HDMI2.0+1 DP		PB/F	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
i63F/i63u	i7-8665u	Whiskey Lake-u	2 DDR4SO	Intel UHD 620	1 Intel i219LM/S+1 Realtek RTL8111F/R	2 R+4 S	2 R+4 S	1 HDMI+1 HDMI2.0+1 DP	MiniPCIe	TPM	5.1 ALC662
H410A1	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	1 Reltek\RTL8111F	4R	2R+2F	1 DP + HDMI		LPT/S	5.1 ALC662
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
Q470L2G	11th/10th Socket 1200	Q470	2 DDR4SO	Intel UHD	1 Intel\i219V+1 Intel\i211	4 H	4 R+2 F	1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP)	1 MiniPCIe+1 PCIe 16x	GPIO+TPM	5.1 ALC662
Nano-N6400D	N6211	Elkhart Lake	0 DDR4OB	10th Gen. UHD	1 Realtek\RTL8111H	2 R	2 F	1 DP+1 HDMI	MiniPCIe	1F	CM119B
Nano-U10F	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H	2 F	2 F + 2 R	1 HDMI+1 DP			2.1 ALC269
Nano-U10FL2C/Nano-U10L2C	BGA-1528	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF			5.1 ALC662
H410AL2	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	2 Realtek\RT8111H	2R	2R+2F	1 HDMI+1DP/VGA		Option: LPT/S	5.1 ALC662
Nano-J1900D	J1900	Bay Trail		7th Gen. HD	1 Realtek	3F+2R	1F	1 HDMI+1 VGA	MiniPCIe-F+MiniPCIe-H	TF	5.1 ALC662
Nano-U11B	i7-1185G7	Tiger Lake-u	2 DDR4SO	Intel UHD	LAN + WiFi/BT + 5G/4G-LTE	2F	4(3.1)R	2HDMI + DP+Thunderbolt4			CJC6811A
Nano-H510A/Q570A	11th/10th Socket 1200	H510/Q570	2 DDR4	Intel UHD 750	1 Intel\I219LM	3F	1F	1 HDMI2.0/F+1 DP/F	M.2-2280+M.2-2230	TPM	5.1 ALC662
i63C / i65C	10th/8th Gen. u-Series	Comet Lake-u/Whiskey Lake-u SOC	2 DDR4SO	10th/8th Gen. UHD Graphics	Intel® i219+Realtek® RTL8111H w/ SIM		4 R+2F	1 HDMI 2.0+1 HDMI 1.4+1 DP 1.2	MiniPCIe		5.1 ALC662
Nano-N3350DL2	N3350	Apollo Lake	DDR3L	Intel HD 500	Realtek RTL8111F	2	2	1HDMI + 1 DP + 1 COM			HD Sound via HDMI
Nano-U10C	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H		2 F +2 R	HDMI+DP+Type-C			2.1 ALC269
Nano-N6000DL2	N4500	Jasper Lake	Onboard 4GB/8GB DDR4	11th Gen. UHD	2 Gigabit LAN	2 R	2F	1 DP + 1 HDMI	MiniPCIe		CM119B
SwapPC-H510A	10/11th Socket 1200	H510	2 DDR4SO	Intel UHD 750	2 LAN	3 F + 2 R	1 F + 2 R	3 HDMI + 1 DP		TPM	5.1 ALC662
Nano-N6400G
Nano-N6400L2C4	10th Gen Celeron/Pentium	Elkhart Platform (SOC)	DDR4 SODIMM	10th Gen UHD	2 2.5GbE LAN + 5G/4G	1 R	3 R	HDMI 2.0 + DP 1.2		4 COM	HD
Nano-U10L2C-i3	i7-10510u	Comet Lake-u/Option Whiskey Lake	2 DDR4SO	Intel UHD 620	2 Realtek+ M.2			1 HDMI+1 DP	2 M.2	•1 COM + Type-C + SD/MMC Card reader
Nano-J6412L2-RS485	Celeron J Series	Elkhart Lake	2 DDR4 SO	10th Gen. UHD Graphics	2 GbE LAN		4	DP 1.2+HDMI 2.0	M.2-4G/5G, 2 COM		HD Audio
Nuc-U10c	i7-10510u	Comet Lake-u (SOC)	2 DDR4 SO-DIMM	Intel® UHD	Intel® i225		1F+2R	HDMI+MiniDP+Type-C	M.2 2230 + SATA HDD
NUC-U11L2	11th Gen. Tiger Lake	Intel® Tiger Lake (SOC)	2 DDR4	Intel® UHD Graphics	2 Intel® Gigabit			1 Mini-DP+1 HDMI	PCIe, M.2
Nano-J6412L2C2	J6412	Elkhart Platform (SOC)	DDR4 SODIMM	10th Gen UHD	2 2.5GbE LAN + 5G/4G			HDMI+VGA		2 COM
Nano-J6412C	Celeron/Pentium	Elkhart Lake	2 LPDDR4X	10th Gen. UHD Graphics	Gigabit LAN	5	3	DP + HDMI 2.0	M.2-WiFi/BT, M.2-5G/4G		ALC897 HD
Nano-N305L2C2	Alder Lake-N series	Alder Lake-N SOC	1 x DDR4 SO-DIMM	12th Gen UHD	2 Gigabit LAN	2	4	HDMI 2.0 +DP		2 COM	ALC897 HD Audio
NUC-U14L2V4c	Intel Core Ultra	Meteor Lake	2 DDR5 SO	Intel Arc Graphics	2 2.5G LAN	2	2	HDMI + DP+ 2 Type-C	WiFi6+BT5.2		HD Audio
H510L2	10th/11th Gen Socket-S	Intel H510			2 Gigabit/2.5G LAN	4	4	6xRS232/485	M.2 Wifi/BT
Nano-N305L2V2c	12th Gen N series	Alder Lake-N	1 x DDR4 SO-DIMM	12th Gen. UHD	2 Gigabit LAN	1	3	HDMI + DP			ALC897 HD
Nano-J6412L2C2V3	J6412	Elkhart Lake	DDR4	10th Gen UHD	LAN+WiFi	2	2	DP + HDMI
