U11FL2 / U11L2
11th Gen. Tiger Lake
Iris® Xe 8K GPU 4 Display
2HDMI 2.0+2DP 1.4
2LAN RS232/RS485+SIM
0 items
You have no items in your shopping cart.
Close
- Home
- Products
- Categories
- back
- Embedded-Longevity
- Core-i9/i7/i5/i3 PCs
- N/J/E Celeron/Pentium
- ARM/Android
- Xeon-D/E and C3000
- AMD/Nvidia GPU
- Multi-display PCs
- Multi-LAN PCs
- PC w/COM for POS
- Mini PC with Slot
- Slim 10/138/140d series
- Digital Signage
- Nano/NUC Tiny PCs
- Network Security Systems
- High-end Gaming
- Low Cost PCs
- Fanless Systems
- q-series vpro pcs
- Edge AI PCs
- Medical/Healthcare Products
- Linux PC for IoT
- Old Products
- Solutions
- Specials
- Contact Us
Menu
- Home
- Products
- Categories
- back
- Embedded-Longevity
- Core-i9/i7/i5/i3 PCs
- N/J/E Celeron/Pentium
- ARM/Android
- Xeon-D/E and C3000
- AMD/Nvidia GPU
- Multi-display PCs
- Multi-LAN PCs
- PC w/COM for POS
- Mini PC with Slot
- Slim 10/138/140d series
- Digital Signage
- Nano/NUC Tiny PCs
- Network Security Systems
- High-end Gaming
- Low Cost PCs
- Fanless Systems
- q-series vpro pcs
- Edge AI PCs
- Medical/Healthcare Products
- Linux PC for IoT
- Old Products
- Solutions
- Specials
- Contact Us
Menu
Shopping cart
Filters
Personal menu
Preferences
Search
Fanless Systems
i63F/i63u
1" Slim Fanless 8th Gen.
UHD620 4K GPU 3 Display
2HDMI+DP + COM
2M.2+MiniPCIe+SIM
Nano-8000FL
8th Gen. Kaby Lake-R
UHD620 4K GPU 2 Display
2LAN+2COM SATA+M.2
M.2 WiFi+MiniPCIe+SIM
Nano-U10FL2
10th Gen. Comet Lake-u
UHD620 4K GPU 2 Display
2LAN+COM SATA+M.2
6 USB + Type-C USB + TF
Nano-U11FB
11th Gen. Tiger Lake
Iris® Xe 8K GPU 4 Display
2HDMI 2.0+DP+Type-C
ThunderBolt®+COM+SIM
Nano-U10F
10th Gen. Comet Lake-u
UHD620 4K GPU 2 Display
SATA+M.2 NVMe SSD
6 USB + Type-C USB
Nano-U10C
10th Gen. Comet Lake-u
UHD620 4K Graphics Dual Displays
SATA+M.2 NVMe SSD
6 USB + Type-C
Nano-N3350D
Fanless Embedded
10-year Longevity
Apollo Lake Celeron®
HD500 GPU DP+HDMI
Nano-N3350DL2
Fanless Embedded 10-year Longevity
Apollo Lake Celeron®
HD500 Graphics DP+HDMI
Dual LAN
Nano-N4100D
UHD600 4K Graphics
HDMI+DP 2 Display
Fanless Gemini Lake
6 USB + COM + TF Reader
| Model | Processor | Chipset | Memory | Graphics | Network | M.2 | MSata | USB2.0 | USB3.0 | Ports | Expansion | OtherIO | Audio |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Q470L2G | 11th/10th Socket 1200 | Q470 | 2 DDR4SO | Intel UHD | 1 Intel\i219V+1 Intel\i211 | 2-8 | 2 | 4 H | 4 R+2 F | 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) | 1 MiniPCIe+1 PCIe 16x | GPIO+TPM | 5.1 ALC662 |
| Nano-7200L2/6100L2 | i3-6100u | Skylake-u Kaby Lake-u | 1 DDR4SO | Intel HD 520 | 2 Realtek | 1 | 1 | 2 R+1 H | 4 F | 1 HDMI+1 DP | MiniPCIe | 5.1 ALC662 | |
| i5-6267FL | i5-6267u | Skylake-u | 2 DDR3SO | Intel Iris 550 | 1 Realtek\RTL8111F | 1-4 | 1 | 2 R+4 H | 2 R+2 H | 1 HDMI+1 VGA+1 LVDS | 1xPS/2+LPT+GPIO | 5.1 ALC662 | |
| i59F | i5-6200u | Skylake-u | 2 DDR4SO | Intel HD 510 | 1 Intel\i219LM+1 Realtek\RTL8111F | 2-8 | 1 | 2 R | 2 R+2 S | 2 DP+1 VGA | 2 MiniPCIe | TPM | 5.1 ALC662 |
| Nano-6200D | i5-6200u | Skylake-u | 1 DDR4SO | Intel HD 520 | 1 Realtek | 1 | 1 | 2 F | 4 F | 1 HDMI+1 DP | 5.1 ALC662 | ||
| Nano-3855L2 | 3855u | Skylake-u Kaby Lake-u | 1 DDR4SO | Intel HD 520 | 1 Intel\i219LM+option:1 Realtek\RTL8111F | 1 | 1 | option 2 R+2 F+2 H | 2 F | 1 HDMI+1 VGA | 1xPS/2+GPIO+TPM | 5.1 ALC662 | |
| Nano-N3450G | N3450 | Apollo Lake | 0 DDR3OB | Intel HD 500 | 1 Realtek+11ac WiFi/BT | 1 | 2 R | 2 F | 1 HDMI+1 DP | 5.1 ALC662 | |||
| Nano-N3450L2/J3455L2 | N3350 | Apollo Lake | 1 DDR3SO | Intel HD 500 | 2 Realtek | 1 | 2 F | 4 F | 2 HDMI+1 VGA | MiniPCIe | 5.1 ALC662 | ||
| Nano-N3350L2 | N3350 | Apollo Lake | 0 DDR3OB | Intel HD 500 Intel HD 505 | 2 Realtek | 1 | 2 S | 4 S | 1 HDMI+1 DP+1 LVDS | SD(Option) | 2.1 ALC269 | ||
| Nano-N3350C | N3350 | Apollo Lake | 0 DDR3OB | Intel HD 500 | 1 Realtek+ WiFi | 1 | 1 | 1 R | 4 F | 1 HDMI+1 VGA(Option) | SD(Option) | 2.1 ALC269 | |
| N4200AEL2 | N4200 | Apollo Lake | 2 DDR3SO | Intel HD 505 | 2 Intel\i211AT | 1 | 5 R | 4 R | 1 HDMI+2 DP+1 LVDS | MiniPCIe+PCIe 1x | GPIO+TPM | 5.1 ALC662 | |
| i41F | N3150 | Braswell-u | 2 DDR3SO | 8th Gen. HD | 2 Realtek | 1 | 2 R | 3 R | 1 DP+1 HDMI | 2 MiniPCIe | TPM | 5.1 ALC662 | |
| Nano-N2807L2 | N2807 | Bay Trail-u | 1 DDR3SO | 7th Gen. HD | 2 Intel/I211 | 1 | 1 R+4 H | 1 R | 1 HDMI+1 VGA+1 LVDS | 2 MiniPCIe | LPT+1xPS/2/H | 5.1 ALC662 | |
| Nano-N2807 | N2807 | Bay Trail-u | 1 DDR3SO | 7th Gen. HD | 1 Realtek | 1 | 2 F | 1 F | 1 HDMI | 2 MiniPCIe | 5.1 ALC662 | ||
| J4005AE/J4105AE | J4005 | Gemini Lake | 2 DDR4SO | Intel UHD 600 | 1 Realtek | 1 | 1 | 3 R+4 H | 2 R | 1 HDMI+1 DP+1 eDP+1 LVDS | PCIe 2x | GPIO | 5.1 ALC662 |
| J1900L6 | J1900 | Bay Trail | 1 DDR3SO | 7th Gen. HD | 6 Intel | 1 | 2 R | 1 VGAH | MiniPCIe+PCIe 8x | 5.1 ALC662 | |||
| Nano-J1900L2 | J1900 | Bay Trail | 1 DDR3SO | 7th Gen. HD | 2 Realtek | 1 | 2 R+2 H | 2 F | 1 HDMI+1 VGA | MiniPCIe-F | 5.1 ALC662 | ||
| Nano-U8FL2C6 | i7-8565U | Whiskey Lake-u | 2 DDR4SO | Intel UHD 620/610 | 2 x Intel® i211A+i219LM | 1 | 1 | 4H | 4(USB3.1)R | 1 HDMI+1DP+1LVDS/eDP | optional; x8 | GPIO, TPM, SPI | 5.1 ALC662 |
| J1900AEL2 | J1900 | Bay Trail | 1 DDR3SO | 7th Gen. HD | 2 Realtek\RTL8111F | 1 | 2 R+2 H | 1 R | 2 HDMI+1 VGAH+1 LVDS/H | MiniPCIe-F+PCIe 1x | GPIO | 5.1 ALC662 7.1 ALC892 | |
| J1900AC6 | J1900 | Bay Trail | 1 DDR3SO | 7th Gen. HD | 1 Realtek | 1 | 3 R+1 F+2 H | 1 R | 1 HDMI+1 VGA+1 LVDS/H | MiniPCIe-F | TPM+1xPS/2/H | 5.1 ALC662 | |
| Z83N | x5-Z8350 | Cherry Trail | 0 DDR3OB | 8th Gen. HD | 1 Realtek\RTL8111GS-CG+11ac WiFi/BT | 3 F | 1 F | 1 HDMI+1 miniDP | MiniPCIe | ALC5645-CGT | |||
| Nano-Z83E | x5-Z8350 | Cherry Trail | 0 DDR3OB | 8th Gen. HD | 1 RJ45+11ac WiFi/BT | 1 R+4 H | 1 R | 1 HDMI+1 LVDS/H | MiniPCIe | GPIO | CM119B | ||
| C3758L4/C3758T | C3758 | Denverton | 4 DDR4 | Aspeed AST2400 | 4 Intel+1 IPMI | 2 | 12 | 2 R | 1 H | 1 VGA | PCIe 4x | TPM | option |
| C3558L4 | Atom-C (BGA-1310) | Denverton C3000 | 4 DDR4 256G/2Ch | Aspeed AST2400 | 4x1Gbit Intel LAN | 1xM.2 | 1x2.5" SATA | 2 R | 1 H | IPMI 2.0 (AST2400) | 1x4 3.0 | TPM | option |

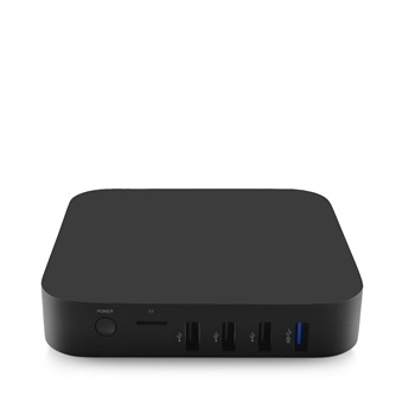

| X39 | RK3399 | RK3399 | 0 DDR4OB | Mali T860 | 1 RJ45+11ac WiFi+BT 4.1 | 3 S | 1 S | 1 HDMI2.0+1 Type-C | IR/F+PI/F+PB/S | 5.1 HDMI | |||

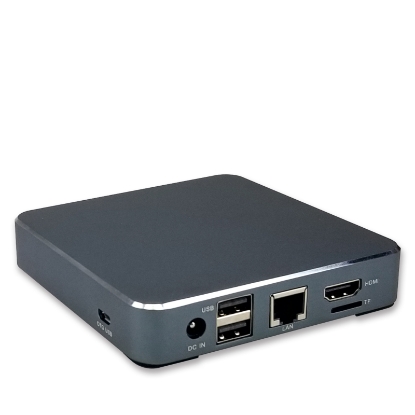

| X10-mini | RK3368 | RK3368 | 0 DDR3OB | PowerVR G6110 | 1 RJ45(100M)+11n WiFi+BT 4.1 | 2 | 1 HDMI2.0 | 1 MiniPCIe | ES8323S | ||||

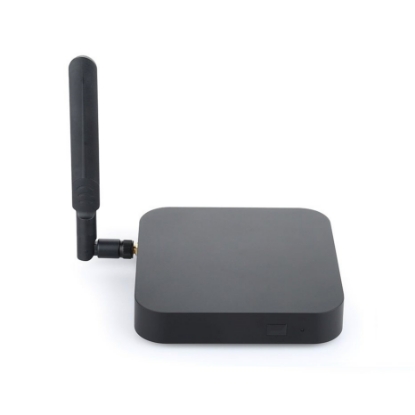

| X10 | RK3368 | RK3368 | 0 DDR3OB | PowerVR G6110 | 1 RJ45+11ac WiFi+BT 4.1 | 3 | 1 HDMI2.0 | 5.1 HDMI | |||||
| X9-2HDMI | RK3288 | RK3288 | 0 DDR3OB | 4 Core Mali-T7 | 1 RJ45+11ac WiFi+BT 4.1 | 3 | 1 HDMI2.0+1 HDMI | 1 MiniPCIe | ES8323S | ||||
| X9-IN | RK3288 | RK3288 | 0 DDR3OB | 4 Core Mali-T7 | 1 RJ45+11ac WiFi+BT 4.0 | 2 R+1 F | 1 HDMI2.0 | ES8323S | |||||
| X9 | RK3288 | RK3288 | 0 DDR3OB | 4 Core Mali-T7 | 1 RJ45+11ac WiFi+BT 4.0 | 3 | 1 HDMI2.0 | 5.1 HDMI | |||||
| X35 | ARM Cortex-A55 | RK3288 | 2/4GB Onboard DDR4 | Mali-G52-2EE | 1 RJ45+11ax WiFi6+BT 5.0 | 2 S + MicroUSB | 1 S | HDMI 2.0 | TF Card reader | RK809 HD + S/PDIF | |||
| X8-mini | RK3328 | RK3328 | 0 DDR3OB | 4 Core Mali-450 | 1 RJ45(100M)+11n WiFi+BT 4.1 | 2 | 1 S | 1 HDMI2.0 | ES8323S | ||||
| T5-mini | S905 | S905 | 0 DDR3OB | Mail-G31 | 1 RJ45+11ac WiFi+BT 4.2 | 1 R | 1 R | 1 HDMI2.0 | 5.1 HDMI | ||||
| Nano-E310 | N3350 | Apollo Lake | 1 DDR3SO | Intel HD 505 Intel HD 500 | 1 Realtek | 1-4 | 1 | 1 HDMI+1 DP | 5.1 ALC662 | ||||

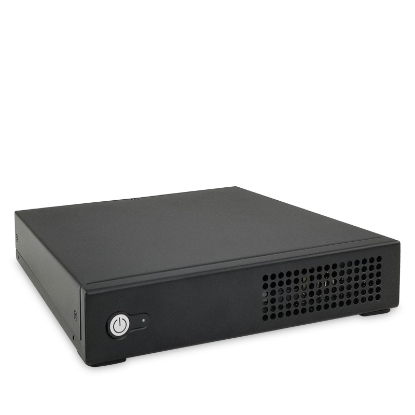

| U8A1 / U10A1 | i5-10210u/i5-8259u | Comet Lake-u/Coffee Lake-u Platform SOC | 2 DDR4SO | UHD 650/Iris Plus 655 | 1 | 2 H | 4 R | HDMI+VGA/DP+LVDS/H | 7.1 ALC897 | ||||
| Slim-7000e4 | i7-7500u | Kaby Lake-u Skylake-u | 1 DDR4SO | 7th Gen. HD | 1 Realtek/F\RTL8111F | 1-8/4 | 4 R | 6 R | 2 HDMI/F | 4 MiniPCIe | GPIO | 5.1 ALC662 | |
| i5-6200FL2 | i5-6200u | Skylake-u | 2 DDR3SO | Intel HD 520 | 2 Realtek | 2-8 | 1 | 2 H | 2 R+2 H | 1 HDMI+1 DVI | 2 MiniPCIe | 5.1 ALC662 | |
| i5-6200L2B | i5-6200u | Skylake-u | 2 DDR3SO | Intel HD 520 | 2 Realtek | 2-8 | 1 | 2 H | 2 R+2 H | 2 HDMI | 2 MiniPCIe | 5.1 ALC662 | |
| i5-6200SL | i5-6200u | Skylake-u | 2 DDR3SO | Intel HD 520 | 1 Realtek | 2-8 | 1 | 2 R+2 H | 2 R+2 H | 1 HDMI+1 DVI | 2 MiniPCIe | 5.1 ALC662 | |

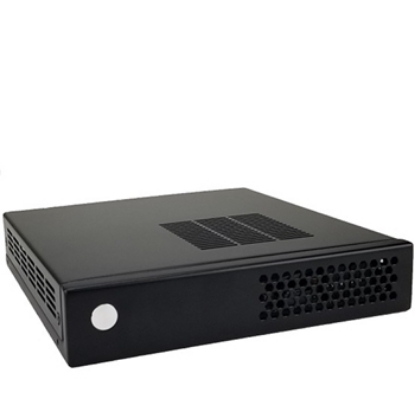

| Slim-7000AEL2 | i5-7200u | Kaby Lake-u | 1 DDR4SO | Integrated | 2 Realtek\RTL8111F | 1-4 | 2 | 4 H | 4 R | 1 DP+1 HDMI+1 eDP/H\LVDS | PCIe 4x | GPIO+LPT | 5.1 ALC662 |
| i63C / i65C | 10th/8th Gen. u-Series | Comet Lake-u/Whiskey Lake-u SOC | 2 DDR4SO | 10th/8th Gen. UHD Graphics | Intel® i219+Realtek® RTL8111H w/ SIM | 1 | 4 R+2F | 1 HDMI 2.0+1 HDMI 1.4+1 DP 1.2 | MiniPCIe | 5.1 ALC662 | |||
| i63B / i65B | i3-8145U | Whiskey Lake-u Coffee Lake-u | 2 DDR4SO | Intel UHD 620 Intel Iris 655 | 1 Realtek\RTL8111H | 1 | 1 | 5 S | 5 S | 1 HDMI+1 HDMI2.0+1 DP | MiniPCIe | 5.1 ALC662 | |
| i61B | i5-7200u | Kaby Lake-u | 2 DDR3SO | Intel HD 520 | 1 Intel | 1 | 1 | 2 F | 2 F | 1 HDMI+1 DP | 2 MiniPCIe | 5.1 ALC662 | |
| NUC-8000 | i7-8565u | Whiskey Lake-u ITE 8528 | 2 DDR4SO | Intel UHD 620 | 1 Realtek\RTL8111F | 1 | 1 | 2 F | 2 R+2 F | 1 HDMI+1 DP | 2.1 ALC269+5.1 HDMI |
