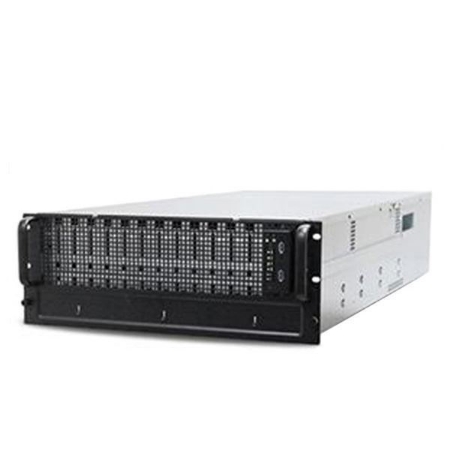

    PolyStor 4060A

    4U 60 Hot-Swap HD, up to 600TB Quad LAN, RAID 5, 6, 10, 50, 60

    Featured Highlights

    Dimensions: 19(W)x37.5(D)x7(H) inch
    Dual Intel® Xeon E5-2600 Processors
    60 x 3.5'' and up to 6x 2.5'' Hot Swap Bay
    Intel® Quad GigaLAN or 10Gbit LAN, Fibre Channel supported
    4-Channel ECC Memory per processor
    Hardware RAID Acceleration Controller
    1890W 3+1 Redundant Power Supply

    OS: Windows Server 2012, 2008, 2000, Solaris, Linux, FreeBSD, NAS: OpenFiler, FreeNAS

    Application: Data Centers, Enterprise Archiving, or Cloud Storage.



    Call for pricing(800-999-1278)
    SKU: PolyStor 4060A

    Product specifications
    Processor
    • Dual Intel® Xeon™ Processor E5-2600 / E5-2600 v2 Series
    • Option: Intel® Xeon™ Processor E5-2600 v3 Series
    Memory
    • 16 x DIMM Sockets
    • Quad-Channel ECC DDR3 system memory
    • Option: DDR4 ECC memory with E5-2600v3 SKUs
    OS and Storage Manager
    • Linux OS and NAS/iSCSI WEB based Manager
    • Optional: Solaris, Windows Server, MS Storage Server, VMware, FreeBSD, Other Open Soruce Linux.
    File System
    • XFS, EXT3 standard
    • Optional: ZFS, NTFS, or any file system supported by the x86 platform
    Network I/O
    • 4 Gigabit LAN ports
    • Optional: Additional 4 or 8 Gigabit LAN, 10Gbit Ethernet, Fibre Channel for SAN (can be mixed)
    • 56Gbit FDR or 40Gbit QDR Infiniband
    Network Service
    • DHCP client/server (default is DHCP client/static)
    • Network Protocol: CIFS/SMB, NFS, FTP
    • iSCSI / NAS / SAN (Can be mixed)
    Storage
    • 60 x 3.5" Hot-swap SAS/SATA and up to 6 x 2.5" How-swap drive bays
    • Supports SAS-2, SAS, SATA-3, SATA-2 Hard Drive or SSD
    • Hardware Accelerated RAID Controller
    • Supports RAID 0, 1, 5, 6, 10, 50, 60 with hot spare drives
    • Supports 3.5" or 2.5" hard drive
    • Supports 2.5" SSD
    • Supports PCIe SSD Module
    Management Interface
    • Web GUI
    • E-mail notification
    • Local Host Access via VGA and Keyboard
    Remote Boot Function
    • Requires NIC with PXE support on client
    Expansion
    • Up to 6 x PCIe 3.0 8x slots (full height, full length)
    File Sharing
    • Authorizes users to access shared folder using passwords (by default, there is one "Public" shared folder)
    Access Control
    • Allows users to access shared files for "Read Only" or "Read/Write"
    I/O
    • 4x USB 2.0 rear connectors
    • VGA graphics
    • 2 x SATA-6G/s, 4 SATA-3G/s SATA port, optional SAS ports supported
    • Optional: 2 additional I/O (such as COM, PS/2, TPM) supported by header or add-on
    Client Support
    • MS Windows® 8, 7, XP and Windows Server, Linux , FreeBSD, Solaris and Mac
    • Snap Shot Backup and Recovery Client Support
    • Active Directory, Rsync are supported
    Remote Controls
    • Power on/off, system reset + USB
    • IPMI, KVM over IP, Remote Power On/Off is supported
    Indicators
    • Power, LAN and HDD LEDs
    Cooling
    • Rear: 9 x 40 x 56mm hot-swap fans for HDD Bays + 4 x 60 x 38mm fans for MB
    Power Supply
    • 1890W 3+1 redundant power supply (4 x modules) UR/FCC/CE Certified
    Operating Temperature
    • From 0 °C to 40 °C (32°F to 104 °F)
    Non-Operating Temperature
    • From 0 °C to 40 °C (32°F to 104 °F)
    Operating Humidity
    • From 10% to 90% relative humidity
    EMI Safety
    • CE/FCC
    Dimensions
    • 4U Rackmount Chassis
    • Dimensions: 19" W x 7" H x 37.5" D
    • Weight: 200 lb.
    Warranty
    • SAS and SATA-E Hard Driver carry 5 year,SATA-N carries 3 year
    • Base system:3 year standard parts and depot labor;lifetime toll free phone support.
    • Optional:3 or 5-year(total years) extended warranty with advanced parts replacement service.
    • Optional:7+year extended warranty service available.
    • On-site service is available with additional cost.
