High Performance EPYC Server

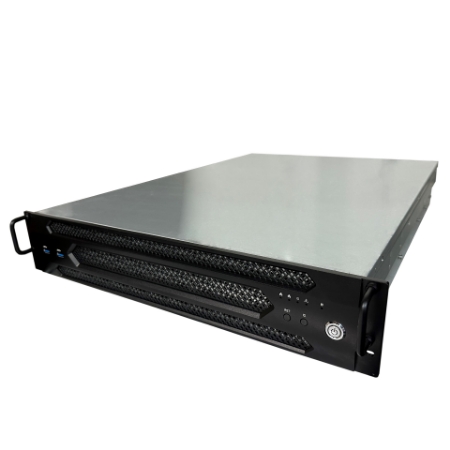

2U-E7300C - 2U Short AMD® EPYC™ Compute Server

AMD® EPYC™ Compute Server, 2P 5 PCIe + OCP, 2x10GbE 32 DIMM, Titanium CRPS

Key Features:

• Dual Socket SP3 (LGA4094), support AMD® EPYC™ 7003
and 7002 Processors

• 16+16 (32) DIMM slots (2DPC), supports RDIMM, LRDIMM,
RDIMM/LRDIMM-3DS up to 8TB 16-Channel Memory

• 2 x M.2-22110/2280 PCIe 4.0 x4 NVMe SSD
• 4 x HH HL PCIe 4.0 x16, 1 x HH HL PCIe 4.0 x8 Slots
• 2 x 10Gbit LAN, 1 x OCP NIC 3.0 Slot (PCIe 4.0 x16)
• Remote management (IPMI 2.0)
• For Virtual Server, Compute Server, Database Server, Cloud

SKU: 2U-E7300C
Product specifications
Processor

• Dual Socket SP3 (LGA4094)
• Support AMD® EPYC™ 7003 and
7002 Series Processors

Chipset

• AMD SoC

Memory

• 16+16 (32) DIMM slots (2DPC)
• Supports DDR4 288-pin RDIMM, LRDIMM
• RDIMM/LRDIMM-3DS, 8 Channel per CPU, 1.2V Memory voltage, up to 8TB Capacity
• RDIMM/ LRDIMM: max. 3200MHz

Storage

• 2 x M.2-22110/2280 PCIe 4.0 x4
• Optional Marvell 9235 4 x SATA-6Gb/s
• Optional 2 x SFF-8654 for (4) NVMe

Network

• 2 x 10Gbit RJ45 Ethernet Intel X550-AT2

Expansion Slot

• Supports Up to 5 RISER Slots HH HL, 4 HH HL x16, 1 HH HL x8 [CPU1] [CPU2] (rear), 1 x OCP NIC 3.0 (x16) [CPU1]

Graphics

• ASPEED AST2500: 1 DB15, 1 (15-pin header)

I/O

• 2 x USB 3.1 (Rear), 2 USB 3.1 (Front)
• 2 x Serial Port Headers
• 2 x RJ45 10GbE LAN Ports
• 1 x RJ45 IPMI 2.0 Port
• 1 x DB15 VGA Port

Chassis

• 2U Rackmount with Front HDD LED
• 6 x  2U Cooling Fans
• Dimension: 3.43" H x 17.26" W x 25" D

Power Supply

• 2 x CRPS Hot Swap P/S 1+1 2000W Titanium Redundant



OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment

• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
