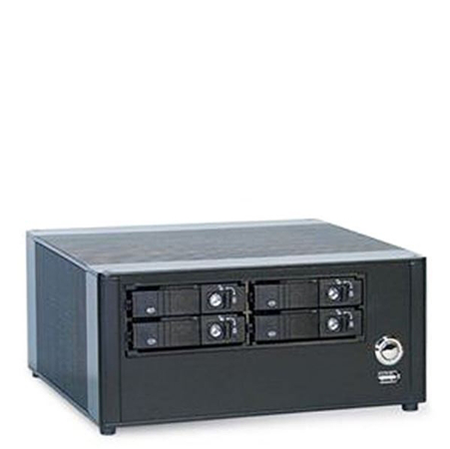

500S/500D with 5.25" Bay

D=5.25" Blur-Ray or Swap 3.5" Bay

Featured Highlights
	Dimensions: 8.1"(W) x 8.1"(D) x 3.5"(H) 205.74(W) x 205.74(D) x 88.9(H) mm
	1x 2.5”, 1 x 5.25" Blur-Ray or Swap 3.5" Bay,
	RISER or Low-profile Slot
	DC6V-24V Power input
	Color: Black (Custom colors available with special order)
	Supports VESA/Wall-mount or 2U Rackmount
	Applications: Vehicle/Boat PC, Set Top Box, Digital Signage, Network Appliance, Traffic Control, Kiosk, POS, Surveillance.

SKU: 500D

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	M.2	MSata	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio
10A-N2600Q	N2600	NM10	2 DDR3SO	Intel HD 3600	1 Realtek		1	3 R+2 H		1 HDMI+1 VGA+1 LVDS	PCIe 1x		5.1 ALC662
N2600-300R	N2600	NM10	2 DDR3SO	Intel HD 3600	1 Realtek\RTL8111E		1	3 R+1 F+2 H		1 HDMI+1 VGA	2 MiniPCIe+PCIe 1x	1xPS/2	5.1 ALC662
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek		1	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F		1	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
J1900S6	J1900	Bay Trail	2 DDR3SO	7th Gen. HD	2 Intel		1	1 R	1 R	1 HDMI+1 DP+1 VGA	MiniPCIe+PCIe 8x	TPM	7.1 ALC888
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek		1	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
J4125/J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1-4/8	1	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
J5040/J4125AE	J4005	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek	1	1	3 R+4 H	2 R	1 HDMI+1 DP+1 eDP+1 LVDS	PCIe 2x	GPIO	5.1 ALC662
J5005E/J4105E	J5005	Gemini Lake	2 DDR4SO	Intel UHD 605	1 Realtek\RTL8111H		4	2 R+3 H	2 R+2 H	1 HDMI+1 DVI+1 VGA	PCIe 1x	2xPS/2	7.1 ALC892
Slim-7000L4	i7-7660u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2-8	1	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	1-4	2	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	2	1	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
Slim-3865L4	3865u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2-8	1	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	1	3 R	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	1	3 R	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	2-8	1	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	2-8	1	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	1-4/8	4	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
Q370L2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219LM+1 Intel\i210AT	1-4/8+1-2	5 R	4 H	2 R+2 H	1 DP+1 HDMI+1 DVI	PCIe 16x	TPM	7.1 ALC888
H470L2G	11th/10th Socket 1200	H470	2 DDR4	Integrated	2 Intel+11ac WiFi/BT	2-6/8	4 R	1 H	4 R+1 H	2 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
H110L2	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2-8	1	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
H110AEL2/i1000A12	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Intel\i219V+1 Intel\i211AT	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH	MiniPCIe+PCIe 4x	GPIO	7.1 ALC887
H110L2V	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek\RTL8111H	2-8	1	2 R+4 H	4 R	2 DP+1 VGA+1 HDMI/H	MiniPCIe+PCIe 16x		5.1 ALC662
H110L3	6/7th Socket 1151	H110 B150	2 DDR4SO	Intel HD 530 Intel HD 630	3 Realtek	1-4	2	2 R+2 H	4 R	1 DP+1 HDMI+1 eDP/H	PCIe 16x+PCIe 1x	1xPS/2/H+GPIO+LPT	5.1 ALC662
H110L2A/i1000A13	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2-8	1	6 H	2 R	1 HDMI+1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H110L2C12	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2-8	1	2 R+2 H	4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
Q170A	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
Q170L2	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	1	5 R	4 H	4 R+2 H	1 DP+1 HDMI+1 DVI	MiniPCIe+PCIe 16x	GPIO+TPM	7.1 ALC888
B150V3	6/7th Socket 1151	B150	2 DDR4	Intel HD 530 Intel HD 630	1 Realtek\RTL8111H	2-8	1	2 R+4 H	4 R	2 DP+1 HDMI	MiniPCIe+PCIe 16x		5.1 ALC662
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	2-8	1	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
H310G	8/9th Socket 1151	H310	2 DDR4	Intel UHD 630	1 Intel\i219V+11ac WiFi/BT	1	4	2 R+2 H	2 R+2 H	1 DP+1 HDMI+1 DVI	PCIe 16x	1xPS/2	7.1 ALC887
B360L2	8/9th Socket 1151	B360	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	4	2 R+2 H	4 R+2 H	2 HDMI	PCIe 16x	1xPS/2	7.1 ALC887
Z590L2	10/11th Socket 1200	Z590	2 DDR4	Intel UHD 750	1 Reltek\RTL8125BG+1 Intel\i219V+11ac WiFi/BT	2-8+U2-8	4 R	1 R+2 H	4 R+2 H	1 HDMI+1 DP1.4	PCIe 16x		7.1 ALC897
C246L2	Xeon E-2200 (1151pin)	C246	4 DDR4 128G/2Ch	Intel UHD P630	2xGbit Intel i210	1xM.2	1x2.5" SATA	2 R	4 R+2 H	IPMI 2.0	1x16	6H	7.1 ALC892
C242L2	Xeon E-2200 (1151pin)	C242	4 DDR4 128G/2Ch	Aspeed AST2500	2xGbit Intel i210	1xM.2	1x2.5" SATA	2 R+2 H	2 R+3 H	IPMI 2.0	1x16	TPM+GPIO	7.1 ALC892
C236FL2	Xeon Socket-S 1151pin	C236	2 DDR4	Intel HD	2 RJ45	1-8/4	1	4 F+4 R	4 F+4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+2 PCIe 8x+2 PCI	2 MXM3.0	5.1 ALC662
X570E	Socket AM4 Ryzen 3rd	AMD X570	2 DDR4	Radeon Vega	1 Intel\i211AT	2-6/8	4 R	2 H	4 R+2 H	1 DP+2 HDMI2.0	PCIe 16x		7.1 ALC1220
B550G	Socket AM4 Ryzen 3rd w/o G-Series	AMD B550	2 DDR4	Radeon Vega	1 Realtek	2-8	4 R	1 H	5 R+1 H	2 HDMI2.1+1 DP1.4	1 PCIe 16x	TPM	7.1 ALC1120
B450G	Socket AM4 Ryzen 2nd	AMD B450	2 DDR4	Integrated	1 Realtek	1	4 R	2 R+1 H	2 R+1 H	1 HDMI+1 DP	PCIe 16x	1xPS/2	7.1 ALC1220
C3558L4	Atom-C (BGA-1310)	Denverton C3000	4 DDR4 256G/2Ch	Aspeed AST2400	4x1Gbit Intel LAN	1xM.2	1x2.5" SATA	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
C3758L4/C3758T	C3758	Denverton	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	2	12	2 R	1 H	1 VGA	PCIe 4x	TPM	option
C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	1xM.2	1x2.5" SATA	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
X-D1540L2	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	2 Intel	1	6	4 H	2 R	1 VGA	PCIe 16x	TPM	option
X-D1540L4	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	1	6	4 H	2 R	1 VGA	PCIe 16x	TPM	option
X-D1520TP2/X-D1540TP2	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	2 Intel+2 SFP+1 IPMI	1	6 R	2 H	2 R	1 VGA	PCIe 16x	TPM	TPM
X-D2123T	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	2 Intel\X557+1 IPMI		8 R	2 H	2 R	1 VGA	1 PCIe 8x+1 OCuLink	TPM	TPM
E3-1585L4	Xeon® E3-1585V5	C236 Express Chipset	4 DDR4	Iris® 6200 Pro Graphics	3 x i210+1 x i219LM LAN	TPM, GPIO		1 H	2 R+1 H	1 HDMI+1 VGA	PCIe x16		7.1 ALC887
2550L2D	D2550	NM10	2 DDR3SO	Intel HD 3650	2 Broadcom		2	4 R+2 H	2 R	1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
J1900AL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek		1	1 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+GPIO+1xPS/2/H	5.1 ALC662
N3350AEL2	N3350	Apollo Lake	2 DDR3SO	Intel HD 500	2 Realtek	1	2	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe+PCIe 1x	LPT+GPIO	7.1 ALC887
N4200AEL2	N4200	Apollo Lake	2 DDR3SO	Intel HD 505	2 Intel\i211AT		1	5 R	4 R	1 HDMI+2 DP+1 LVDS	MiniPCIe+PCIe 1x	GPIO+TPM	5.1 ALC662
N3050A1	N3050	Braswell-u	2 DDR3SO	8th Gen. HD	1 Realtek		1	3 R+3 H	1 R	1 HDMI+1 VGA+1 LVDS/H	2 MiniPCIe	GPIO+LPT	7.1 ALC892
N3150A1	N3150	Braswell-u	2 DDR3SO	8th Gen. HD	1 Realtek		1	3 R+3 H	1 R	1 HDMI+1 VGA+1 LVDS/H	2 MiniPCIe	GPIO+LPT	7.1 ALC892
Slim-7000e4	i7-7500u	Kaby Lake-u Skylake-u	1 DDR4SO	7th Gen. HD	1 Realtek/F\RTL8111F	1-8/4		4 R	6 R	2 HDMI/F	4 MiniPCIe	GPIO	5.1 ALC662
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	1-4	1	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
i5-6200FL2	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
i5-6200L2B	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	2 HDMI	2 MiniPCIe		5.1 ALC662
i5-6200SL	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	1 Realtek	2-8	1	2 R+2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
Nano-U10A	i7-10710u	Comet Lake-u/Whiskey Lake-u Platform (SOC)	2 DDR4SO	UHD 620 / Iris Graphics	1 Intel® i219LM+SIM	1		1	4	1 HDMI + Optional HDMI		TPM	5.1 ALC662
H310A1	8/9th Socket 1151	H310	1 DDR4SO	Intel UHD 630	1 Intel\i219V	1	2	4 H	4 R+2 H	1 HDMI+1 VGA/H+1 LVDS/H			5.1 ALC662
H410A1	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	1 Reltek\RTL8111F	1	2	4R	2R+2F	1 DP + HDMI		LPT/S	5.1 ALC662
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	1-4/6/8	2	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
Slim-H110A2	6/7th Socket 1151	H110	1 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek\RTL8111F	2-8	1	4 H	4 R	1 HDMI+1 VGA+1 LVDS	1 MiniPCIe+1 MiniPCIe-F		5.1 ALC662
H110A1/i1000A10	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek	2-8	1	4 H	4 R	1 HDMI+1 VGA+1 LVDS	MiniPCIe		7.1 ALC887
i1000Q10	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
B250G	Socket 1151 Kaby Lake	B250	2 DDR4	Intel HD 630	1 Intel	1	4	2 R+2 H/F	4 R+2 H	1 HDMI+1 DP	PCIe 16x		7.1 ALC892
H370L2G	8/9th Socket 1151	H370	2 DDR4	Intel UHD 630	2 Intel+11ac WiFi/BT	2	4 R	2 H	4 R+2 H	1 HDMI2.0+1 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
H370L2	8/9th Socket 1151	H370	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	6 R	2 R+2 H	6 R+2 H	2 HDMI+1 DP	PCIe 16x	1xPS/2+TPM	7.1 ALC892
Z390L2	8/9th Socket 1151	Z390	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	1	6 R	2 R+2 H	5 R+2 H	2 HDMI+1 DP	PCIe 16x	TPM+1xPS/2	7.1 ALC892
Z490L2	11th/10th Socket 1200	Z490	2 DDR4	Intel UHD 630	1 Reltek\RTL8125BG+1 Intel\i219V	2-8	4 R	2 R+2 H	5 R+2 H	1 HDMI+1 DP	PCIe 16x	1xPS/2	7.1 ALC1220
B550E	Socket AM4 Ryzen 3rd w/o G-Series	AMD B550	2 DDR4	Radeon Vega	1 Realtek\RTL8111H	2-8	4 R	2 R+1 H	3 R+1 H	1 HDMI2.1+1 DP1.4	1 PCIe 16x	1xPS/2	7.1 ALC887
2550iD	D2550	NM10	2 DDR3SO	Intel HD 3600	1 Broadcom		2	4 R+2 H		1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
2550L2D-MxPC	D2550	NM10	2 DDR3SO	Intel HD 3650	2 Broadcom		2	4 R+2 H	2 R	1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
2600L2	N2600	NM10	1 DDR3SO	Intel HD 3600	2 Realtek		option	4 R+2 H		1 VGA	2 MiniPCIe+PCI	2xPS/2	5.1 ALC662
H8700L8-1U	Socket 1150 Haswell	H87	2 DDR3SO	Intel HD 5000	8 Intel/F	2-8	1	2 F+4 H	2 H	1 VGA	MiniPCIe+PCIe 8x
