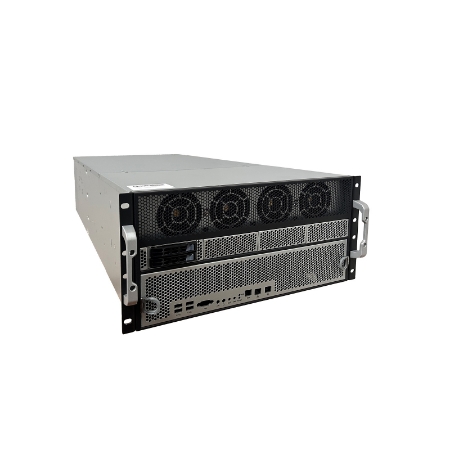

5U8GPU-4189A - 8 Triple-Slot GPU (RTX-4090) for AI Computing / Deep and Machine Learning

5U Dual Socket 3rd Gen. Intel® Xeon® CPU, 8xTriple-Slot GPU(RTX-4090), 8 2.5” + M.2 NVMe, 32 DIMM 8-Channel DDR4, 2 10GbE LAN + IPMI

Key Features:

• 5U 8 Triple-Slot (RTX-4090 or other) GPU Cards, NVLink, NVSwitch
• Socket 3rd Gen. Intel® Xeon® CPU
• Front 8 2.5” SAS/SATA/U.2 HD/SSD, M.2 NVME SSD
• 8 PCIe 4.0 x16, 2 PCIe 4.0 x16 FHFL
• 32 DDR4 ECC Memory, up to 8TB
• 2 Intel®10GbE (RJ45), IPMI
• BMC KVM Remote Management
• 4 1600W-3000W Platinum/Titanium Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC.

Download DataSheet



SKU: 5U8GPU-4189A
Product specifications
Processor
• Dual 3rd Generation Intel® Scalable Xeon® (Ice Lake Family)
• Socket P+ (LGA 4189), supports 270W, Up to 40 Core 80 Threads
GPU
• Supports 8 x A100/H100/H800/A800/L40/L40S/RTX 6000 ada Dual Slot Full Height Full Length Card
• Supports 8 x GeForce RTX4090 Blower Cooling Triple Slots Cards
• Supports 8 x GeForce RTX4090 Fan Cooling Triple Slot Card
Memory
• 32 DDR4 DIMM
• 8-Channel memory bus per processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM
Storage
• 8 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays
• Up to 8 NVMe (16GT/s) / 8 SATA (6Gb/s) RAID-0/1/5/10
• 1 x M.2-22110/2280/2260 (for NVMe 4.0 SSD)
Network
• 2 x 10GbE RJ45 Ethernet
• Supports BMC Remote Manageent
• IPMI 2.0 / SOL/KVM
Expansion Slot
• 8 x PCIe 4.0 x16 slots (for GPU Card)
• 2 x PCIe 4.0 x16 FHFL slots
Other I/O
• 1 x RJ45 IPMI port (Front)
• 2 x 10GbE RJ45 LAN ports (Front)
• 1 x DB15 VGA port (Front)
• 4 x USB 3.0 ports (Front)
BIOS
• AMI, Watchdog Supported
Chassis
• 5U Rackmount
• 8 x 2.5” NVMe U.2 4.0/SATA Front Hot Swap Drive Bays
• Dimension: 8.7" H x 17.5" W x 37.4 D ( 222mm H x 445mm W x 950mm D )
• System Weight: 170 lbs. (77kg) Net, 230 lbs. (105kg) Gross
Power Supply
• 4 x 1600W/2000W/2200W/3000W 80Plus Platinum/Titianium PSU
• N+N Redundant
OS Support
• Windows Server, Linux
Application
• GPU for AI, Deep Learning, HPC.
Environment

• Operating Temperature: +10 to +35 C
• Non-operating Temperature: -40 to +70 C
• Operating Relative Humidity: 10% to 80% (non-condensing)
• Non-operating Relative Humidity: 10% to 93% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance

*
*
*
