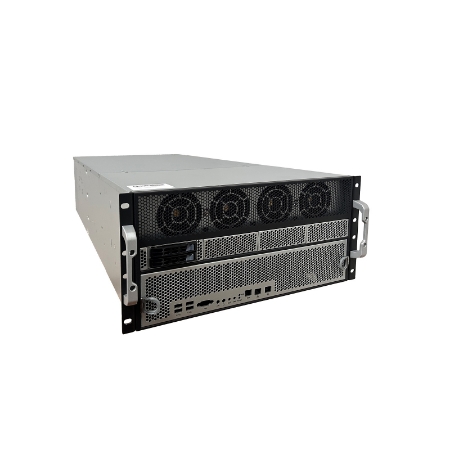

5U8GPU-E7003 - 8 RTX-4090 GPU Computing For AI, Deep / Machine Learning

5U Dual AMD EPYC™, for 8 Triple-Slot GPU (RTX-4090), 8 2.5” + M.2 NVMe, 32 DIMM 8-Channel DDR4, 2 10GbE LAN + IPMI

Key Features:

• 5U 8 Triple-Slot GPU (RTX-4090) Cards, NVLink, NVSwitch
• Dual AMD EPYC™ 7003/7002 Series Processors
• Front 8 2.5” SAS/SATA/U.2 HD/SSD, M.2 NVME SSD
• 8 PCIe 4.0 x16, 2 PCIe 4.0 x16 FHFL
• 32 DDR4 ECC Memory, up to 8TB
• 2 Intel®10GbE (RJ45), IPMI
• BMC KVM Remote Management
• 4 1600W-3000W Platinum/Titanium Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC.

Download DataSheet

SKU: 5U8GPU-E7003

Specifications
Request for Info

Product specifications

Processor • Dual AMD EPYC™ 7003/7002 Series Processors • 2 x Socket SP3 (LGA 4094) supports 280W, up to 64 Core 128 Threads GPU • Supports 8 x A100/H100/H800/A800/L40/L40S Dual Slot Full Height Full Length Card • Supports 8 x GeForce RTX3090/RTX4090 Blower Cooling Triple Slots Cards • Supports 8 x GeForce RTX3090/RTX4090 Fan Cooling Triple Slot Card
Memory • 32 DDR4 DIMM • 8-Channel memory bus per processor • Supports up to 8TB ECC DDR4 3200MHz RDIMM Storage • 8 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays • Up to 8 NVMe (16GT/s) / 8 SATA (6Gb/s) RAID-0/1/5/10 • 1 x M.2-22110/2280/2260 (for NVMe 4.0 SSD)
Network • 2 x 10GbE RJ45 Ethernet • Supports BMC Remote Manageent • IPMI 2.0 / SOL/KVM Expansion Slot • 8 x PCIe 4.0 x16 slots (for GPU Card) • 2 x PCIe 4.0 x16 FHFL slots
Other I/O • 1 x RJ45 IPMI port (Front) • 2 x 10GbE RJ45 LAN ports (Front) • 1 x DB15 VGA port (Front) • 4 x USB 3.0 ports (Front) BIOS • AMI, Watchdog Supported
Chassis • 5U Rackmount • 8 x 2.5” NVMe U.2 4.0/SATA Front Hot Swap Drive Bays • Dimension: 8.7" H x 17.5" W x 37.4 D ( 222mm H x 445mm W x 950mm D ) • System Weight: 170 lbs. (77kg) Net, 230 lbs. (105kg) Gross Power Supply • 4 x 1600W/2000W/2200W/3000W 80Plus Platinum/Titianium PSU • N+N Redundant
OS Support • Windows Server, Linux Application • GPU for AI, Deep Learning, HPC.
Environment • Operating Temperature: +10 to +35 C • Non-operating Temperature: -40 to +70 C • Operating Relative Humidity: 10% to 80% (non-condensing) • Non-operating Relative Humidity: 10% to 93% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • Dual AMD EPYC™ 7003/7002 Series Processors • 2 x Socket SP3 (LGA 4094) supports 280W, up to 64 Core 128 Threads GPU • Supports 8 x A100/H100/H800/A800/L40/L40S Dual Slot Full Height Full Length Card • Supports 8 x GeForce RTX3090/RTX4090 Blower Cooling Triple Slots Cards • Supports 8 x GeForce RTX3090/RTX4090 Fan Cooling Triple Slot Card
Memory • 32 DDR4 DIMM • 8-Channel memory bus per processor • Supports up to 8TB ECC DDR4 3200MHz RDIMM Storage • 8 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays • Up to 8 NVMe (16GT/s) / 8 SATA (6Gb/s) RAID-0/1/5/10 • 1 x M.2-22110/2280/2260 (for NVMe 4.0 SSD)
Network • 2 x 10GbE RJ45 Ethernet • Supports BMC Remote Manageent • IPMI 2.0 / SOL/KVM Expansion Slot • 8 x PCIe 4.0 x16 slots (for GPU Card) • 2 x PCIe 4.0 x16 FHFL slots
Other I/O • 1 x RJ45 IPMI port (Front) • 2 x 10GbE RJ45 LAN ports (Front) • 1 x DB15 VGA port (Front) • 4 x USB 3.0 ports (Front) BIOS • AMI, Watchdog Supported
Chassis • 5U Rackmount • 8 x 2.5” NVMe U.2 4.0/SATA Front Hot Swap Drive Bays • Dimension: 8.7" H x 17.5" W x 37.4 D ( 222mm H x 445mm W x 950mm D ) • System Weight: 170 lbs. (77kg) Net, 230 lbs. (105kg) Gross Power Supply • 4 x 1600W/2000W/2200W/3000W 80Plus Platinum/Titianium PSU • N+N Redundant
OS Support • Windows Server, Linux Application • GPU for AI, Deep Learning, HPC.
Environment • Operating Temperature: +10 to +35 C • Non-operating Temperature: -40 to +70 C • Operating Relative Humidity: 10% to 80% (non-condensing) • Non-operating Relative Humidity: 10% to 93% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
