B760E2 - 13th/14th Gen. Raptor Lake Edge AI | Mini PC with 2 Lots

Raptor Lake-S with 2 PCIe Slots, 2 HDMI or RTX Graphics, 2M.2-2280 x4 PCIe, 2LAN 2.5GbE

Featured Highlights
	Intel® Core™ i9/i7/i5/i3 Socket-S Processor LGA1700
	Intel® B760 Chipset
	Intel® UHD 700 Graphics, 2 HDMI, or Nvidia® RTX Graphics Card
	2 DDR4 DIMM for up to 128GB Dual Channel Memory
	2 M.2-2280/2242 PCIe 4.0 x4 NVMe, 4 SATA 3.0
	1 PCIe 4.0 x16, 1 PCIe 4.0 x4, 2 M.2-2280/2242 PCIe 4.0 x4 Slots
	Dual 2.5G LAN, M.2-2230 for WiFi/BT
	6 USB 3.2, 2 USB 2.0
	Realtek® Audio Sound
	DC12V 120W or higher wattage Power Adapter (UL/CE/FCC Certified)
	Optional 90V-240V 220W or higher wattage AC Power Supply
	OS Support: Windows 11/10, Linux, FreeBSD
	Applications: AI Edge (Edge Computing), Digital Signage, Network Security, Audio/Video PC, SoHo PC, etc.

SKU: B760E2

B760E2

Features 13th and 14th Gen. Intel® Core™ i9/i7/i5/i3 Socket-S Processor LGA1700 (all formerly known as Raptor Lake). This is perfect for AI Edge (Edge Computing), Digital Signage Player PC, Audio/Video PC, SoHo PC, etc. This Raptor Lake computer has PCIe 4.0 x16 and x4 Slots+2 M.2-2280 PCIe 4.0 x4 Slots give it rich expansions.

Specifications
Request for Info

Product specifications

Processor • 13th and 14th Generation Intel® Socket-S Series LGA1700 Raptor Lake/Meteor Lake • Intel® Core™ i9-14900K, i9-13900K, i9-13900KF 24C/32T 36M Cache • Intel® Core™ i7-13700K, i7-13700KF 16C/24T 30M Cache • Intel® Core™ i5-13400K, i5-13500KF 14C/20T 24M Cache • 12th Generation Intel® Socket-S Series LGA-1700 Alder Lake • Intel® Core™ i9-12900, i9-12900T, i9-12900K 16C/24T 30M Cache • Intel® Core™ i7-12700, i7-12700T 12C/20T 25M Cache • Intel® Core™ i5-12600, i5-12500, i5-12400, i5-12400T, i5-12500T 6C/12T 18M Cache • Intel® Core™ i3-12100, i3-12100T, i3-12300, i3-12300T 4C/8T 12M Cache • Intel® Pentium® Gold G7400, G7400T 2C/4T 6M, Celeron® G6900T 2C/2T 4M Chipset • Intel® B760 Chipset
Memory • 2 x DDR4 DIMM • 3200/2600MHz unbuffered (Dual Channel I/O) • Supports up to 128GB Graphics • Intel® UHD 770 Graphics (based on CPU) • 2 x HDMI® 2.0 (1 Rear and 1 Front option), with max. resolution up to 3840x2160 60Hz • Optional Nvidia RTX-5000 Series or RTX PRO Graphics Card with 3 DP+1 HDMI ports
Network • 2 x Realtek® RTL8125D 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WIFI/BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional LANs can be added by an Add-on LAN module via USB, PCIe, or M.2 slots Expansion Slot • 1 x PCI Express 4.0 x16 slot • 1 x PCI Express 4.0 x1 slot • 1 x M.2 2230 (for WIFI/BT or Other Module) • 1 x M.2 3042 (for 5G/4G-LTE Module SIM Slot) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe SSD)
Storage • 2 x M.2-2280/2242 (for PCIe 4.0 x4 NVMe SSD) • 4 x SATA-6Gb/s Audio • Realtek® ALC661 Audio Codec (5.1) • 2 x 3.5mm Analog Stereo Audio jacks

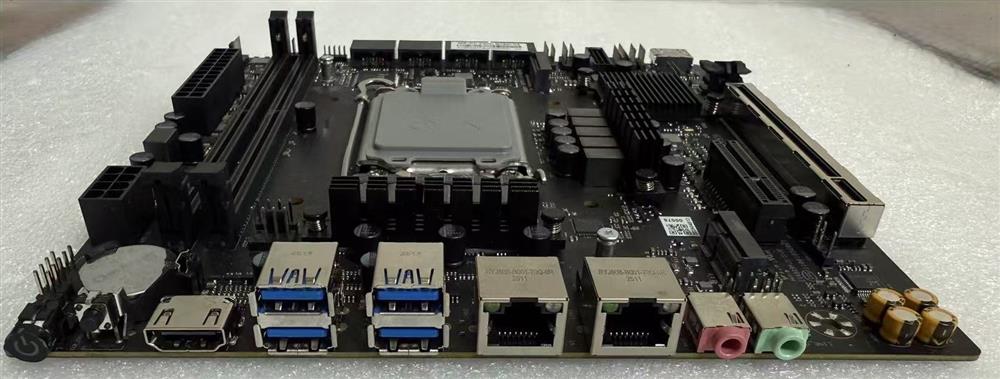

Back Panel I/O • 4 x USB 3.2 Gen 2 ports • 1 x HDMI® 2.0 port • 2 x RJ45 LAN ports • 2 x 3.5mm Audio jacks • Option: 2 Slots I/O by Add-on cards Internal I/O • 2 x USB 2.0 headers • 2 x M.2-2280/2242 • 1 x M.2-2230 • 1 x Audio Header
System BIOS • AMI® UEFI BIOS • Supports Watchdog Systemboard • Small Form Factor • Back I/O
Chassis • 500B2 Small Form Factor Aluminum Chassis with 2 LP Slots • Dimensions: 8.1"(W) x 8.1"(D) x 3.5"(H) Weight: 1.6 lb. Net 10 lb (with packaging) • Drive Bay: 2.5" • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA, wall mount or rackmount bracket • Option: 500BR 3.5" H w/Full Height RISER + LP slots, 550PS slot+1U P/S, 600B2 tall Slot, Hd bay, 1750C with 2 RISER slots, 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-slot, 5000PS uATX 2 RISER • Option: 236F3 Fanless Chassis Power Supply • Power: DC12V 120W or DC19V 300W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W~2000W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11/10, Linux, FreeBSD Applications • Digital Signage, Edge AI, Audio/Video PC, Entertainment PC, AI-IoT, etc.
Environment • Operating Temperature: -10 to +60 C • Non operating temperature: -20 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
