 Think Big. Go Small. Eco-Smart Computing

H410L2

10th Gen Socket-S, UHD Graphics HDMI+DP+VGA, 2 LAN + WiFi6, 2 M.2 + 4 SATA + GPIO
Featured Highlights
  Intel® Core™ i9/i7/i5/i3 Processor LGA1200
    10th Gen. Comet Lake Platform
    Low-voltage energy efficiency Eco-smart computing
  Intel® H410 Express Chipset
  Intel® UHD Graphics, HDMI 2.0+DP+VGA+LVDS
  2 DDR4 SO-DIMM for up to 32GB Memory
  4 SATA-6Gb/s -RAID, M.2 SSD/NVMe
  PCIe 3.0 x16
  2 LAN, 11ac WiFi+BT
  4 USB 3.2, 4 USB 2.0
  Realtek® ALC662 6-channel (5.1)
  Power: DC12V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
  OS Support: Windows 11/Windows 10, IoT, Linux
  Applications: Set Top Box, Network Appliance, Digital Signage, Surveillance, IP/PBX, IoT/Edge System, etc.

SKU: H410L2
Product specifications
Processor

• 10th Generation Intel® Socket-S Series LGA-1200 Comet Lake 35/65W
• Intel® Core™ i9-10900, i9-10900T 10C/20T 20M Cache
• Intel® Core™ i7-10700, i7-10700T 8C/16T 16M Cache
• Intel® Core™ i5-10600, i5-10500, i5-10400T 6C/12T 12M Cache
• Intel® Core™ i3-10100, i3-10100T 4C/8T 6M Cache
• Intel® Pentium® Gold G6605, G6405, G6405T 2C/4T 4M, Celeron® G5905, G5905T 2C/2T 4M

Chipset

• Intel® H410 Express Chipset

Graphics

• Intel® UHD Graphics
• Support 2 Graphics ports
• 1 x HDMI 2.0, supporting a maximum resolution of 3840x2160 60Hz
• 1 x DP, 4K 60Hz Graphics port
• 1 x VGA port
• 1 x LVDS header

Memory

• 2 x DDR4 SO-DIMM
• 2933/2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 32GB

Network

• 1 x Intel® I211AT Gigabit (10/100/1000 Mb/s) LAN
• 1 x Intel® I219V Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x PCI Express 3.0 x16 slot
• 1 x MiniPCIe full size slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280/2260 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 4 x SATA 6Gb/s
• 1 x mSATA 6Gb/s via MiniPCIe full size slot
• 1 x M.2 2280/2260 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• HD Audio
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 3.0 ports
• 1 x HDMI 2.0 port
• 1 x DP
• 1 x VGA port
• 2 x LAN ports
• 3 x 3.5mm Audio jacks

Internal I/O

• 4 x USB 2.0 headers
• 1 x LVDS/Inverter header
• 2 x RS232 Serial COM headers
• 1 x I2C/SMBUS

Function

• Option: 1 x TPM header
• 1 x 4in/4out GPIO header

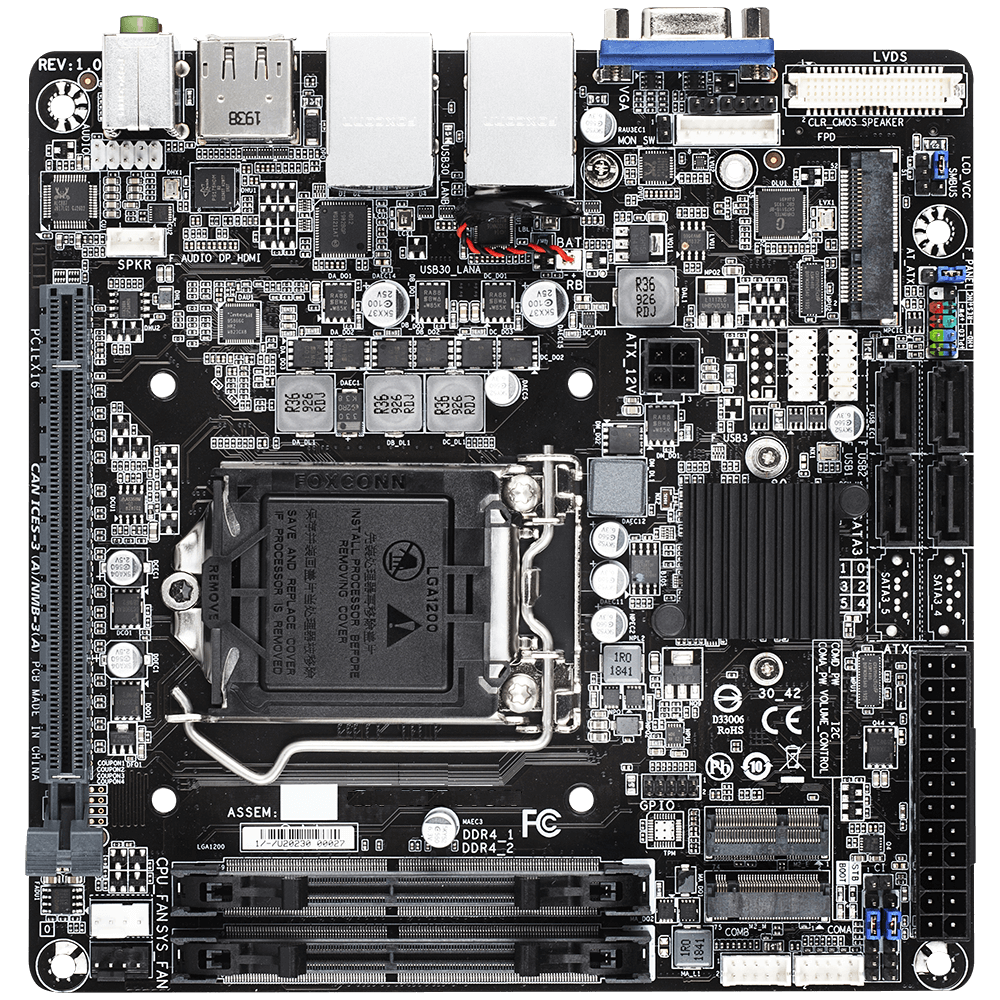

Systemboard

Small Form Factor

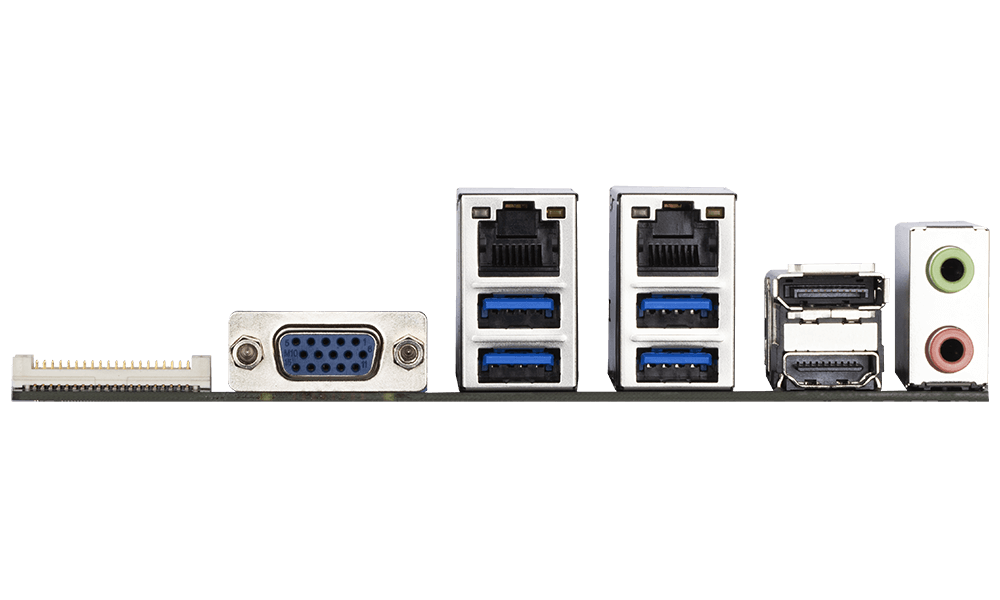

Back I/O

Chassis

300B Small Form Factor Aluminum Chassis
• Dimensions: 8.1"(W) x 8.1"(D) x 2.2"(H) Weight: 1.6 lb (Net) 10 lb (with packaging)
• Drive Bay: 2.5"
• Color: Black as default color, option: Custom color, Custom logo available. MOQ required
• Supports VESA, wall mount or rackmount bracket
• Option: 175C Case 1.75"(H), 400B Aluminum 2.6" (H), 450S Swap/DVD+uLP, 500B 3.5"(H) w/LP slot, 500S 2U LP/RISER , 550PS slot+1U P/S, 600B Tall slot,HD bay, 600T Twin PC, 1750C with slot, 1750F Fanless with slot, 1U-1000U Low Cost Mini Server with PCIe 16x slot, 1U-1000S Low Cost Mini Server with PCIe 16x slot, 1U-1000D 5.25"CD/swap, 1U-1000T 2-in-1U Twin, 2U-2000U Short 2U 4-slot, 5000PS uATX 2 RISER
• Option: 236F3 Fanless

Power Supply

• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional 90V-240V 220W or higher wattage AC Power Supply
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/Windows 10, IoT, Linux

Application
• Set Top Box, Network Appliance, Digital Signage, Surveillance, AV Player, IP/PBX, IoT/Edge System, etc.
Environment

• Operating Temperature: 0 to +60 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
