Processor
• Intel ® Core™ Ultra Processors (Series 2) (LGA1851) • Intel ® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W) • Supports Intel ® Hybrid Technology • Supports Intel ® Turbo Boost Max 3.0 Technology • Supports Intel ® Thermal Velocity Boost (TVB) • Supports Intel ® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration
Chipset
• Intel® H810 Chipset
|
Memory
• 2 x SO-DIMM DDR5 6400MHz unbuffered non-ECC Dual Channel I/O • Supports up to 192GB
Graphics
• Intel® Xe LPG Graphics Architecture • 1 x HDMI®1.4 port, max. resolution up to 4096x2160 at 30Hz • 1 x DisplayPort 1.2 max. resolution up to 4096x2160 at 60Hz • 1 x eDP (Option) max. resolution Up to 5120 x 3200 @60 Hz • 1 x LVDS max. resolution Up to 1920 x 1200 @60 Hz
|
Network
• 1 x Intel® I226V 2.5 Gigabit LAN • 1 x Intel® I219-LM Gigabit (10/100/1000 Mb/s) LAN • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 E Key with CNVi Support (PCIe x1 & USB2.0) • 1 x M.2 2280 M Key (NVNe with PCIe x4, SATAIII) • 1 x M.2 2242/3042/3052 B Key (PCIe x1, SATAIII, USB2.0) • 1 x PCIe5.0 x16
|
Storage
• 2 x SATAIII 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s SSD or PCIe 3.0 x4 NVMe) • 1 x M.2 2242 (for SATA-6Gb/s SSD ) • Supports SATA RAID 0,1,5,10
Audio
• 1 x Speaker 2W 4-pin header with amplifier • 1 x Audio Header (Front Panel Mic-in & Line-out)
|

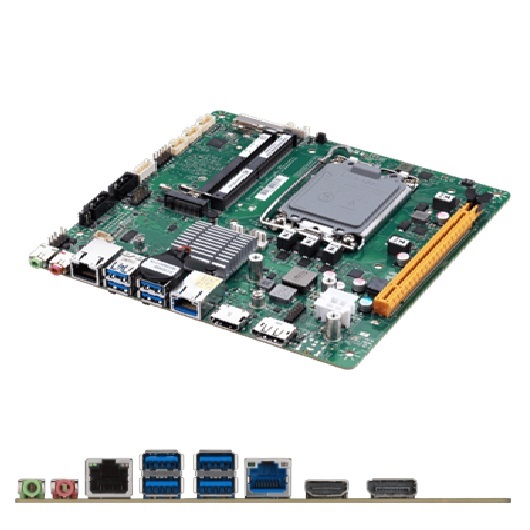

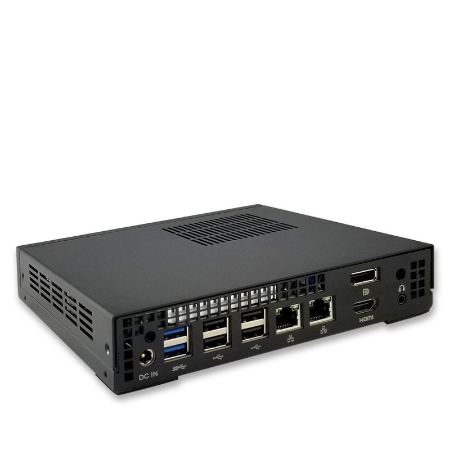

Back Panel I/O
• 2 x USB3.2 Gen1 • 2 x USB3.2 Gen2 • 1 x HDMI® 1.4 port • 1 x DP1.2 port • 2 x LAN port • 1 x Mic-in, 1 x Line-out • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 1 x LVDS Header, 1 x Backlight Header; 1 x eDP Header (Optional) • 2 x SATA III Connector, 1 x 5 pin SATA Power connector • 2 x USB 2.0 (1 x 2.54 pitch header) • 1 x Speaker 2W 4-pin header with amplifier • 1 x Audio Header (Front Panel Mic-in & Line-out) • 1 x MiAPI Header (support 10 x GPIO, 1 x SMBUS, 1 x UART, 1 x Watchdog) • 1 x RS232/422/485 Header & 3 x RS232 Header • DC-in 19V (5.1 mm / ID, 7.4 mm / OD) / ATX 4-pin 19V • 1 x Front Panel Header; 2 x 4 pin Fan Header; Nano SIM slot
|
System BIOS
• AMI® UEFI BIOS
|

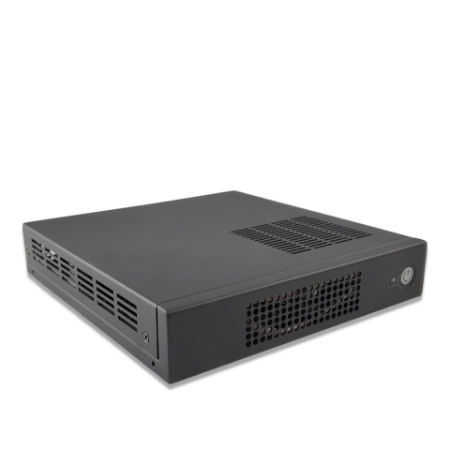

Chassis
• 140D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7.00"(W) x 7.20"(D) x 1.40"(H), Weight: 3 lb. (Net) 10 lb. (gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets
Power Supply
• Power: DC-in 19V Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 11/10 64-bit,
Applications
• Digital Signage, Entertainment PC, Edge AI, Audio/Video PC, AI-IoT, High-end Gaming, etc.
|
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
