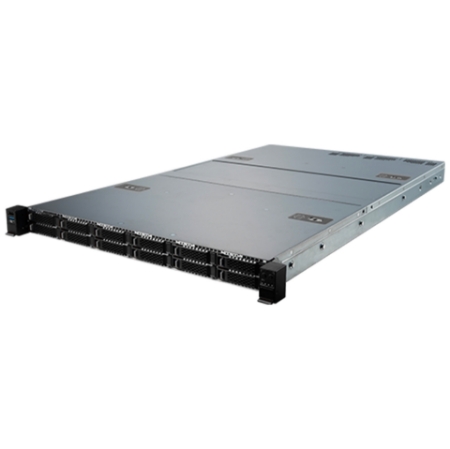

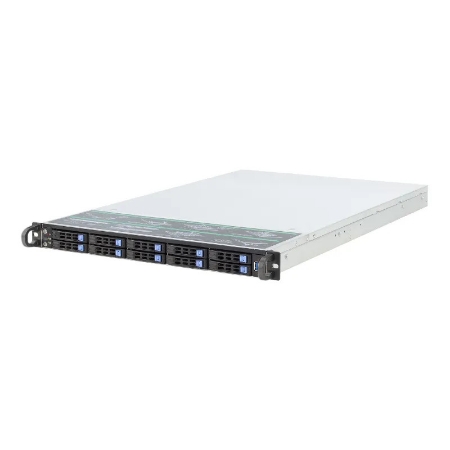

PolyServer 1U12N-E5

1U 12 x U.2 SSD bays, 24 × DDR5 slots, Dual Socket Turin EPYC™9005

Key Features:

• 2 × AMD EPYC 9004/9005 (Turin) series processors, up to 128 cores each
• 12 x Hot-swap 2.5" drive bays: 8 x U.2 PCle 4.0 NVMe + 4 x SATA 3.0/SAS
• 24 × DDR5 ECC 12-Channel per processor, 6000MHz, RDIMM/3DS RDIMM
• 2 x 1GbE RJ45 LAN + IPMI, 1 × OCP 3.0 slot
• 3 x PCle x16 HHHL slots
• 2 x 1300W CRPS Platinum Redundant Power Supply
• OS support: Windows Server, Linux, FreeBSD
• For cloud computing services, content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning.

SKU: 1U12N-E5

Specifications
Request for Info

Product specifications

Processor • 2 × AMD EPYC 9004/9005 series processors, up to 128 cores each Chipset • AMD Turin Family EPYC 9005 SoC
Memory • 24× DDR5 slots Max. Frequency 6000MT/s, up to per DIMM: RDIMM: 96GB/RDIMM-3DS: 256GB Storage • 12 x Hot-swap 2.5" drive bays: 12 x U.2 PCle 4.0 x4 NVMe (Optional SAS/SATA) • 2 x M.2-2280 Slots for PCIe 3.0 x4 NVMe SSD
Network • 2×1GbE • 1 x 1GbE IPMI (BMC) by AST2600, Optional MicroSD slot for BMC log • 1× OCP 3.0 PCIe 5.0 x16 (NCSI) slot supports Dual or Quad 1G/10G/25G/50G/100G/200G/400G Copper or Optical Ports Expansion Slot • 2 x PCle 5.0 x16 HHHL slots • 1 x PCle 3.0 x16 HHHL slot • 1 x OCP 3.0 PCIe 5.0 x16 slot
Graphics • Aspeed AST2600 BMC VGA Back Panel I/O • 2 x 1000Base-T Ethernet ports • 1 x 1000Base-T Dedicated Server Management port (AST2600 BMC for IPMI 2.0, supports Redfish) • 2 x USB 3.0 Type-A ports • 1 x VGA O-Sub port • 1 x COM Console RJ45 port • 1 x UID LED button
Front I/O • 12 Hot-swap 2.5" U.2 drive bays (Front) • 1 x USB 3.0 Type-A port (Front) • 1 x USB 2.0 Type-A port (Front) • 1 x System Power LED button (Front) • 1 x UID LED button (Front) • 1 x Reset button (Front) • 4 x Status LEDs: Fault/LAN/M.2 (Front) BIOS • AMI® • Watchdog Supported • TPM 2.0 (Infineon)
Chassis • 1U Rackmount with Front UID/LED • 12 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays • 4 x 8cm Cooling Fans • Dimensions: 438mm(17.2")W x 43.2mm(1.7")H x 770mm(30.3")D • System Weight: 38 lbs. (19kg) Net, 65 lbs. (28kg) Gross Power Supply • Dual 1300W (1+1) CRPS Redundant Platinum Level with PMBus • 1000W: 100-127Vac / 1600W: 200-240Vac Input • Optional 2000W CRPS Titanium
OS Support • Windows Server, Linux, FreeBSD, VMware Applications • For cloud computing services,content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning.
Environment • Operating Temperature: 0 to +35 C • Non-operating temperature: -40 to +60 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
