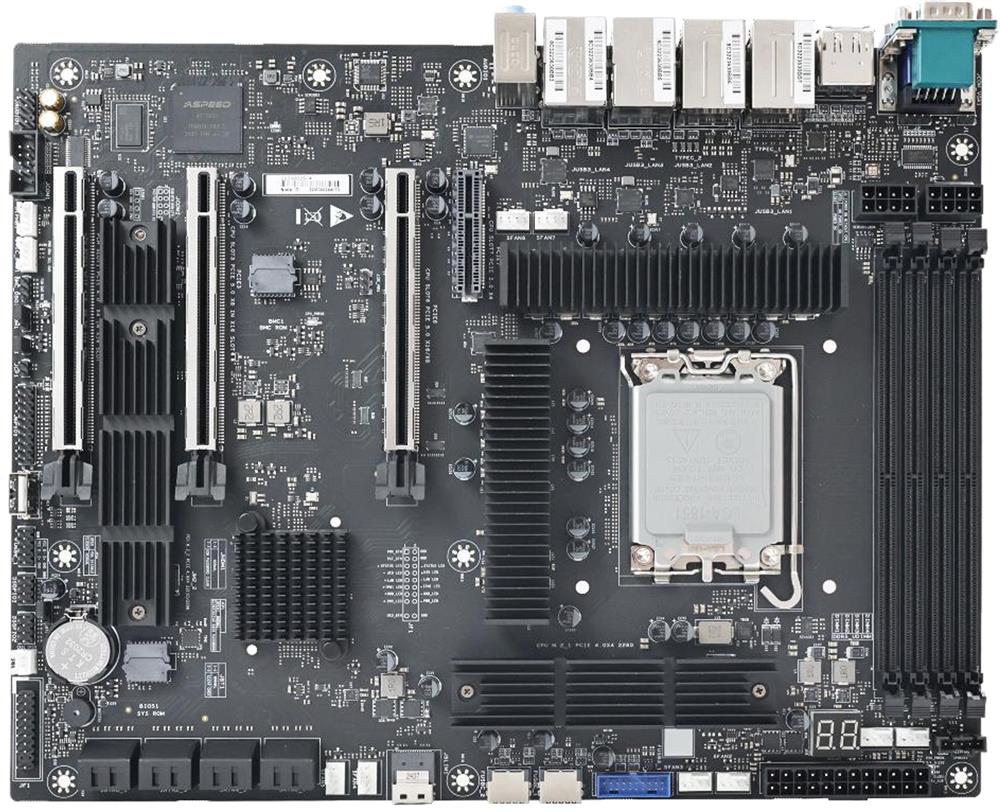

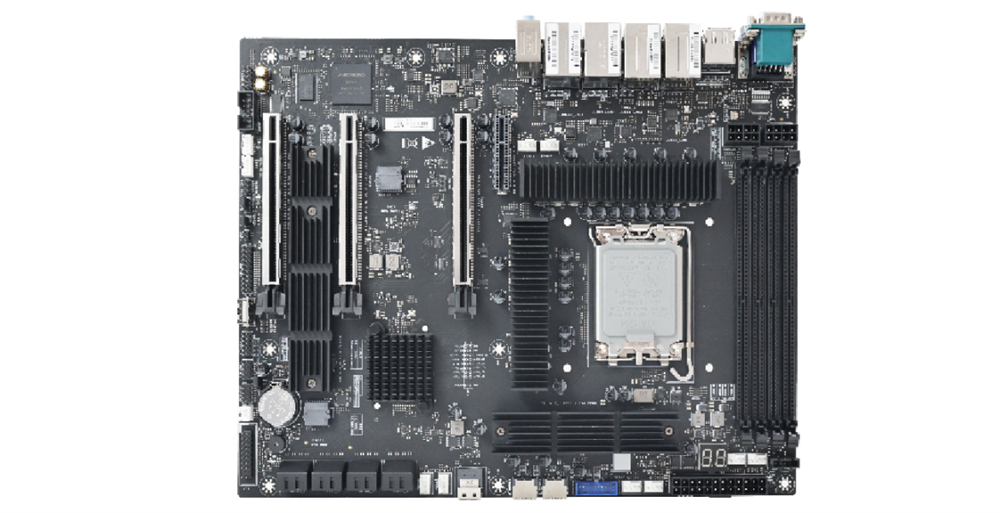

Picture of W880L2-IPMI

W880L2-IPMI

Intel® Core™ Ultra Series 2 , AST2600 VGA+DP+HDMI , PCIe Gen5 Slots, 2 x RJ-45 2.5GbE

Featured Highlights
	Intel® Core™ Ultra Processors (Series 2)
	Intel® W880 Chipset (Supports Arrow Lake Family)
	ASPEED AST2600 BMC, 1 x VGA (AST2600) , 1 x DP,1 x HDMI(from CPU)
	4 x DDR5 DIMM for up to 256GB Memory
	2 x 3.5", 1 x 2.5" drive bays, 1 x M.2 2280 supports PCIe 4.0 x4, 1 x PCH M.2 2280/22110 supports PCIe 4.0 x4
	2 x PCIe 5.0 x16, 1 x PCIe 5.0 x4 Slot ,1 x PCIe 4.0 x16 (x4 signal）
	2 x RJ-45 2.5GbE LAN ports supports 10/100/1000/2500Mbps
	5 x USB 3.2 10G，1x USB 3.2 5G, 1 x 40G USB4, 1 x 10G type-C , Front: 2 x USB3.0 + 2 x Type-C
	1 x 1200W ATX Power Supply (UL/CE/FCC Certified)
	OS Support: Windows 11, IoT, Linux, FreeBSD
	Applications: High-End Gaming, Edge AI, AI-IoT, Surveillance, AV Player, etc.

SKU: W880L2-IPMI

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ Ultra Processors (Series 2) (LGA1851) • Intel® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W) • Intel® Core™ Ultra 9-285T, 7-265T, 5-245T/235T/225T (35W) • Supports Intel® Hybrid Technology • Supports Intel® Turbo Boost Max 3.0 Technology • Supports Intel® Thermal Velocity Boost (TVB) • Supports Intel® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration Chipset • Intel®W880 Chipset (Supports Arrow Lake Family)
Graphics • ASPEED AST2600 BMC • 1 x VGA（AST2600） • 1 x DP • 1 x HDMI(from CPU) Memory • Dual Channel DDR5 Memory Technology • 4 x DDR5 DIMM Slots • Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* • Supports Clocked Unbuffered DIMM (CUDIMM) • Max. capacity of system memory: 256GB • Supports Intel® Extreme Memory Profile (XMP) 3.0x
Network • 2 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s • 2 x Intel i226-LM Enterprise Ethernet Expansion Slot • 2 x PCIe 5.0 x16 Slot • 1 x PCIe 4.0 x4 Slot • 1 x PCIe 4.0 x16 Slot • 1 x Quad-width PCIe 5.0 Full Height Full Length Graphics Card with Fan cooling

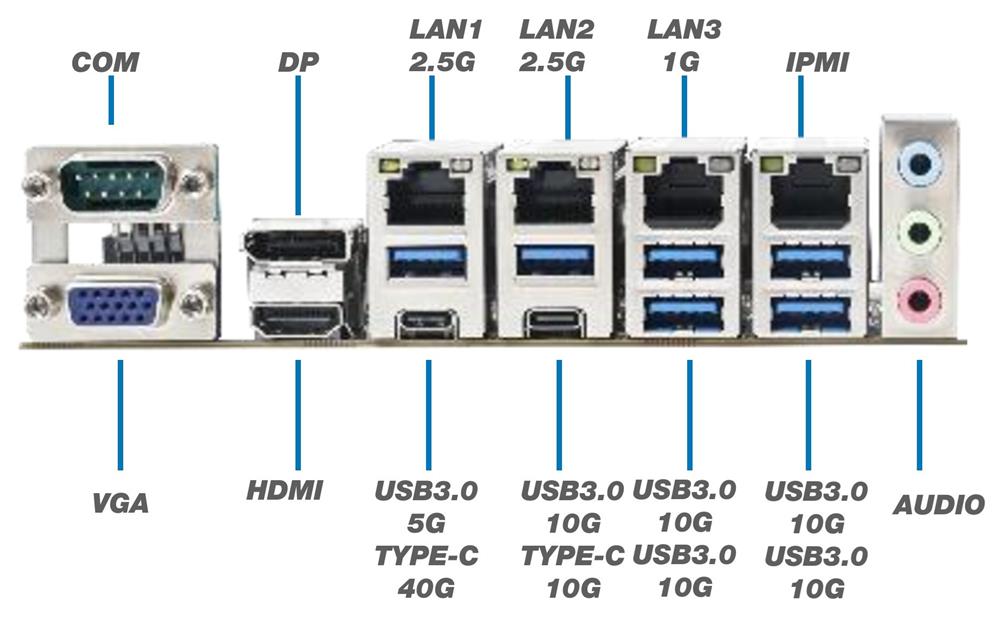

Storage • 2 x 3.5", 1 x 2.5" drive bays • 1 x CPU M.2 2280 supports PCIe 4.0 x4; • 1 x PCH M.2 2280/22110 supports PCIe 4.0 x4 Back Panel I/O • 5 x USB 3.2 10G • 1 x USB 3.2 5G • 1 x 40G USB4 • 1 x 10G type-C • 1 x IPMI • 2 x RJ-45 2.5GbE LAN • 1 x COM • 1 x 3.5mm Audio • 1 x VGA • 1 x HDMI • 1 x DP
Other I/O • 2 x USB3.0 (Front) • 2 x Type-C (Front) • 1 x 3.5mm Audio Jack (Front) System BIOS • 128Mb AMI UEFI Legal BIOS with GUI support
Systemboard • Small Form Factor Chassis • Dimension: 430mm (D)x 182mm (W) x 419 mm (H) • Drive bay: 2 x 3.5", 1 x 2.5" Internal bays, 4 x Expansion slots
Power Supply • Power: 1 x 1200W ATX Power Supply (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option OS Support • Windows 10/11, IoT, Linux, FreeBSD
Applications • High-End Gaming, AI-IoT, Surveillance, AV Player, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
