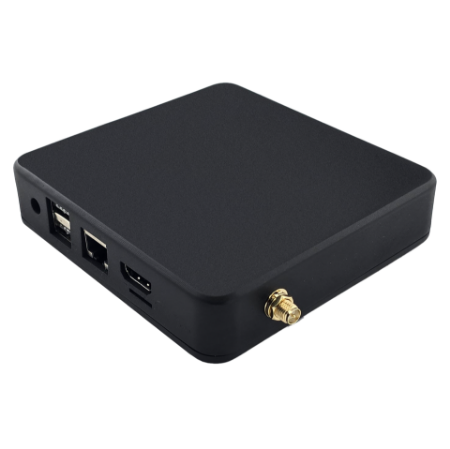

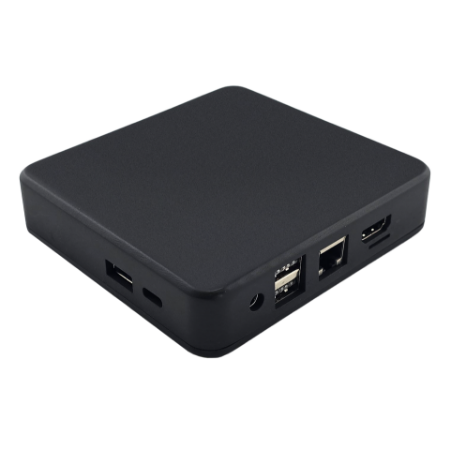

X36C-mini - The Best ARM Linux / Android Player PC

QuadCore ARM® Cortex®-A55, Android 15 /Linux , HDMI 2.0, Type-C, 4G-LTE Modem sim slot

Featured Highlights
	Nano Small Form Factor: 4.1"(W) x 4.1"(D) x 0.99"(H)
	ARM® Cortex®-A55 Processor
	RK3566 SoC
	Mali®-G52-2EE Graphics, HDMI 2.0
	4G Onboard DDR4
	16G eMMC Storage
	Gigabit LAN RJ45 Port
	HD Audio Sound
	2 x USB 2.0, 1 x USB 3.0, 1 x Type-C USB 3.0 OTG
	DC12V 2A Power Adapter (UL/CE/FCC Certified)
	Supports Android 15, Linux
	For Digital Signage, Audio Player

SKU: X36C-mini

Specifications
Request for Info

Product specifications

Processor • ARM® Dual-Core Cortex®-A55 4Core up to 1.80GHz Chipset • Rockchip RK3566 (SOC)
Graphics • Mali®-G52-2EE Graphics • 1 x HDMI 2.0 port, supports a max. resolution of 4K at 60Hz Memory • 4G Standard, Optional 2GB or 8G Onboard DDR4
Network • 1 x Realtek® RTL8211F-CG Gigabit (10/100/1000 Mb/s) LAN • Option: 802.11ac/ax WiFi-5/6 + Bluetooth 5.0 Module • Wake on LAN • Optional mini-PCIe slot supports 4G-LTE modem with SIM slot Storage • 16GB Standard eMMC Flash Internal Storage • Optional 32G, 64G, 128G eMMC • Optional TF (microSD) slot, supports 128GB
Audio • Rockchip RK809 HD Audio • Optional Optical S/PDIF port • 2 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 1 x HDMI 2.0 port • 1 x LAN port • 1 x S/PDIF port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Other I/O • 2 x USB 2.0 ports (Rear) • 1 x USB 3.0 port (Side) • 1 x USB 3.0 Type-C OTG port (Side) • 1 x TF/microSD slot (Side) System BIOS • Watchdog supported
Chassis • X35C-mini: Fanless Nano Plastic Enclosure • Option: X36-mini with Aluminum Fanless Chassis supports high temperature • Dimension: 4.1"(W) x 4.1”(D) x 0.99"(H), Weight: 0.70 lb (Net) • Color: Black/Grey as default color, custom colors available with special order • Custom logo is available for OEM order (MOQ is required) • Supports VESA, wall mount or rackmount brackets Power Supply • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included; European Power Cord available as option • Other countries / regions compliance certifications are available up on request with extra charge • Different countries and regions may require different power adapter to pair up with the device. • Powered by PoE (requires POE power splitter) • Energy Star Compliance, Idle mode at <1W
OS Support • Android 15, Linux Option: MDM available as special order Applications • Digital Signage, Audio Player, etc.
Environment • Operating Temperature: -10 to +50 C • Non operating temperature: -40 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 0% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance SKU available for special order

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Dual-Core Cortex®-A55 4Core up to 1.80GHz Chipset • Rockchip RK3566 (SOC)
Graphics • Mali®-G52-2EE Graphics • 1 x HDMI 2.0 port, supports a max. resolution of 4K at 60Hz Memory • 4G Standard, Optional 2GB or 8G Onboard DDR4
Network • 1 x Realtek® RTL8211F-CG Gigabit (10/100/1000 Mb/s) LAN • Option: 802.11ac/ax WiFi-5/6 + Bluetooth 5.0 Module • Wake on LAN • Optional mini-PCIe slot supports 4G-LTE modem with SIM slot Storage • 16GB Standard eMMC Flash Internal Storage • Optional 32G, 64G, 128G eMMC • Optional TF (microSD) slot, supports 128GB
Audio • Rockchip RK809 HD Audio • Optional Optical S/PDIF port • 2 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 1 x HDMI 2.0 port • 1 x LAN port • 1 x S/PDIF port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Other I/O • 2 x USB 2.0 ports (Rear) • 1 x USB 3.0 port (Side) • 1 x USB 3.0 Type-C OTG port (Side) • 1 x TF/microSD slot (Side) System BIOS • Watchdog supported
Chassis • X35C-mini: Fanless Nano Plastic Enclosure • Option: X36-mini with Aluminum Fanless Chassis supports high temperature • Dimension: 4.1"(W) x 4.1”(D) x 0.99"(H), Weight: 0.70 lb (Net) • Color: Black/Grey as default color, custom colors available with special order • Custom logo is available for OEM order (MOQ is required) • Supports VESA, wall mount or rackmount brackets Power Supply • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included; European Power Cord available as option • Other countries / regions compliance certifications are available up on request with extra charge • Different countries and regions may require different power adapter to pair up with the device. • Powered by PoE (requires POE power splitter) • Energy Star Compliance, Idle mode at <1W
OS Support • Android 15, Linux Option: MDM available as special order Applications • Digital Signage, Audio Player, etc.
Environment • Operating Temperature: -10 to +50 C • Non operating temperature: -40 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 0% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance SKU available for special order
