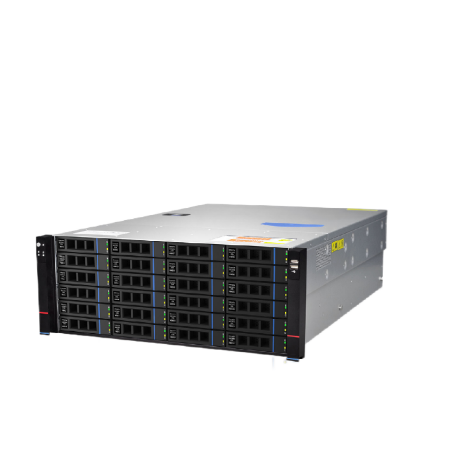

4U24S32-C741

4U Xeon for Storage Server

Key Features:

• Dual Sockets 4th/5th Gen Intel® Xeon® Processor
• Front Up to 24 × 3.5" HDD/SSD Drive Bays,
• Rear  Up to 12 × 3.5"+ 6 × 2.5" HDD/SSD
• 32 DDR5 ECC Memory, up to 8TB
• 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 option
• BMC KVM (IPMI 2.0) Remote Management
• 4 x 2700W 3+1 CRPS Titanium Redundant Power Supply
• Runs Microsoft Windows, Server, Linux OS
• Storage Server



SKU: 4U24S32-C741
Product specifications
Processor

• Dual Sockets Intel® 4th / 5th Gen Xeon® Sapphire Rapids/ Emerald Rapids, up to 350W

Chipset

• Intel® C741

Memory

• 32× DDR5 slots (RDIMM),16-channel (8-channel per CPU), up to 5600MHz, support RDIMM/3DS RDIMM
• Up to 8TB ECC

Storage

Integrated 6Gb/s SATA controller;12Gb/s SAS HBA or 12Gb/s SAS RAID option

• Front: Up to 24 × 3.5" HDD/SSD
• Rear : Up to 12 × 3.5"+ 6×2.5" HDD/SSD
• Internal : 2 × M.2 (PCIe 4.0 x4,2280&22110)

Expansion Slot

• Up to 10× PCIe4.0 expansion slots (Up to 2×FHFLDW or 8×FHFLSW DGPU card )

Network

• Support 1×OCP3.0 expansion slot standard with PCIe 5.0 x8, (x16 is option)
• LAN options: 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28
• Support NCSI

I/O

• 1 × VGA
• 1 × COM
• 2 × USB3.0
• 1 × IPMI RJ45
• 1 × Standard OCP NIC 3.0 slot

Front Panel

• 2×USB3.0
• 1×Optional VGA

Internal I/O

• 2 × USB 3.0 header、2 × USB 2.0 header、1 × USB 2.0 Type A
• 1 × VROC Key header
• 12 × SATA 3.0(3 × SFF-8643), support RAID 0, 1, 5, 10
• 3 × MCIO(PCIe 5.0x8),support 6 × NVMe(PCIe 5.0x4)
• 2 × M.2 , PCIe 4.0 x4 , 2280 & 22110
• 12 × 4pin FAN
• 1 × VGA header for FP
• 1 × SPI TPM 2.0

Chassis

4U 19" Standard Rackmount

• 2.5” Configuration: W 448mm × H 175mm × D 772mm (792mm with ear bezel)
• 3.5” Configuration: W 448mm × H 175mm × D 822mm (842mm with ear bezel)

Power Supply

•   2 × Power Modules, support 1+1 redundancy
• 1300W/1600W/2000W 80 PLUS Platinum power module option

OS Support

Windows Server, Linux

*
*
*
