AI Kiosk

Q470L2G

11/10th Gen Socket-vPro®

3 Display 2 HDMI + DP

2 LAN + 6 COM

4 M.2 + PCIe x16 Slot

Q370L3E2

Coffee Lake vPro®
UHD Graphics 2DP+DVI+LVDS
4SATA+3M.2+4COM
3LAN+12USB+2PCIe

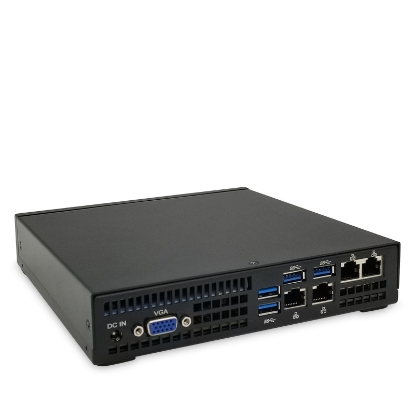

HM170L4

6th Gen i7/i5/i3-HQ
DP+HDMI+VGA
4 LAN+6 COM
Network Security Gateway
Nano-U8FL2C6

8th to 13th Gen u/P/H-Series CPU
UHD Graphics HDMI+DP
3/4 LAN+10 USB+2 M.2
PCIe x8+6 COM+vPro
J4125 - J50

Gemini Lake J
UHD600 4K
DP+HDMI
Dual LAN / COM / PCIe / M.2
MiniPCIe+SIM

X55

True 4K Video Decoder, eMMC+M.2 NVMe SSD, M.2 5G/4G-LTE+sim Slot

AIO-215YT

All-in-one 21"-32" FHD Touch, Intel® Celeron® Whiskey Lake, UHD Graphics HDMI + VGA + eDP, Wall Mount Touch Screen PC

X58L2

Nano ARM® Android 12, Dual CPU 2 Displays HDMI+DP, Dual LAN+WiFi/BT+4G/SIM, 4 USB+COM+TF

X55V

Nano ARM® Android, LAN+WiFi/BT, 6 USB+HDMI 2.0+VGA, Industrial Edge PC

H110L4C6

9th - 6th Gen Fanless Socket-S, HDMI+DVI+VGA+LVDS, PCIe x16+PCIe x4+MiniPCIe, 4 LAN+6 COM+9 USB

Nano-J4125L2C2

Gemini Lake J-Series, UHD600 4K Graphics DP+HDMI, 2 LAN+2COM, PCIe x2+2 M.2+MiniPCIe+2.5" SATA

Nano-J6412L2C2V3

Elkhart Lake J-Series Embedded, Intel® UHD 10th Gen Graphics DP+ 2 HDMI, 2 LAN + 2COM, M.2 + mSATA+ SATA

Nano-J6412U8V3

Elkhart Lake J-Series Embedded, 8 Front USB Ports, Intel® UHD 10th Gen Graphics DP+ 2 HDMI, M.2+mSATA+SATA

X58-IN

Dual 8K DP+HDMI 2.1 Out, 4K HDMI 2.0 Input, 4G-LTE-sim slot, Type-C USB

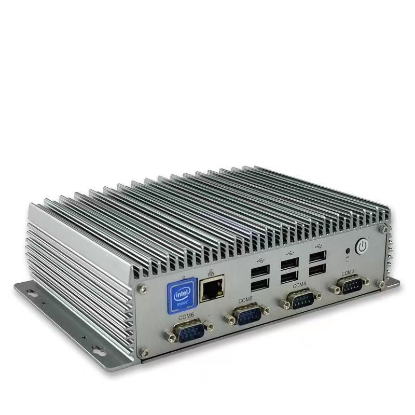

Nano-U12FL2C6

12th/13th Gen. Alder/Raptor lake u/P/H-Series CPU, Iris UHD Graphics HDMI+DP, 3/4 LAN+10 USB+2 M.2, PCIe x8+6 COM+vPro support

A101G-J4125

10.1" 600nits Bright TouchScreen, 1920x1200, DC Powered Celeron J4125 4Core Processor, Fanless

H510L2

10th/11th Gen Socket-S 2LAN, PCIe 16x Slot, 6xRS232/485, 10 USB ports

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

J1900AL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek	1 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+GPIO+1xPS/2/H	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
N4200AEL2	N4200	Apollo Lake	2 DDR3SO	Intel HD 505	2 Intel\i211AT	5 R	4 R	1 HDMI+2 DP+1 LVDS	MiniPCIe+PCIe 1x	GPIO+TPM	5.1 ALC662
Nano-Z83E	x5-Z8350	Cherry Trail	0 DDR3OB	8th Gen. HD	1 RJ45+11ac WiFi/BT	1 R+4 H	1 R	1 HDMI+1 LVDS/H	MiniPCIe	GPIO	CM119B
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
i1000Q10	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
H310A1	8/9th Socket 1151	H310	1 DDR4SO	Intel UHD 630	1 Intel\i219V	4 H	4 R+2 H	1 HDMI+1 VGA/H+1 LVDS/H			5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
Nano-N2807L2	N2807	Bay Trail-u	1 DDR3SO	7th Gen. HD	2 Intel/I211	1 R+4 H	1 R	1 HDMI+1 VGA+1 LVDS	2 MiniPCIe	LPT+1xPS/2/H	5.1 ALC662
H310A	8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD 630	1 Realtek	2 R+5 H	2 R+2 H	1 HDMI+1 DP+1 LVDS		TPM	7.1 ALC887
Slim-H110A2	6/7th Socket 1151	H110	1 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek\RTL8111F	4 H	4 R	1 HDMI+1 VGA+1 LVDS	1 MiniPCIe+1 MiniPCIe-F		5.1 ALC662
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
H110L3	6/7th Socket 1151	H110 B150	2 DDR4SO	Intel HD 530 Intel HD 630	3 Realtek	2 R+2 H	4 R	1 DP+1 HDMI+1 eDP/H	PCIe 16x+PCIe 1x	1xPS/2/H+GPIO+LPT	5.1 ALC662
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
SBC-Z83	x5-Z8350	Cherry Trail	0 DDR3OB	Intel HD	1 Realtek\RTL8111F+11ac WiFi/BT	1 R+2 H	1 R	1 HDMI+1 LVDS			5.1 ALC5672
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
H410A1	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	1 Reltek\RTL8111F	4R	2R+2F	1 DP + HDMI		LPT/S	5.1 ALC662
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888
Q470L2G	11th/10th Socket 1200	Q470	2 DDR4SO	Intel UHD	1 Intel\i219V+1 Intel\i211	4 H	4 R+2 F	1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP)	1 MiniPCIe+1 PCIe 16x	GPIO+TPM	5.1 ALC662
Nano-U8FL2C6	i7-8565U	Whiskey Lake-u	2 DDR4SO	Intel UHD 620/610	2 x Intel® i211A+i219LM	4H	4(USB3.1)R	1 HDMI+1DP+1LVDS/eDP	optional; x8	GPIO, TPM, SPI	5.1 ALC662
i2312	i7-9750H	QM370/HM370	2 DDR4SO	GTX1650	LAN + WiFi/BT	2 F + 2 H	4 R + 1 H	HDMI2.0+HDMI1.4+Type-C+eDP+HDMI2.0 H			ALC662 (5.1)
AIO-215YT
X55	ARM Cortex-A55	Rockchip RK3568	DDR4OB	Mali-G52-2EE	2 LAN + WiFi/BT	1 R + 2 H + 1 S	1 S	HDMI 2.0 + LVDS/eDP		GPIO + UART
H12A	Intel® Core™ i5-12450H	Alder Lake	2 DDR4SO	Intel UHD	1 LAN + WiFi/BT		4 R	HDMI + VGA	1 M.2 2230		Realtek® ALC897
X58L2	Cortex®-A55	RK3588	4GB/8GB DDR4 built-in	Mali™ G610 MC4		2 F	2 R	HDMI+DP+COM+SIM+TF
X55V	Cortex®-A55	RK3568	DDR4	Mali™ G52 EE	1 LAN + WiFi/BT	2 F 2 R	2 F	HDMI + VGA
H110L4C6	Intel® Core™	Intel® H110/C236 Chipset	2 DDR4SO	UHD	4 LAN	4 F	4 R	HDMI + VGA + DVI-D + LVDS/eDP		6-10 COM	HD
Nano-J4125L2C2	Celeron J4125	Gemini Lake	DDR4SO	Intel UHD 600	2 LAN	3F + 1R	1 F	HDMI + VGA + COM	Mini PCIe
Slim-HM370AL2	Intel 9th Gen. Core H-Series	Intel QM370/HM370 South Bridge	2 DDR4SO	UHD 630	2 LAN	2 F	2 F + 2 R	HDMI			ALC662 (5.1)
Nano-J6412L2C2V3	J6412	Elkhart Lake	DDR4	10th Gen UHD	LAN+WiFi	2	2	DP + HDMI
Nano-J6412U8V3
X58-IN	ARM Cortex A76+A55	RK3588S	4GB/8GB Onboard	Mali G610 MP4	Gigabit LAN	2	1	DP + HDMI	4G-LTE-sim, Type-C
Nano-U12FL2C6	12th/13th Gen i7/i5/i3	Alder/Raptor Lake-u/p	2 x DDR4 SO-DIMM	Iris Xe	3/4 LAN		8F + 4F	DP+HDMI+LVDS/eDP	4 x RS422/RS485		5.1
A101G-J4125
H510L2	10th/11th Gen Socket-S	Intel H510			2 Gigabit/2.5G LAN	4	4	6xRS232/485	M.2 Wifi/BT

Q470L2G

Q370L3E2

HM170L4

Nano-U8FL2C6

J4125 - J50
