H12A

Slim 12th Gen H-series Processor, HDMI 2.0+VGA+LVDS, M.2 NVMe 4.0+M.2 WiFi/BT, SATA+4 USB 3.0
Featured Highlights
  12th Gen. Intel® Core™ i9/i7/i5/i3-U/P/H Processor
  Intel® Alder Lake-u Platform (SOC)
  Intel® UHD Graphics, HDMI+VGA+LVDS
  2 DDR4 SO-DIMM for up to 64GB
  SATA-6Gb/s, M.2 SSD/NVMe
  Gigabit LAN, M.2 WiFi/BT
  4 USB 3.0, 2 USB 2.0
  7.1 Realtek® ALC897
  DC19V 60W or higher wattage Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10
  Applications: Set Top Box, Digital Signage, POS/Kiosk, Entertianment PC, Edge AI, etc.

SKU: H12A
Product specifications
Processor

• Intel® 12th Generation Alder Lake U/P/H-series Processor
• Intel® Core™ i5-12450H 3.30/4.40GHz 8Core 12Threads 12M 45/95W
• Intel® Core™ i7-12700H 3.80/5.00GHz 14Core 20Threads 24M 45/115W
• Intel® Core™ i7-12650H 3.50/4.70GHz 10Core 16Threads 24M 45/115W
• Intel® Core™ i5-1250P 3.30/4.40GHz 12Core 16Threads 12M 28/64W
• Intel® Core™ i3-1220P 3.30/4.40GHz 10Core 12Threads 12M 28/64W
• Intel® Core™ i3-1215U 3.30/4.40GHz 6Core 8Threads 10M 15/55W

Chipset

• Intel® Alder Lake Platform (SOC)

Graphics

• Intel® 12th Gen. UHD Grapchics
• 1 x HDMI® 2.0, 4K 60Hz Graphics port
• 1 x VGA port
• 1 x LVDS header (VDD optional 3.3V/5V/12V)

Memory

• 2 x DDR4 SO-DIMM
• 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• Realtek® ALC897 (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 3.0 ports
• 1 x VGA port
• 1 x HDMI® port
1 x LAN port
• 2 x 3.5mm Audio jacks
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 2 x USB 2.0 headers (for up to 4 x USB 2.0 ports)
• 1 x LVDS header

System BIOS

• AMI® BIOS

Systemboard

Small Form Factor
Back I/O

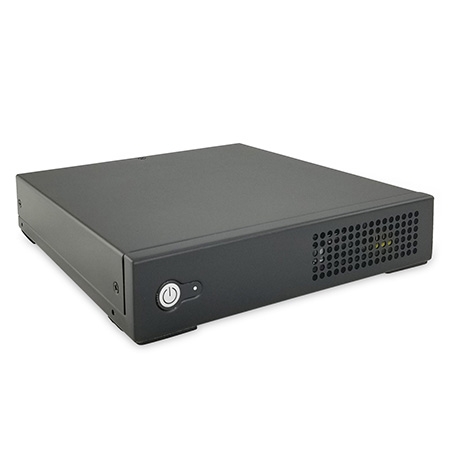

Chassis

140D Small Form Factor with aluminum panel
• Dimensions: 7"(W) x 7.2"(W) x 1.4"(H), Weight: 2 lb. (Net) 4 lb. (gross with packaging)
• Cooling: Slim CPU Fan with Heatsink
• Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available
• Supports VESA, wall mount or rackmount brackets

Power Supply

• Power: DC19V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10,

Application

SoHo PC, Set Top Box, Digital Signage, POS/Kiosk, Entertainment PC, Edge AI,etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
