 Think Big. Go Small. Eco-Smart Computing

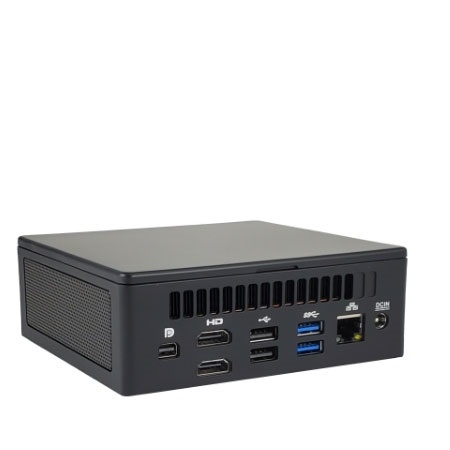

Nano-U13C - Raptor Lake Fanless 8K Mini Digital Signage Player PC

13th Gen. Raptor Lake, Iris® Xe 8K GPU 4 Display, 2 HDMI 2.0+MiniDP+TB, 2 COM+SIM
Featured Highlights
  13th Gen. Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u/p Processor
  Intel® Raptor Lake-u/p Platform (SOC)
  Intel® Iris® Xe/13th Gen. 8K Graphics, 2 HDMI + MiniDP + ThunderBolt 4.0
  2 DDR4 SO-DIMM for up to 64GB Memory
  SATA-6Gb/s, M.2 SSD/NVMe
  Gigabit LAN, M.2 WiFi + M.2 5G/4G-LTE
  4 USB 3.1, 2 USB 2.0, Thunderbolt 4.0 Type-C, Up to 2 Serial COM ports
  USB HD Audio Sound
  Wide Range DC-Input DC12V to DC19V (UL/CE/FCC Certified)
  OS Support: Windows 11/10, IoT, Linux
  Applications: Digital Signage Player, Network Security, POS/Kiosk, Edge AI (Edge Computing), Deep Learning OpenVino, Entertainment PC, Set Top Box, etc.


SKU: Nano-U13C

Nano-U13C

Features 13th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u/p processors (all formerly known as Raptor Lake). This is perfect for Digital Signage Player, Network ​​Security, POS Kiosk, Edge AI (Edge Computing), Deep Learning OpenVino PC, Audio/Video PC, Set Top Box and Mini PC etc. This embedded fanless computer has impressive graphics with Intel® Iris® Xe/13th Gen 8K graphics, 2x HDMI + Mini-DP + ThunderBolt 4.0 Type-C, and up to 64GB of dual-channel DDR4 memory.

Product specifications
Processor

• Intel® Core™ i7-1370p 3.90/5.20GHz 6P+8ECores 20T 24M 20/28W
• Intel® Core™ i7-1360p 3.70/5.00GHz 4P+8ECores 16T 18M 20/28W
• Intel® Core™ i5-1350p 3.50/4.70GHz 4P+8ECores 16T 12M 20/28W
• Intel® Core™ i5-1340p 3.40/4.60GHz 4P+8ECores 16T 12M 20/28W
• Intel® Core™ i7-1365u 3.90/5.20GHz 2P+8ECores 12T 12M 12/15W
• Intel® Core™ i7-1355u 3.70/5.00GHz 2P+8ECores 12T 12M 12/15W
• Intel® Core™ i5-1345u 3.50/4.70GHz 2P+8ECores 12T 12M 12/15W
• Intel® Core™ i5-1335u 3.40/4.60GHz 2P+8ECores 12T 12M 15W
• Intel® Core™ i3-1315u 3.30/4.50GHz 2P+4ECores 8T 10M 15W



Chipset

• Intel® Raptor Lake-u/p Platform (SOC)

Graphics

• Intel® Iris® Xe/12th Gen. UHD Graphics, 4K/5K Resolution
• Support 4 Displays
• 2 x HDMI® 2.0 4K 60Hz Graphics ports
• 1 x MiniDP 4K 60Hz Graphics port
• 1 x Thunderbolt 4.0 Type-C port (supports Type-C to HDMI® 2.1/DP 1.4 8K Graphics)

Memory

• 2 x DDR4 SO-DIMM (Optional DDR5 for special order)
• 3200MHz (Optional 4800MHz) unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Realtek® RT8111H Gigabit (10/100/1000) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242 (for 5G/4G-LTE Module Pair with SIM Card)
• 1 x SIM socket (for 5G/4G-LTE option)
• Wake on LAN, PXE boot (Diskless) supported
• Option: Additional Gigabit LAN can be added by replacing 2 x USB 3.1 ports

Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2242 (for 5G/4G-LTE Module Pair with SIM Card)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)

Audio

• USB HD Audio Sound
• 2 x Audio Out/Mic In jacks

Back Panel I/O

• 4 x USB 3.1 ports (Option: 2 x USB 3.1 + 2 x LAN)
• 2 x HDMI® 2.0 ports
• 1 x MiniDP
• 1 x LAN port (Option: 2 x LAN + 2 x USB 3.1)
• 1 x DC-In 2.5mm Power Connector

Internal I/O

• 2 x RS232 Serial COM headers
• 1 x SIM slot

Other I/O

• 1 x Thunderbolt 4.0 Type-C port (USB-4 40Gb/s, 8K video, charger out 15W) (Front)
• 2 x USB 2.0 ports (Front)
• 2 x 3.5mm Audio/Mic jacks (Front)

System BIOS

• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported

Chassis

• Standard SKU: Nano-12 Chassis 5.44”(W) x 4.97”(D) x 1.73”(H) Weight: 1.5 lb. (Net) 5 lb. (gross with packaging)
• Optional SKU: Nano-F15 Chassis: 7.6"(W) x 4.88"(D) x 2.1"(H)
• Optional SKU: Nano-11L Chassis: 8.27”(W) x 4.92”(D) x 1.48”(H)
• Optional SKU: Nano-F5 Hybrid Enclosure 5.43”(W) x 4.96”(D) x 1.65”(H) (Hybrid Cooling)
• Nano-F10 Fanless Enclosure: Dimensions: 7.87”(W) x 4.92”(D) x 2.24”(H) (Depth dimension changeable),
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V or DC19V 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, IoT, Linux

Application

• Digital Signage, Network Security, POS/Kiosk, Edge AI, OpenVino, Entertainment PC, Set Top Box, etc..

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
