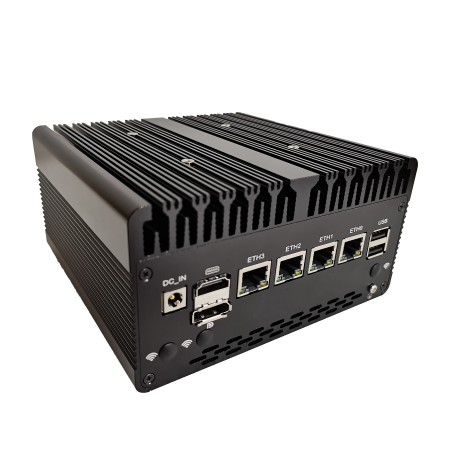

Nano-U13L4C - 13th Gen Core i7 Quad LAN Mini-PC

Processor

• Standard: Intel® Core™ i7-13620H 3.6/4.9GHz 6P+4ECores 16T 24M 35/45W

• Option: 12th/13th gen. u/P/H Mobile processor
• 13th Generation Intel® Core™ Raptor Lake u/p series

• Intel® Core™ i7-1360P 3.70/5.00Ghz 12Cores 16Threads 18M 28/64W

• Intel® Core™ i7-1370P 3.50/4.80GHz 14Cores 20Threads 24M 28/64W

• Intel® Core™ i7-1365U 3.90/5.20Ghz 10Cores 12Threads 12M 15/55W

• Intel® Core™ i7-1355U 3.70/5.00GHz 10Cores 12Threads 12M 15/55W

• Intel® Core™ i5-1350P 3.50/4.70GHz 12Cores 16Threads 12M 28/64W

• Intel® Core™ i5-1340P 3.40/4.60GHz 12Cores 16Threads 12M 28/64W

• Intel® Core™ i5-1345U 3.50/4.70GHz 10Cores 12Threads 12M 15/55W

• Intel® Core™ i5-1335U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W

• Intel® Core™ i5-1334U 3.40/4.60GHz 10Cores 12Threads 12M 15/55W

• Intel® Core™ i3-1315U 3.50/4.50GHz 6Cores 8Threads 12M 15/55W

• Intel® Core™ i3-1305U 3.30/4.50GHz 5Cores 6Threads 10M 15/55W

• Intel® Core™ i3-1315U 3.40/4.60GHz 6Cores 8Threads 10M 15/55W

• Intel® Core™ i5-13500H 3.50/4.70GHz 12Cores 16Threads 18M 35/95W

• Intel® Core™ i7-13700H 3.70/5.00GHz 14Cores 20Threads 24M 35/115W

• Intel® Core™ i9-13900H 4.10/5.40GHz 14Cores 20Threads 24M 35/115W

• Intel® Core™ U300 3.30/4.40GHz 5Cores 6Threads 24M 35/115W

• 12th Generation Intel® Core™ Alder Lake u/p series
• Intel® Core™ i7-1260P, i7-1270P, i7-1265U, i7-1255U
• Intel® Core™ i5-1250P, i5-1240P, i5-1245U, i5-1235U
• Intel® Core™ i3-1215U, Pentium™ 8505, Celeron™ 7305





Graphics

• Intel® Iris® Xe or 12th Gen UHD Graphics
• 1× DP 2.1, 1× HDMI 2.1

Network

• 4 x Intel® I226v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN
• 1 x M2_3052 (5G+sim)（PCIe3.0/USB signal)
• 1 x M2_2230 (PCIE3.0/USB/CNVI for WiFi）
• Option:  additional LAN by PCIe x8 slot

Storage

• 1 x SATA 6Gb/s
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe 4.0 x4 NVMe)

Front Panel

• 2 x USB 3.0 ports (Front)
• 1 x Type-C (Front)
• 1 x SIM slot  (Front)
• 1 x RJ45 Serial console(Front)

Chassis

• Nano-F15 Fanless Chassis  7.6"(W) x 4.90"(D) x 2.1"(H)   2.75 lb. (net) 6 lb. (gross)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, DIN, wall mount or rackmount brackets

OS Support

• Windows 11/10, IoT, Linux, FreeBSD

Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)• Non operating temperature: -20 to 70 C• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz• Shock - Operating: 3,920 m/s2 (400G) 2ms• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms• Operating Relative Humidity: 8% to 90% (non-condensing)• Non-operating Relative Humidity: 5% to 95% (non-condensing)• MTBF: 100,000 Hours• FCC, CE, RoHS Certified
