Processor
• Intel® Core™ Ultra 5-125H 14C/18T 2.5G/4.5G 18M Cache 20/28W • Intel® Core™ Ultra 7-155H 16C/22T 2.5G/4.8G 24M Cache 20/28W • Intel® Core™ Ultra 7-165H vPro 16C/22T 2.5G/5G 24M Cache 20/28W • Intel® Core™ Ultra 9-185H vPro 16C/22T 2.5G/5.1G 24M Cache 35/45W
Chipset
• Intel® Meteor Lake Platform (SOC)
|
Graphics
• Intel® Arc® Graphics • 1× DP 2.1, 1× HDMI 2.1, 1 x Type C
AI Compute Power
• CPU：Ultra 5-125H - NPU Peak TOPS(Int8): 11 - GPU Peak TOPS (Int8): 18 • CPU：Ultra 7-155H - NPU Peak TOPS(Int8): 11 - GPU Peak TOPS (Int8): 18
|
Memory
• 2 x DDR5 SO-DIMM • 5600/3200/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 96GB
Network
• 6 x Intel® I226v 2.5Gigabit (10/100/1000/2500 Mb/s) LAN, 1 of the LAN can be i226LM supporting vPro. • 1 x PCIe x8 slot supports 2/4 additional LAN module of 1GbE/SFP, 2.5GbE, 10GbE/SFP+ • 1 x M2-3052 for 5G+sim.（PCIe3.0/USB signal) • 1 x M2-2230 for PCIE3.0/USB/CNVI for WiFi
|
Expansion Slot
• 1 x M.2 2230 E Key for WiFi/BT (CNVi only) • 1 x M.2 3042/3052 B Key or 5G/4G with SIM • 1 x Mini-PCle slot for 4G/3G with SIM • 1 x PCle x8 Expansional Slot for Optional 2 or 4*SPF+ Ports
Storage
• 1 x 2.5° SATA 3.0 HDD/SSD • 2 x M.2 2280 Nvme PCI-E 4.0 SSD
|

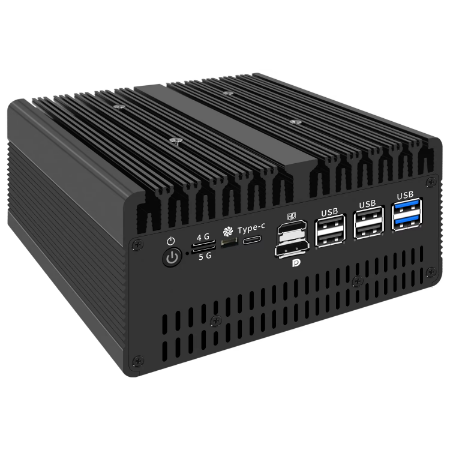

Back Panel I/O
• 4 x USB 2.0 ports • 2 x USB3.2 ports • 1 x HDMI® 2.1 ports • 1 x DP 2.1 • 1 x Type C • 6 x LAN ports • 1 x 4G slot, 1 x 5G slot, • 1 x power switch

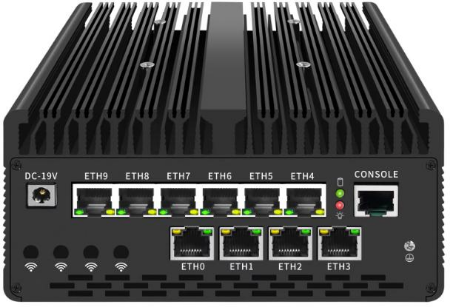

Front I/O
• 6 x 2.5G LAN ports (Front) • 1 x DCjack (Front) • 1 x CONSOLE port4* Antennas Holes
|
Function
• Power-on-boot, scheduled power-on, Wake-on-LAN, PXE boot
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
• Watchdog supported
|
Chassis
• Nano Chassis 7.6"(W) x 4.90"(D) x 2.1"(H) 2.75 lb. (net) 6 lb. (gross) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, DIN, wall mount or rackmount brackets
Power Supply
• Power: DC19V 90W or higher wattage Power Adapter • 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, • European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
|
OS Support
• Windows 11/10, IoT, Linux, FreeBSD
Applications
• Network Security, AI-IoT, POS/Kiosk, Edge Computing, etc.
|
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
