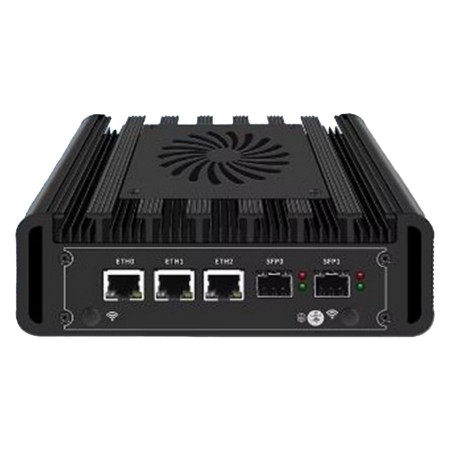

Picture of Nano-N150L3-SFP+

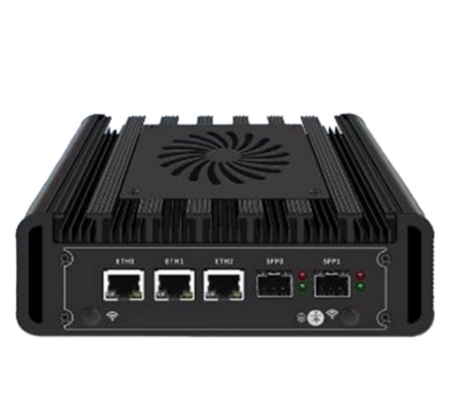

Picture of Nano-N150L3-SFP+

Picture of Nano-N150L3-SFP+

Nano-N150L3-SFP+ - 13th Gen. Twin Lake-N, 2 x Display HDMI + DP, 2 x 10Gbit SFP+ For Network Security

13th Gen. Twin Lake-N, 2 x Display HDMI + DP, 2 x 10Gbit SFP+ For Network Security

Featured Highlights
	Intel® Processor N-series Processor
	Intel® Twin Lake-N Platform (SOC)
	Intel® 13th Generation UHD Graphics, DP+HDMI 2.0
	1 x DDR5 SODlMM non-ECC 4800MHz
	1 x M.2 2280 NVMe/PCle3.0 x1 SSD
	3 x Intel i226-V 2.5G ports, 2 x Intel 82599Es 10G optical ports.
	5 USB 2.0, 1 USB 3.2
	Cmedia USB HD Audio
	DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10/11, IoT, Linux
	Applications: Network Security, Micro Platform for Edge Computing, OpenVino®, AI-IoT, etc.

In Stock

SKU: Nano-N150L3-SFP+

Specifications
Request for Info

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Intel® N150 3.60GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W • Intel® Core™ i3-N350 3.90GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N355 3.90GHz 8Cores 8Threads 6M 9W/15W Chipset • Intel® Twin Lake-N Platform (SOC)
Graphics • Intel® 13th Generation UHD Graphics • Support 2 x 4K UHD Video display • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz • 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz Memory • 1xDDR5 SODlMM non-ECC laptop ram slot, support 4800MHZ
Network • 2 x Intel 82599Es 10G optical ports • 3 x Intel i226-V 2.5G network ports Expansion Slot • M. 2 E Key 2230 slot support only CNVio protocol WiFi module(optional to buy) • ExpandableM.2 B key 3052 slot, 1xSlM slot, support 5G module(optional to buy)
Storage • 1 x M.2 2280 NVMe/PCle3.0 x 1 SSD Back Panel I/O • 1 xUSB3.2 Gen1 • 5 x USB 2.0 ports • 1 x DP • 1 x HDMI® port • 1 x DC-In Power Connector
System BIOS • AMI® UEFI 64MBit / Legacy BIOS • Watchdog supported Chassis • Nano Size Fan-less Aluminum Enclosure • Dimensions: 5.35"(W) x 4.96"(D) x 1.57"(H), Weight: 2.2 lbs., Gross: 5 lb. • Option: Nano-18 Chassis with Hybrid Fan for i3-N305 Dimensions: 56.25"(W) x 4.96"(D) x 1.57"(H), Weight: 2.75 lbs., Gross: 6 lb. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Applications • Digital Signage, Edge AI, OpenVino®, Entertainment PC, AI-IoT, etc. Environment • Operating Temperature: -10 to +50 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Intel® N150 3.60GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W • Intel® Core™ i3-N350 3.90GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N355 3.90GHz 8Cores 8Threads 6M 9W/15W Chipset • Intel® Twin Lake-N Platform (SOC)
Graphics • Intel® 13th Generation UHD Graphics • Support 2 x 4K UHD Video display • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz • 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz Memory • 1xDDR5 SODlMM non-ECC laptop ram slot, support 4800MHZ
Network • 2 x Intel 82599Es 10G optical ports • 3 x Intel i226-V 2.5G network ports Expansion Slot • M. 2 E Key 2230 slot support only CNVio protocol WiFi module(optional to buy) • ExpandableM.2 B key 3052 slot, 1xSlM slot, support 5G module(optional to buy)
Storage • 1 x M.2 2280 NVMe/PCle3.0 x 1 SSD Back Panel I/O • 1 xUSB3.2 Gen1 • 5 x USB 2.0 ports • 1 x DP • 1 x HDMI® port • 1 x DC-In Power Connector
System BIOS • AMI® UEFI 64MBit / Legacy BIOS • Watchdog supported Chassis • Nano Size Fan-less Aluminum Enclosure • Dimensions: 5.35"(W) x 4.96"(D) x 1.57"(H), Weight: 2.2 lbs., Gross: 5 lb. • Option: Nano-18 Chassis with Hybrid Fan for i3-N305 Dimensions: 56.25"(W) x 4.96"(D) x 1.57"(H), Weight: 2.75 lbs., Gross: 6 lb. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Applications • Digital Signage, Edge AI, OpenVino®, Entertainment PC, AI-IoT, etc. Environment • Operating Temperature: -10 to +50 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
