 Think Big. Go Small. Eco-Smart Computing

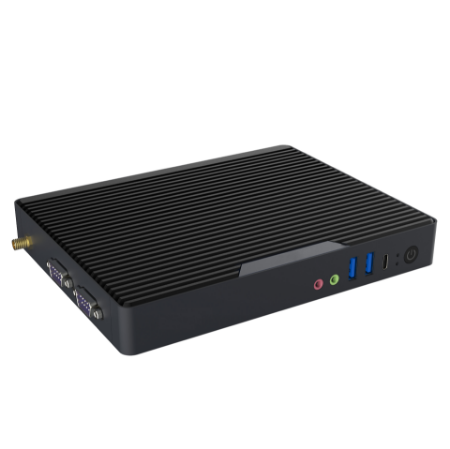

i12P - Ultra Slim Fanless Mini PC

Slim Booksize Fanless 12th Gen, Iris Plus GPU 3 Displays 2 HDMI 2.0+DP 1.4, 2 LAN+M.2-WiFi/BT+M.2-4G/5G, 6 USB+Type-C+2 COM
Featured Highlights
  12th Gen. Intel® Core™ i7/i5/i3 P-series Processor
  Intel® Alder Lake-P Platform (SOC)
  Intel® Iris® Plus Graphics, 2 HDMI 2.0 + DP 1.4
  2 DDR4 SO-DIMM for up to 64GB Memory
  SATA-6Gb/s, M.2-NVMe/SSD
  2 Gigabit LAN, M.2-WiFi/BT + M.2-4G/5G
  2 USB 3.1, USB Type-C, 4 USB 2.0, 2 COM
  7.1 ALC897 HD Audio Sound
  Power Supply: DC12-19V Input
  OS Support: Windows 11 IoT/Pro, Windows 10 Pro, Linux (Latest version)
  Applications: Set Top Box, Digital Signage, POS/Kiosk, IPTV, Edge AI (Edge Computing), Traffic Controller, Industrial Control/IPC, Medical Equipment, Deep Learning OpenVino etc.


SKU: i12P
Product specifications
Processor

• Intel® Core™ i7-1280p 3.60/4.80GHz 6P+8ECores 20Threads 24M 20/28W
• Intel® Core™ i7-1270p 3.50/4.80GHz 4P+8ECores 16Threads 18M 20/28W
• Intel® Core™ i7-1260p 3.40/4.70GHz 4P+8ECores 16Threads 18M 20/28W
• Intel® Core™ i5-1250p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W
• Intel® Core™ i5-1240p 3.30/4.40GHz 4P+8ECores 16Threads 12M 20/28W
• Intel® Core™ i3-1220p 3.30/4.40GHz 2P+8ECores 12Threads 12M 20/28W
• Intel® Core™ i7-1265u 3.60/4.80GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i7-1255u 3.50/4.70GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i5-1245u 3.30/4.40GHz 2P+8ECores 12Threads 12M 12/15W
• Intel® Core™ i5-1235u 3.30/4.40GHz 2P+8ECores 12Threads 12M 15W
• Intel® Core™ i3-1215u 3.30/4.40GHz 2P+4ECores 8Threads 10M 15W
• Intel® Pentium® Gold 8505 3.30/4.40GHz 1P+4ECores 6Threads 8M 15W
• Intel® Celeron® 7305 1.10GHz 1P+4ECores 5Threads 8M 12/15W

Chipset

• Intel® Alder Lake-P Platform (SOC)

Graphics

• Intel® Iris® Plus Graphics, 8K/4K Resolution
• Support 3 Displays
• 2 x HDMI® 2.0, supporting a maximum resolution of 4K 60Hz
• 1 x DP 1.4, supporting a maximum resolution of 8K 30Hz

Memory

• 2 x DDR4 SO-DIMM
• 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 2 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 3052/3042 (for 5G/4G-LTE Wireless Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x2 NVMe)

Storage

• 1 x SATA 6Gb/s (supports 2.5" HDD/SSD)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe x2 NVMe)

Audio

• Realtek® ALC897 Audio Codec (7.1)
• 2 x 3.5mm Analog Stereo Audio jacks

Back Panel I/O

• 4 x USB 2.0 ports
• 2 x HDMI® 2.0 ports
• 1 x DP 1.4
• 2 x LAN ports
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 2 x RS232 Serial COM ports (Side)
• 2 x USB 3.1 ports (Front)
• 1 x Type-C USB port (Front)
• 2 x 3.5mm Audio jacks (Front)

Function

• Optional TPM 2.0 Chip

System BIOS

• AMI® UEFI BIOS
• Watchdog supported

Chassis

• Slim Booksize Fanless Chassis
• Dimensions: 7.48"(W) x 5.83"(D) x 1.57"(H)
• Net Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Supports Mounting

Power Supply

• Power: DC12-19V Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11 IoT/Pro, Windows 10 Pro, Linux (Latest version)

Application

• Set Top Box, Digital Signage Player, POS/Kiosk, IPTV, Edge AI, Traffic Controller, Medical Equipment, etc.

Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
