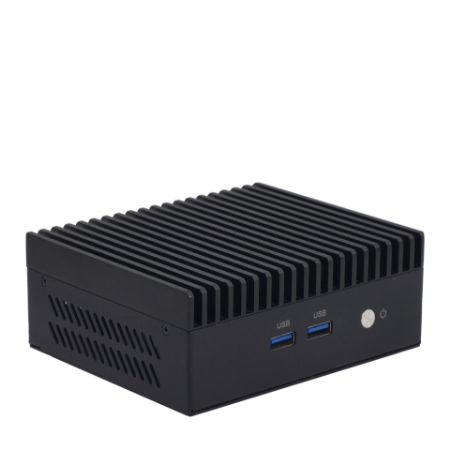

NUC-N305H2 - Rugged Embedded Fanless Mini PC

Alder Lake-N, 2 HDMI , 1 x LAN, 3 x USB3.2 + 1 x USB2.0

Featured Highlights
	Intel® 12th Gen-N Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, 2 HDMI 2.0
	1 x SO-DIMM DDR4 2600/3200MHz slot up to 32GB
	Support 2 x M.2 2280/2242 NVME/NGFF Dual SSD.
	Onboardintel AC7260 WIFI5 & BT4.2
	3 x USB 3.2, 1 x USB 2.0
	ALC897 HD Audio
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10/11, Ubuntu etc
	Applications: Digital Signage, Edge AI, AI-IoT, Audio/Video PC, Network Security, Embedded Longevity

SKU: NUC-N305H2

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i3-N350 3.90GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N355 3.90GHz 8Cores 8Threads 6M 9W/15W • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W Chipset • Intel® Alder Lake-N platform (SOC)
Graphics • Intel® 12th Generation UHD Graphics • Multi Display Output • 2 x HDMI® 2.0 supports 4K 60Hz resolution Memory • 1 x DDR4 SO-DIMM • 2600/3200 MHz unbuffered non-ECC (Single channel I/O) • Supports up to 32GB
Network • Onboard intel AC7260 WIFI5 & BT4.2 • Wake on LAN, PXE boot (Diskless) supported Storage • 2 x M.2 2280/2242 (for SATA-6Gb/s or NVMe SSD)
Audio • HD Audio • 1 x 3.5mm Analog Stereo In/Out Audio Combo jack Back Panel I/O • 1 x USB 3.2 ports • 1 x USB 2.0 ports • 2 x HDMI® 2.0 port • 1 x LAN ports • 1 x 3.5mm Audio jack (Front) • 1 x DC-In Power Connector(2.5mm)
Other I/O • 2 x USB 3.2 ports (Front) Function • Optional TPM 2.0
System BIOS • AMI® UEFI 64MBit / Legacy BIOS Chassis • Nuc Fanless Enclosure • Dimensions: 114mm(L) x 106mm(W) x 42.5mm(H), Weight: 278g • Color: Black or Silver as default color, custom colors available with special order
Power Supply • Power: DC12V or higher wattage Power Adapter Phoenix 2 Pole plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/ 10 Ubuntu etc
Applications • Digital Signage, Edge AI, AI-IoT, Audio/Video PC, Network Security, Medical/Healthcare, High-Speed Railway Environment • Operating Temperature: -20 to +60 C • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
