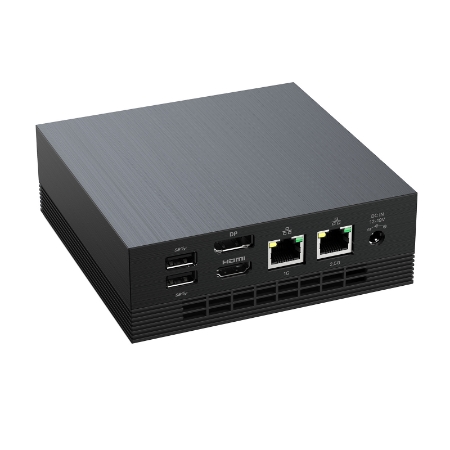

Nano-U16L2V3C Wildcat Mini PC with NPU

Wildcat NPU mini PC, Triple displays DP+ HDMI + Type-C, 2 LAN + 4 USB, M.2 NVMe SSD

Featured Highlights
	Intel® Core™ 3 304 Processor, 5 Core, 6M Cache, up to 4.3GHz
	Intel® Wildcat SoC with Intel® AI Boost 15 TOPS NPU
	Intel® 1Xe Graphics (Peak 9 TOPS), HDMI®2.1 (4K@60Hz) + DP (4K@60Hz)+USB-C (4K@60Hz)
	8/12/16GB LPDDR5-6400MTs On-board Memory
	128/256/512GB SSD (PCIe 3.0 x4), Upgradeable to 4TB.
	Dual 1GbE Ethernet, Intel®Dual Band WiFi-6 (2.4GHz/5GHz), BT
	4 x USB Type-A (2 x 3.2 Gen2, 2 x 2.0), 2 x Type-C 32. Gen2 (PD in 100W, PD out 15W)
	Realtek HD Audio (3.5" combo jack)
	DC12/19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11 Pro, IoT, Linux
	Applications: AI-Edge, IoT, Surveillance, Kiosk, Digital Signage, Home / Office Mini PC, Entertainment, etc.

SKU: Nano-U16L2V3C

Nano-U16L2V3C

features Wildcat Core 3 304, Intel Xe Graphics, DP+ HDMI+Type-C Triple Displays, 2 LAN with M.2 2230 WiFi & BT + 5 USB, LPDDR5 Memory. PC. This System is Perfect for Edge AI, IoT, Video Processing, Kiosk, Digital Signage, Digital Home.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ 3 processor 304, 4.3 GHz, 5 cores, 6 MB cache, 15/35W • Intel® Core™ 5 processor 320, 4.6 GHz, 6 cores, 6 MB cache, 15/35W Chipset • Intel® Wildcat (SOC) • Intel® AI Boost NPU (Peak TOPS: 15)
Graphics • Intel® 1Xe Graphics (Peak TOPS: 9) • Supports Triple Displays • HDMI® 2.1, supporting a maximum resolution of 4K @60Hz • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz • USB-C (4K@60Hz). Memory • Standard with 16GB LPDDR5-6400MTs (On-board) • Option: 8G/12G/24G (Special Order, MOQ required)
Network • Dual Realtek® RTL8111H 1Gigabit Ethernet Storage • 128/256/512GB SSD (M.2 PCIe 3.0 x4 NVMe), upgradeable to 4TB
Audio • Realtek HD Audio Codec • 1 x 3.5mm Combo Analog Stereo Audio jack Back Panel I/O • 2 x USB 2.0 Type-A ports • 2 x LAN ports • 1 x DP 1.4 port • 1 x HDMI® 2.1 ports • 1 x DC-In Power Connecter
Other I/O • 2 x Front USB 3.2 Gen2 Type-A ports • 1 x Front Type-C 3.2 Gen2 Supports 4K Graphics (HDMI/DP), PD-in 100W, PD-out 15W • 1 x Front 3.5mm Combo Analog Stereo Audio jack System BIOS • AMI® BIOS
Chassis • Dimensions: 127x127x46mm (5”x5”x1.8”) weight: 1 lb. • Packaging: 7"x7"x4" 5.5 lb. • Quiet Cooling Design. • Supports VESA/wall mount brackets Power Supply • Power: DC19V 3.42A (Optional DC12V 5A) Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 Pro, IoT, Linux Applications • Edge AI, IoT, Visual Processing, Kiosk, Digital Signage, Entertainment PC, Digital Home, etc.
Environment • Operating Temperature: 0 to +45 C (Optional -5 to 60 C with Special SKU) • Non operating temperature: -40 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
