 High-end Desktop

V7000-4HDMI

AMD Ryzen™ Mobile, Rembrandt R 7000 Series + 4 HDMI 2.0, M.2 + 2-channel DDR5, 4 USB + Type-C
Featured Highlights
 AMD Ryzen™ 5 7535U Processor
 AMD Rembrandt R Chipset
 AMD Radeon™ 660M, 4 HDMI 2.0
 2 DDR5 SO-DIMM for up to 64GB Memory
 M.2 SATA/NVMe SSD
 Gigabit LAN, WiFi6+BT5.2, M.2 4G
 USB 3.2 Gen2, 3 USB 2.0, Type-C, COM
 Realtek® ALC897
 Power Supply: DC19V (UL/CE/FCC Certified)
 OS Support: Windows 11, Linux
 Applications: Set Top Box, Digital Signage, POS/Kiosk, IPTV, Traffic Controller, etc.

SKU: V7000-4HDMI
Product specifications
Processor

• AMD Ryzen™ 5 7535U 2.90/4.55GHz 6Cores 12Threads 16M 28W

Chipset

• AMD Rembrandt R SoC

Graphics

• AMD Radeon™ 660M Graphics
• Support 4 Graphics ports
• 4 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz

Memory

• 2 x DDR5 SO-DIMM
• Unbuffered non-ECC (Dual Channel I/O)
• Supports up to 64GB

Network

• 1 x Gigabit (10/100/1000 Mb/s) LAN
• Realtek® RTL8852BE WiFi6+BT5.2
• 1 x M.2 3042 (for 4G Module Pair w/ SIM)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 3042 (for 4G Module Pair w/ SIM)
• 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or NVMe SSD)

Audio

• Realtek® ALC897 HD Audio
• 2 x 3.5mm Analog Stereo Audio jacks

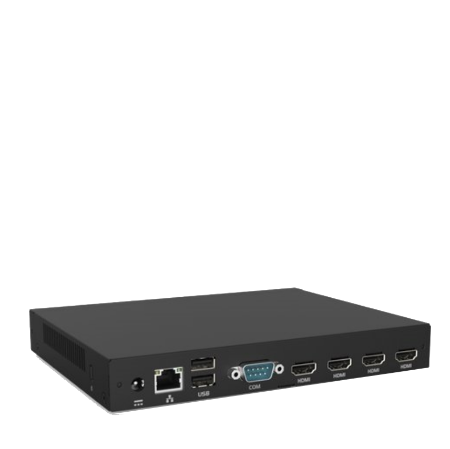

Back Panel I/O

• 4 x HDMI® 2.0 ports
• 1 x LAN port
• 2 x USB 2.0 ports
• 1 x RS232 Serial COM port
• 1 x DC-In 2.5mm Power Connector

Other I/O

• 1 x USB 3.2 Gen2 port (Front)
• 1 x USB 2.0 port (Front)
• 1 x Type-C USB 3.2 Gen1 port (Front)
• 2 x 3.5mm Audio jacks (Front)

System BIOS
• Watchdog supported
Chassis

Booksize i 1" Slim size enclosure 7.48"(W) x 5.82"(D) x 1.02"(H)
• Net Weight: 2 lb. (Net) 5 lb. (gross with packaging)
• Optional VESA Bracket Available

Power Supply

• Power: DC19V 4.74A or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11, Linux

Application
• Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc.
Environment

• Operating Temperature: -10 to +45 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance

*
*
*
