Think Big. Go Small. Eco-Smart Computing

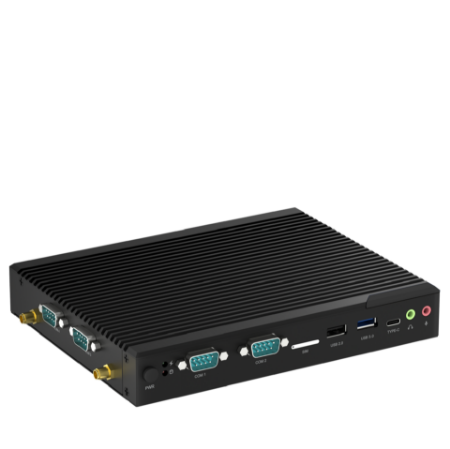

i100N-L2H3 Alder Lake-N 4K Mini Digital Signage PC

Fanless Booksize 12th Gen Alder Lake-N, UHD Graphics Triple Displays 3 HDMI, 2 LAN + 4 COM + 5 USB + Type-C
Featured Highlights
  Intel® N-Series Processor
  Intel® Alder Lake-N Platform (SOC)
  Intel® UHD Graphics, 3 HDMI
  DDR4-SO-DIMM, support 16GB Memory
  M.2 2280 NVMe/SATA
  2 Gigabit LAN, M.2 2230 WiFi/BT
  3 USB 3.0, 2 USB 2.0, Type C, 4 COM
  Realtek® ALC897 Audio
  DC12V 5A Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10, Linux
  Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.




SKU: i100NL2H3

 i100NL2H3

features 12th Gen. Alder Lake-N, UHD Graphics, 3 HDMI Display, 2 LAN with M.2 2230 WiFi & BT + 5 USB, up to 16GB Memory. This is a Alder Lake 4K Mini Digital Signage PC. This System is Perfect for Digital Signage, Edge AI, Audio/Video PC, Set Top Box.

Product specifications
Processor

• Intel® N100 3.40GHz 4Cores 4Threads 6M 6W
• Option:
• Intel® N95 3.40GHz 4Cores 4Threads 6M 6W
• Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W

Chipset

• Intel® Alder Lake-N Platform (SOC)

Graphics

• Intel® UHD Graphics
• 3 x HDMI® ports, supporting a maximum resolution of 4K @30Hz

Memory

• 1 x DDR4 SO-DIMM
• Unbuffered non-ECC (Single Channel I/O)
• Up to 16GB

Network

• 2 x Realtek® RTL8111 Gigabit (10/100/1000Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 4G/5G (Optional)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)

Storage

• 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)

Audio

• Realtek® ALC897 Audio
• 2 x Audio-In/Mic-Out jacks

Back Panel I/O

• 3 x HDMI® ports
• 2 x LAN ports
• 2 x USB 3.0 ports
• 1 x USB 2.0 port
• 1 x DC-In Power Connecter

Other I/O

• 1 x Serial RS232 COM port (Side)
• 1 x Serial RS485/422/232 COM port (Side)
• 2 x Serial RS232 COM ports (Front)
• 1 x USB 3.0 port (Front)
• 1 x USB 2.0 port (Front)
• 1 x Type-C port (Front)
• 2 x Line Out/Mic-In jacks (Front)
• 1 x SIM slot (Front)

System BIOS

• AMI® BIOS

Chassis

• Dimensions: 7.83"(W) x 5.98"(D) x 1.18"(H), 199mm(W) x 152mm(D) x 30mm(H)
• Color: Black as default color, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 5A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, Linux

Application

• Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

Environment

• Operating Temperature: -10°C to 45°C
• Non operating temperature: -20°C to 70°C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 10% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
