Think Big. Go Small. Eco-Smart Computing

Nano-N100D - Rugged Embedded Alder Lake 4K Mini Digital Signage PC

12th Gen. Alder Lake-N, 12th Gen. Graphics, HDMI + DP 2 Display, COM+MiniPCIe+SIM
Featured Highlights
  Intel® Celeron®/Pentium® Processor
  Intel® Alder Lake-N Platform (SOC)
  Intel® 12th Generation UHD Graphics, DP+HDMI 2.0
  On-board 4GB/8GB DDR4, up to 32GB Memory
  64GB/128GB eMMC
  MiniPCIe for mSATA or 4G-LTE modem or Movidius™ Myriad™ X
  Gigabit LAN, M.2 WiFi
  2 USB 3.0, 2 USB 2.0, COM
  Cmedia USB HD Audio
  DC12V 3A 36W or higher wattage Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 10/11, IoT, Linux
  Applications: Digital Signage, Micro Platform for Edge Computing, OpenVino®, Audio/Video PC, Set Top Box, etc.

In Stock



SKU: Nano-N100D

Nano-N100D

features 12th Gen. Alder Lake, 12th Gen. Graphics, HDMI + DP 2 Display, COM+MiniPCIe+SIM, up to 32GB Memory and MiniPCIe for mSATA or 4G-LTE modem or Movidius Myria X. This is a Rugged Embedded Fanless 4K Mini PC. This Fanless System is Perfect for Digital Signage, Micro Platform for Edge Computing, OpenVino, Audio/Video PC, Set Top Box, Industrial PC.

Product specifications
Processor

• Intel N100 3.40GHz 4Cores 4Threads 6M 6W
• Intel N95 1.70/3.40GHz 4Core 4Threads 6M 15W
• Intel N97 3.40GHz 4Cores 6M 12W
• Intel N50 3.40GHz 2Cores 6M 6W
• Intel N200 3.70GHz 4Cores 4Threads 6M 6W
• Intel i3-N300 3.80GHz 8Cores 8Threads 6M 7W
• Intel i3-N305 3.80GHz 8Cores 8Threads 6M 9W
• Intel Atom x7213E 3.20GHz 2Cores 6M 10W
• Intel Atom x7211E 3.20 GHz 2Cores 6M 6W
• Intel Atom x7425E 3.40 GHz 4Cores 6M 12W

Chipset

• Intel® Alder Lake-N Platform (SOC)

Graphics

• Intel 12th Generation UHD Graphics
• Support 2 Graphics ports
• 1 x DP 1.4, 4K 60Hz Graphics port
• 1 x HDMI® 2.1, supporting a maximum resolution of 4K @60Hz

Memory

• On-board 4GB or 8GB DDR4
• 2933/2666MHz unbuffered non-ECC
• Supports up to 32GB (for custom order MOQ required)

Network

• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 (for WiFi+BT or Other Module)
• 1 x MiniPCIe full size slot with SIM socket for 4G-LTE modem or Wi-Fi or 2nd LAN module
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x MiniPCIe full size slot with SIM socket 4G-LTE modem (Optional for mSATA, Wi-Fi, Movidius™ Myriad™ X VPU for OpenVino®)
• 1 x M.2 2230 (for WiFi+BT or Other Module)

Storage

• 1 x MiniPCIe full size slot (for optional mSATA-6Gb/s)
• 64GB/128GB eMMC Flash Internal Storage

Audio

• High Quality CMedia CM119B USB Audio Codec
• 2 x 3.5mm Analog Stereo Audio jacks

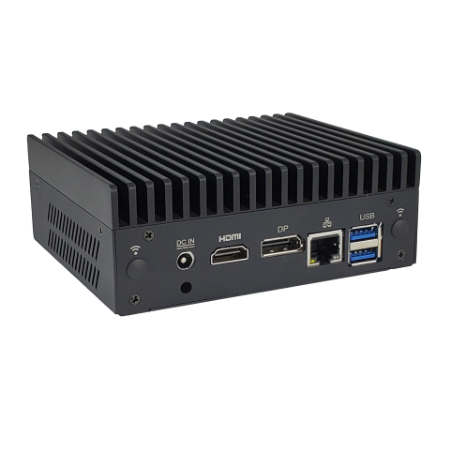

Back Panel I/O

• 2 x USB 2.0 ports
• 1 x DP
• 1 x HDMI® port
• 1 x LAN port
• 1 x DC-In Power Connector

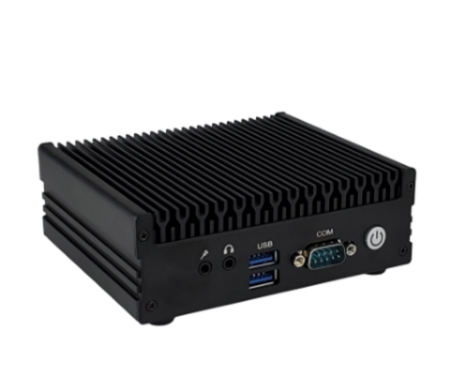

Other I/O

• 2 x USB 3.0 ports (Front)
• 1 x Serial COM port (Front)
• 2 x 3.5mm Audio jacks (Front)

System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Watchdog supported
Systemboard

Small Form Factor
Back I/O

Chassis

NUC-N3 Fanless Enclosure
• Dimensions: 4.96"(W) x 4.33"(D) x 1.33"(H) (Depth dimension is changeable), weight: 1 lbs., Gross: 3.5 lb.
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/wall mount bracket

Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support

• Windows 10/11, IoT, Linux

Application

• Digital Signage, Edge AI, OpenVino®, Entertainment PC, Set Top Box, etc.

Environment
• Operating Temperature: -10 to +50 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
