Processor
• Intel® Celeron® N3350 1.10/2.40GHz 2Core 2Threads 2M 6W
• Intel® Celeron® N3450 1.10/2.20GHz 4Core 4Threads 2M 6W
• Intel® Pentium® N4200 1.10/2.50GHz 4Core 4Threads 2M 6W
• Intel® Atom® E3940 1.60/1.80GHz 4Core 4Threads 2M 9.5W
Chipset
• Intel® Apollo Lake Platform (SOC)
|
Graphics
• Intel® HD 500 Graphics, 4K Resolution • Support 2 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP, 4K 60Hz Graphics port
Memory
• 2GB/8GB DDR3L (built-in, non-changeable) • 1600/1333MHz unbuffered non-ECC
|
Network
• 1 x Realtek® RTL8111F Gigabit (10/100/1000 Mb/s) LAN • 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.0GHz), Bluetooth 4.0 • 1 x M.2 2230 (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 (for WiFi+BT or Other Module)
|
Storage
• 1 x mSATA 6Gb/s • 32GB/64GB eMMC Flash Internal Storage
Audio
• High Quality CMedia CM119B USB Audio Codec • Optimized for Linux support • 2 x 3.5mm Analog Stereo Audio jacks
|

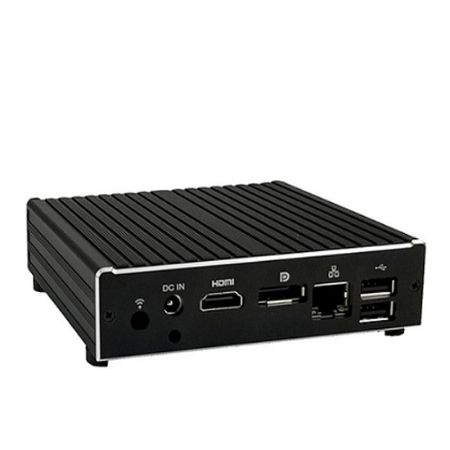

Back Panel I/O
• 2 x USB 2.0 ports • 1 x HDMI® port • 1 x DP • 1 x LAN port • 1 x DC-In 2.5mm Power Connector
Other I/O
• 2 x USB 3.0 ports (Front) • 1 x Serial COM port (Front) • 2 x 3.5mm Audio jacks (Front)
|
System BIOS
• Watchdog supported
Chassis
• NUC-N3 Fanless Enclosure • Dimensions: 4.96"(W) x 4.33"(D) x 1.33"H (depth dimension changeable), weight: 3 lbs • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
|
Power Supply
• Power: DC12V 2A 24W Power Adapter (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Powered by PoE supported
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux, Android
|
Applications
• AI-IoT, Digital Signage, POS/Kiosk, Traffic Controller, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
