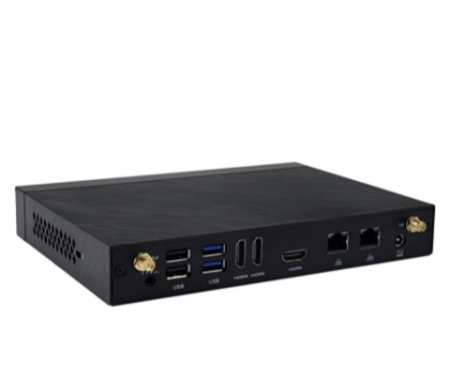

i150N-L2V3c Twin Lake 4K Mini Digital Signage PC

13th Gen Twin Lake-N UHD Graphics, Triple displays 2 x DP+ HDMI, 2 x LAN + Type-C + 8 x USB, M.2 SSD + 2 x COM

Featured Highlights
	Intel® Twin Lake N150 Processor
	Intel® Twin Lake Platform (SOC)
	Intel® UHD Graphics, HDMI®2.1 (4K@60Hz) +2 x DP (4K@60Hz)
	1 x DDR4-3200 SO-DIMM, Up to 32GB
	M.2-2280 NVME/SATA SSD, 2 x DB9 RS-232 COM Ports
	2 x Realtek LAN, M.2-2230 for WiFi+BT, M.2-3042 for 5G-LTE
	8 x USB 3.2 / 2.0 Type-A, + 1 x Type-C 3.2
	Realtek ALC897 Audio out + Mic-in 2 x 3.5mm
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11 Pro/IoT-LTSC, Linux
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, AI-IoT, Entertainment PC, etc.

SKU: i150N-L2V3c

N150L2V3c

features 13th Gen. Twin Lake, UHD Graphics, 2 DP+ HDMI Display, 2 LAN with M.2 2230 WiFi & BT + 8 USB, up to 32GB Memory. This is a Alder Lake 4K Mini Digital Signage PC. This System is Perfect for Digital Signage, Edge AI, Audio/Video PC, AI-IoT.

Specifications
Request for Info

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Intel® N150 3.60GHz 4Cores 4Threads 6M 6W • Intel® N95 1.70/3.40GHz 4Core 4Threads 6M 15W • Intel® N97 3.6GHz 4Cores 6M 12W • Intel® N50 3.40GHz 2Cores 6M 6W • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 9W • Intel® Core™ i3-N350 3.90GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N355 3.90GHz 8Cores 8Threads 6M 9W/15W • Intel Atom® x7213E 3.20GHz 2Cores 6M 10W • Intel Atom® x7211E 3.20GHz 2Cores 6M 6W • Intel Atom® x7425E 3.40GHz 4Cores 6M 12W Chipset • Intel® Twin Lake platform (SOC)
Graphics • Intel® UHD Graphics • HDMI® 2.1, supporting a maximum resolution of 4K @60Hz • 2 x DP 1.4, supporting a maximum resolution of 4K @60Hz (Option: 1 DP + 1 VGA or 2 HDMI) Memory • 1 x DDR4 SO-DIMM • 4/8/16GB DDR4-3200 • Optional DDR5 up to 32GB
Network • Realtek®RTL8125BG-CG for 2.5G Ethernet, Realtek®RTL8111H for 1G Ethernet Storage • M.2-2280 for NVMe/SATA SSD
Audio • Realtek ALC897 HD Audio • 2 x 3.5mm Analog Stereo Audio jack Back Panel I/O • 2 x USB 3.2 ports • 2 x LAN ports • 2 x DP 1.4 port (Option: 1 DP + 1 VGA) • 1 x HDMI® 2.1 ports • 1 x DC-In Power Connecter
Other I/O • 2 x USB 3.2 ports (Front) • 2 x USB 2.0 ports (Front) • 1 x Type-C (Front) • 1 x 3.5mm Analog Stereo Audio jack (Front) • 2 x DB9 RS-232 COM ports (Side) System BIOS • AMI® BIOS
Chassis • 1" Slim Booksize • Dimensions: 30(H)x200(W)x148(D)mm (1.1”x7.8”x5.8”)·Form weight: 2.5 lbs., Gross: 6.8 lb. • Silent Cooling Design • Supports VESA/DIN/wall mount brackets Power Supply • Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11 Pro/IoT-LTSC, Linux Applications • Digital Signage, Edge AI, Home / Office Mini PC, AI-IoT, Entertainment PC, etc.
Environment • Operating Temperature: 0 to +60 C (Please contact product specialist for details) • Non operating temperature: -40 to +80 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
