Processor
• AMD Zen 5 Ryzen™ 7000/8000/9000 Processor Socket AM5 LGA1718 • AMD Ryzen™ 9 9950X 16C/32T 4.30/5.70GHz 64M CPU 170W • AMD Ryzen™ 9 9900X 12C/24T 4.40/5.60GHz 64M CPU 120W • AMD Ryzen™ 7 9700X 8C/16T 3.80/5.50GHz 32M CPU 65W

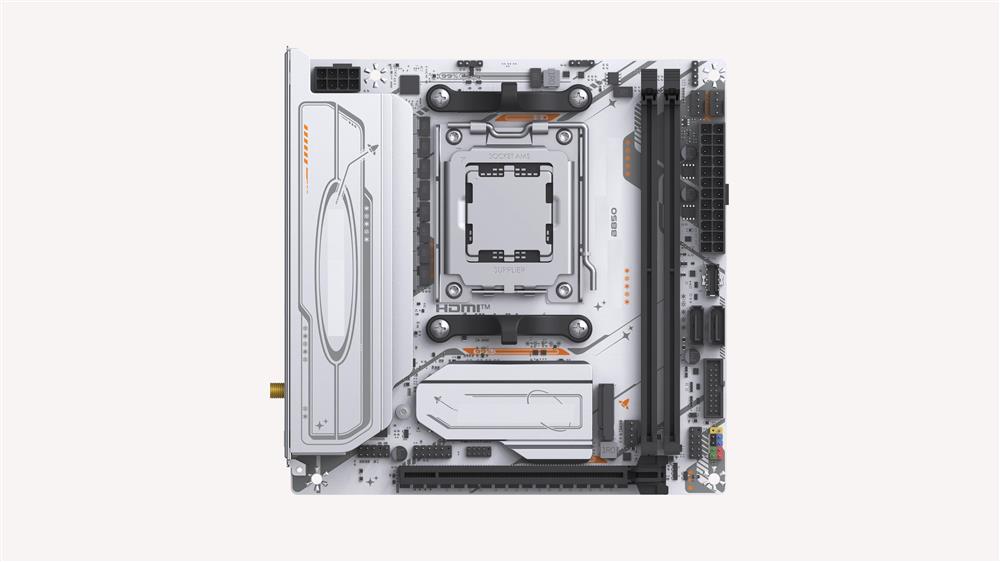

Chipset
• AMD B850 Chipset
|
Graphics
• Shared memory for processors with integrated graphics. • 1 x HDMI® 1.4 port, supports a max resolution of 4096x2160 @30Hz • 1 x DP Port , suppors a max resolution of 4096x2160 @60Hz
Memory
• 2 x DDR5 DIMM • 6400+(OC) unbuffered non-ECC (Dual Channel I/O) • Supports up to 96GB
|
Network
• 1 x Realtek 8125B/D Gigabit Ethernet (10/100/1000/2500Mbit) • 802.11ax WiFi6E+Bluetooth5.2 • 1 x Vertical M.2 2230 (Taken by WiFi+BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x PCI Express 5.0 x16 slot • 1 x Vertical M.2 2230 (for WiFi+BT or Other Module) • 2 x M.2 slots supporting PCIe 4.0 x4/x2 SSDs (2242/2280).
|
Storage
• 2 x SATA 6Gb/s supports RAID 0 ,1 • 2 x M.2 2242/2280 (for PCIe Gen5x4 128Gb/s NVMe) • M.2 NVMe supports RAID 0, 1, 10
Audio
• Realtek® ALC897 Support for simultaneous front/rear audio output. • Rear audio ports: LINE IN, LINE OUT, MIC IN
|

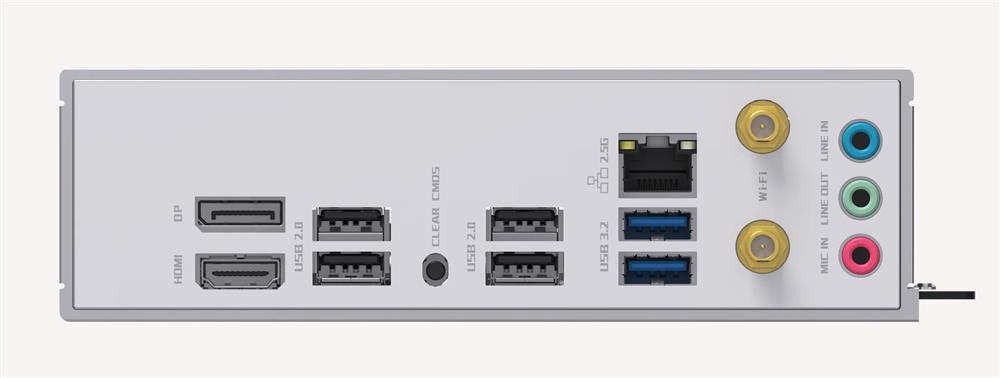

Back Panel I/O
• 2 x USB 3.2 Gen.1 ports • 4 x USB 2.0 ports • 1 x HDMI® 1.4 port • 1 x DP port • 1 x LAN port • 3 x 3.5mm Audio jacks
Internal I/O
• 1 x USB 3.2 Gen1 header • 1 x Type-C USB 3.2 Gen2x2 header • 1 x USB 2.0 header
|
Other I/O
• 2 x USB 3.2 Gen2 ports (Front) • 1 x Type-C USB 3.2 Gen2x2 port (Front) • 2 x USB 2.0 ports (Front)
System BIOS
• AMI® UEFI 256Mb BIOS with GUI support
|

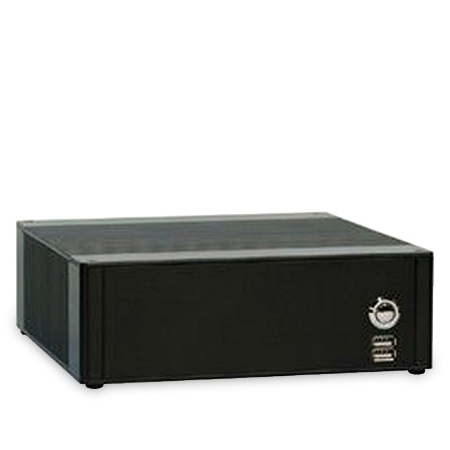

Chassis
• 400B Small Form Factor Aluminum Chassis • Dimensions: 8.10"(W) x 8.10"(D) x 2.60"(H). Weight: 1.6 lb. (Net) 4 lb. (gross with packaging) • Drive Bay: 2.5" • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA, wall mount or rackmount bracket • Option: 300B Aluminum 2.1"(H), 300A w/Slim DVD Bay, 300R with RISER Slot • Option: 500B 3.5"(H) w/LP Slot, 500A DVD Bay +LP Slot, 500D with 5.25" Bay, 500F Dust Filter, 500C LCD Control • Option: 1750C with slot
|
Power Supply
• Power: DC12V 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional 90V-240V 220W or higher wattage AC Power Supply • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10/11 64-bit and Ubuntu 64-bit operating systems
|
Applications
• AI-IoT, Digital Signage, POS/Kiosk, Surveillance, IPTV, AV Player, High-End Gaming, etc.
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
