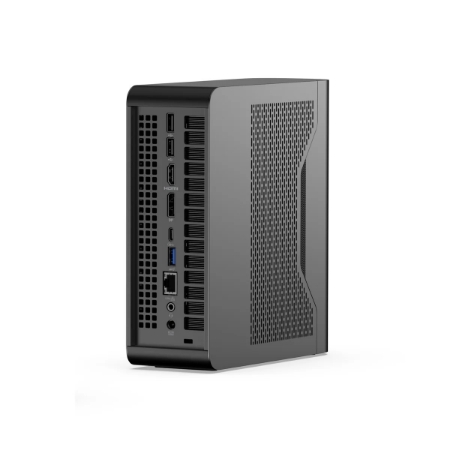

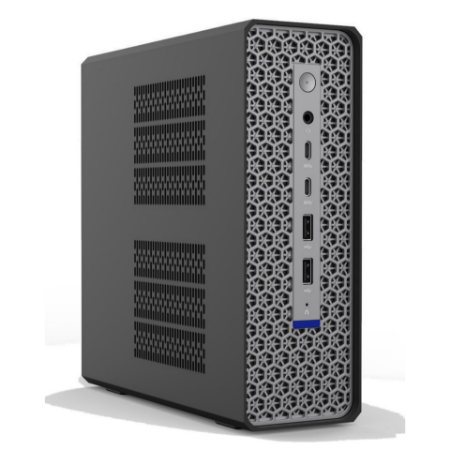

Picture of Mini-AI935Max

Picture of Mini-AI935Max

Picture of Mini-AI935Max

Mini-AI935Max

AMD Ryzen™ AI Max+ 395 Mini Workstation

Featured Highlights
	AMD Ryzen™ AI Max+ 395 (16C/32T, 5.1GHz max).
	Radeon 8060S Graphics, 50 TOPS NPU, 126 TOPS overall
	8 x 16GB LPDDR5-8000MHz, up to 128GB
	2TB NVMe SSD, expandable to 8TB
	1 x Intel® I226-V 2.5G LAN
	Wi-Fi 7, BT5.4, HDMI 2.1, USB-C 4.0
	Power Supply: DC19V input
	OS Support: Windows 11 pro, Linux
	Applications: AI-IoT, Digital Signage, POS/Kiosk, IPTV, Traffic Controller, etc.

SKU: Mini-AI935Max

Specifications
Request for Info

Product specifications

Processor • AMD Ryzen™ AI Max+ 395 (16 Core, 32 Threads, 80M Total Cache, Up to 5.1 GHz) Graphics • AMD Radeon 8060S Graphics • AMD Ryzen™ AI (NPU TOPS: 50 TOPS, Overall TOPS: up to 126 TOPS) • Supports 4 Displays • 1 x DP 1.4, 1 x HDMI 2.1, 2 x Type-C to (HDMI/DP) • Supports 8K @60Hz, 4K Max @240Hz • Supports Dolby® Vision
Memory • 8 x DDR5 SO-DIMM 5600MHz Slots • Supports up to 128GB Network • 1 x Intel® I226-V 2.5G LAN • M.2 2230 RZ717 Triple Band Wi-Fi 7 (2.4GHz/5GHz/6GHz), BT5.4
Expansion Slot • 1 x M.2 2230 Slot Storage • 2TB M.2 2280 PCIe 4.0×4 NVMe SSD • 2 x M.2 2280 PCIe 4.0×4 NVMe SSD Slot
Audio • 1 x audio Back Panel I/O • 1 x HDMI® 2.1 ports • 1 x DP 1.4 ports • 1 x USB-A 3.2 • 2 x USB-A 2.0 • 1 x 2.5G LAN • 1 x Audio • 1 x USB-C 4.0 ( 15W Output, DP 8K@60Hz, 40Gbps) • 1 x 1100~240V, 50~60Hz, 240W DC IN
System BIOS • Watchdog supported Chassis • Nano size enclosure 205(W) x 192(D) x 70(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available
Power Supply • Power: 100-240V, DC19V 6.3A 240W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, Linux
Applications • AI-IoT, Digital Signage, POS/Kiosk, IPTV, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • AMD Ryzen™ AI Max+ 395 (16 Core, 32 Threads, 80M Total Cache, Up to 5.1 GHz) Graphics • AMD Radeon 8060S Graphics • AMD Ryzen™ AI (NPU TOPS: 50 TOPS, Overall TOPS: up to 126 TOPS) • Supports 4 Displays • 1 x DP 1.4, 1 x HDMI 2.1, 2 x Type-C to (HDMI/DP) • Supports 8K @60Hz, 4K Max @240Hz • Supports Dolby® Vision
Memory • 8 x DDR5 SO-DIMM 5600MHz Slots • Supports up to 128GB Network • 1 x Intel® I226-V 2.5G LAN • M.2 2230 RZ717 Triple Band Wi-Fi 7 (2.4GHz/5GHz/6GHz), BT5.4
Expansion Slot • 1 x M.2 2230 Slot Storage • 2TB M.2 2280 PCIe 4.0×4 NVMe SSD • 2 x M.2 2280 PCIe 4.0×4 NVMe SSD Slot
Audio • 1 x audio Back Panel I/O • 1 x HDMI® 2.1 ports • 1 x DP 1.4 ports • 1 x USB-A 3.2 • 2 x USB-A 2.0 • 1 x 2.5G LAN • 1 x Audio • 1 x USB-C 4.0 ( 15W Output, DP 8K@60Hz, 40Gbps) • 1 x 1100~240V, 50~60Hz, 240W DC IN
System BIOS • Watchdog supported Chassis • Nano size enclosure 205(W) x 192(D) x 70(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available
Power Supply • Power: 100-240V, DC19V 6.3A 240W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, Linux
Applications • AI-IoT, Digital Signage, POS/Kiosk, IPTV, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
