Nano-U16FL2V3 - Rugged Mini Media Player for Digital Signage PC (Nano-U300FL2V3)

Intel® Core™ 5 320 / Core™ 3 304 Fanless Mini PC, Intel® Iris® Xe Graphics, Dual HDMI + 1 x DisplayPort, 2 x Intel 2.5 GbE LAN, 8 USB Ports, M.2 NVMe + 2.5-inch SATA Storage

Featured Highlights
	Intel® Core™ 5 320 / Core™ 3 304 Processors
	Intel® Core™ Series 3 U-family Platform (SoC)
	Intel® Iris® Xe Graphics, 2 x HDMI + 1 x DP
	1 x DDR5 SO-DIMM Slot for up to 64GB Memory
	1 x M.2-2280 NVMe SSD + 1 x 2.5-inch SATA SSD/HDD, up to 2 storage devices
	Dual Intel® I226-V 2.5GbE LAN, M.2 Wi-Fi/Bluetooth
	4 x USB 3.0 + 4 x USB 2.0 Ports, 2 x DB9 RS-232 Seria Ports
	1 x SPK + 1 x MIC, High Definition Audio Controller
	100–240VAC, 19V/4.7A 90W Power Adapter
	OS Support: Windows 11, Windows 10 and Linux
	Applications: Network Appliance, Digital Signage, POS/Kiosk, IoT/Edge System, etc.

In Stock

SKU: Nano-U16FL2V3

Nano-U16FL2V3

is a compact fanless mini PC powered by an Intel® Core™ 5 320 or Core™ 3 304 processor. It features Intel® Iris® Xe Graphics with two HDMI outputs and one DisplayPort output, dual Intel® I226-V 2.5GbE LAN, four USB 3.0 ports, four USB 2.0 ports and two DB9 RS-232 COM ports. Storage options include one M.2-2280 NVMe SSD and one 2.5-inch SATA SSD/HDD. It also supports M.2 Wi-Fi/Bluetooth and optional 3G/4G/5G connectivity through an M.2-3042 B-Key slot with SIM support. Its fanless aluminum enclosure is suitable for network appliance, digital signage, POS/kiosk and IoT/edge system applications.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ 5 processor 320, 4.6 GHz, 6 cores, 6MB cache, 28W • Intel® Core™ 3 processor 304, 4.3 GHz, 5 cores, 6MB cache, 28W Chipset • Intel® Core™ Series 3 U-family SoC
Graphics • Intel® Iris® Xe Graphics • 2 x HDMI outputs • 1 x DP output Memory • 1 x DDR5 SO-DIMM slot • Supports up to 64GB
Network • 2 x Intel® I226-V 2.5GbE LAN • 1 x M.2-2230 slot for Wi-Fi/BT • PXE Boot and Wake on LAN supported Expansion Slot • 1 x M.2-2230 slot for Wi-Fi/Bluetooth • 1 x M.2-3042 B-Key slot for an optional 3G/4G/5G module with SIM support
Storage • 1 x M.2-2280 NVMe SSD • 1 x 2.5-inch SATA SSD/HDD bay • Supports up to 2 storage devices Audio • High Definition Audio Controller • 1 x microphone-in jack • 1 x audio-out jack

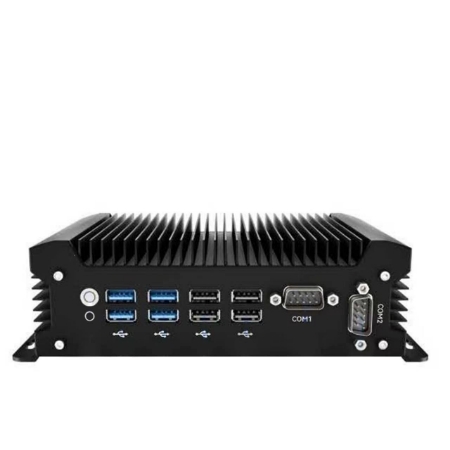

Back Panel I/O • 2 x HDMI ports • 1 x DP port • 2 x Intel® I226-V 2.5GbE LAN ports • 1 x audio-out jack • 1 x microphone-in jack • 2 x Wi-Fi antenna connectors Other I/O • 4 x USB 3.0 ports • 4 x USB 2.0 ports • 2 x DB9 RS-232 Seria ports
Chassis • Fanless aluminum enclosure • Dimensions: 193.9mm (W) x 127mm (D) x 57.2mm (H) • Net weight: 1.5kg; Gross weight: 2.0kg • Color: Black • Supports VESA, DIN, wall mount or rackmount brackets Power Supply • Power: 100–240VAC input; 19V/4.7A, 90W power adapter • 12V/19V DC-in jack
OS Support • Windows 11/10, Linux Applications • Network Appliance, Digital Signage, POS/Kiosk, AI-IoT/Edge System, Client Computing, etc.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
