Nano-UC14L2V3c Meteor Lake-H 4K Mini Digital Signage PC

14th/15th Gen Meteor/Arrow Lake-U/H, Arc® 8K Graphics, 3 Display 2 M.2-NVMe, 2LAN+M.2 WiFi/BT, ThunderBolt 4.0 Type-C, HDMI+DP

Featured Highlights
	14th/15th Gen. Intel® Core™ Ultra i9/i7/i5-U/H Processor
	Intel® Meteor Lake / Arrow Lake Platform (SOC)
	Intel® Arc® 8K Graphics, HDMI 2.1 + 1 DP 2.1 + Type-C 3 Display
	2 DDR5 SO-DIMM for up to 96GB Memory
	2 M.2-2280 SSD/NVMe x4
	2 Intel 2.5G LAN (support vPro) + M.2 WiFi/BT
	3 USB 3.2, 2 USB 2.0, 1 Type-C (USB 3.2)
	2 x 3.5mm HD Audio Jacks
	DC12V or DC19V Power (UL/CE/FCC Certified)
	OS Support: Windows11/Windows10/Linux
	Applications: For SoHo PC, Digital Signage, Network Security, POS/Kiosk, Edge AI, IoT, etc.

SKU: Nano-UC14L2V3c

Nano-UC14L2V3c

Features 14th/15th Gen. Meteor/Arrow Lake-U/H, Arc™ Graphics, DP+ HDMI+Type-C Display, 2 LAN with M.2 2230 WiFi & BT + 3 USB, 32GB Memory. This is a Meteor Lake 4K Mini Digital Signage PC. This System is Perfect for Digital Signage, Edge AI, Audio/Video PC, AI-IoT.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-165H vPro 1.4/5GHz 16 Cores 22 Threads 24M 20/28W • Intel® Core™ i7-155U 1.7/4.8GHz 12 Cores 14 Threads 12M 12/15W • Intel® Core™ i5-135H vPro 1.7/4.6GHz 14 Cores 18 Threads 18M 20/28W • Intel® Core™ i5-125U 1.3/4.3GHz 12 Cores 14 Threads 12M 12/15W • Intel® Core™ i7-265H vPro 1.7/5.3GHz 16 Cores 16 Threads 24M 20/28W • Intel® Core™ i7-255U 1.7/5.2GHz 12 Cores 14 Threads 12M 12/15W • Intel® Core™ i5-235H vPro 1.8/5GHz 14 Cores 14 Threads 18M 20/28W • Intel® Core™ i5-225U 1.3/4.8GHz 12 Cores 14 Threads 12M 12/15W Chipset • Intel® Meteor Lake / Arrow Lake Platform (SOC)
Graphics • Intel® Arc® 8K Graphics • Support 3 Display • 1 x HDMI 2.1 8K 60Hz • 1 x DP 2.1 8K 60Hz • 1 x Type-C (ThunderBolt 4.0) support HDMI/DP 4K/8K • Option: Additional Graphics by M.2 Module Memory • 2 x DDR5 SO-DIMM, up to 96GB • 5600MHz unbuffered non-ECC (Dual Channel I/O)
Network • 2 x Intel® i226V 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • vPro supported • 1 x M.2 2230 (for Wi-Fi 4/5/6/7 + BT or Other Module) • Option: 1 x M.2-2280 for additional LAN module • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2-2280 PCIe 4.0 x4 for NVMe SSD or other add-on • 1 x M.2 2280 PCIe 3.0 x4 for NVMe/SATA SSD or other add-on • 1 x M.2 2230 (for Wi-Fi + BT or Other Module) • 1 x Type-C ThunderBolt 4.0 support Type-C Hub for other I/O
Storage • 1 x M.2 2280 (for PCIe 4.0 x4 NVMe SSD) • 1 x M.2 2280 (for PCIe 3.0 x4 NVMe or SATA SSD) Audio • Realtek HD 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks

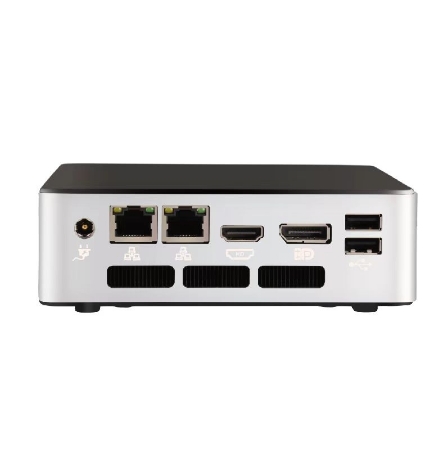

Back Panel I/O • 2 x USB 2.0 • 1 x DP 2.1 • 1 x HDMI 2.1 • 2 x RJ45 LAN • 1 x DC-In 2.5mm Power Connector Other I/O • 3 x USB 3.2 Gen 2 (Front) • 1 x Type-C (3.2) ThunderBlot 4.0 (Front) • 2 x 3.5mm Audio in/Out (Front) • 1 x Power Button with Power LED (Front)
System BIOS • AMI® UEFI 128MBit BIOS • Watchdog supported Chassis • Nano Chassis with blower fan 5.5”(W) x 4.95”(D) x 1.55”(H) • Option: Aluminum Fanless for u-series CPU no Turbo Mode • Net Weight: 3lb (net) 6lb (gross with packaging) • Color: Silver/Black (other color and custom logo are available with MOQ orders) • Supports VESA/wall-mount/DIN, mini-1U Tray (order separately)
Power Supply • Power: DC12V or DC19V 60W-120W Power Adapter 2.5mm plug (UL/CE/FCC Certified) Optional with Lock • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows11/Windows10/Linux
Applications • SoHo PC, Digital Signage, Network Security, POS/Kiosk, Edge AI, OpenVino, IoT, etc Environment • Operating Temperature: -20 to +45C (Optional 60c) • Non-operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
