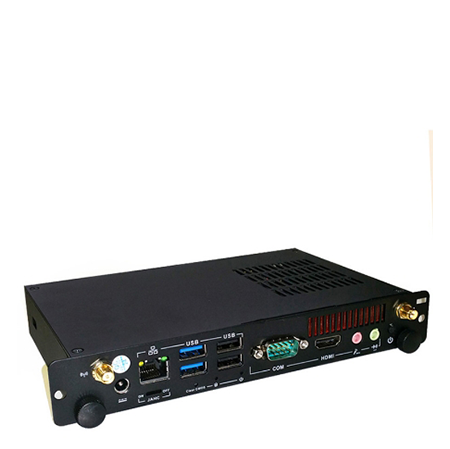

OPS

7.9"(W) x 4.7"(D) x 1.18"(H)
Featured Highlights
IntelĀ® OPS standard module
Dimensions: 1.18"(H) x 7.87"(W) x 4.68"(D)
DC12V or DC19V 60W Power Adapter(UL/CE/FCC Certified)
OS Support: Windows 10, IoT, Linux
Applications: Digital Signage, Set Top Box, Entertainment PC, etc.

SKU: OPS
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
OPS-H510/Q570 10/11th Socket 1200 H510 Q570 2 DDR4SO Intel UHD 750 1 Intel\I219LM 2-8 3 F+2 R 1 F+1 R 1 HDMI2.0/F+1 HDMI/R+1 DP/F TPM 5.1 ALC662
OPS-8000-S064 i7-8665u Whiskey Lake-u 2 DDR4SO Intel UHD 620 1 Intel/F\RTL8111F 1-4 1 2 F 2 F 1 OPS+1 DP/F 2 MiniPCIe TPM 5.1 ALC662
OPS-7000-S044 i7-7500u Kaby Lake-u 2 DDR4SO 7th Gen. HD 1 Intel/R\RTL8111F 1-4 1 2 R 2 R 1 OPS+1 HDMI/R 2 MiniPCIe TPM 5.1 ALC662
OPS-7000U i7-7500u Kaby Lake-u Skylake-u 2 DDR4SO Intel HD 620 1 Realtek/F 1 1 2 F 2 F 1 OPS+1 HDMI/F MiniPCIe 5.1 ALC662
OPS-3865A 3865u Kaby Lake-u 2 DDR4SO Intel HD 610 1 Realtek/F 1 1 2 F 2 F 1 OPS+1 HDMI/F MiniPCIe 5.1 ALC662
OPS-J5005/J4105 J5005 Gemini Lake 2 DDR4SO Intel UHD 605/600 1 Realtek 1-8/4 1 2 R+2 F 2 R+2 F 1 OPS+1 HDMI MiniPCIe 5.1 ALC662
OPS-J1900 J1900 Bay Trail 2 DDR3SO 7th Gen. HD 1 Realtek/F 1 2 F 1 F 1 HDMI/F MiniPCIe 5.1 ALC662
OPS-Z83 x5-Z8350 Cherry Trail 0 DDR3OB Integrated 1 RJ45 1 5 R 1 R 1 HDMI2.0+1 VGA MiniPCIe 5.1 ALC662
OPS-X9 RK3288 RK3288 0 DDR3OB 4 Core Mali-T7 1 RJ45+11ac WiFi+BT 4.0 2 R 2 R 1 HDMI2.0 5.1 HDMI
OPS-8000 i7-10710U Comet Lake 2 DDR4SO Intel UHD 620 1 Intel\I219LM 1 1 F 3 F 1 OPS/R + 1 HDMI/F ALC662
OPS-U10S i7-10710U Comet Lake-u 2 DDR4SO Intel UHD 620 1 Intel\I219LM 1-8/4 1 F 3 F 1 OPS/R+1 HDMI/F TPM 5.1 ALC662
OPS-U11A i7-1185G7 Tiger Lake Platform SOC 2 DDR4SO Iris Xe Dual LAN+M.2 WiFi+M.2 4G-LTE w/ SIM 1 M.2 2280 1 F 3 F 80pin JAE+HDMI 2.0+Type-C TPM 5.1 ALC662

Support Models

*
*
*
