236F3

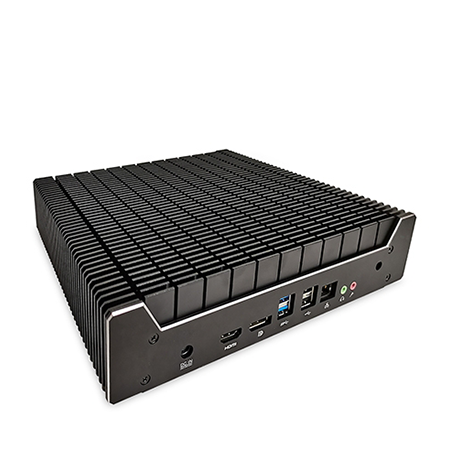

Fanless Chassis for Socket-S Core i5/i7 Products
Featured Highlights

Dimensions:
10"(W) x 8.85"(D) x 2.36"(H)
ITX Fanless Case for Slim ITX Socket-S MB
M.2 or mSATA SSD Drive Bay
Built-in DC to DC Converter
DC12-19V Fanless Power Adapter
Net weight: 7 lb, packaging weight 10 lb.
Color: Black (Custom colors available with special order)
OS support: Windows 10, 8,  7,  XP,  Embedded, Linux, FreeBSD, Solaris.
Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone
SKU: 236F3
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 2-8 2 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
H410A1 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 1 Reltek\RTL8111F 1 2 4R 2R+2F 1 DP + HDMI LPT/S 5.1 ALC662
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 2-8 1 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 2-8 1 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
H310A1 8/9th Socket 1151 H310 1 DDR4SO Intel UHD 630 1 Intel\i219V 1 2 4 H 4 R+2 H 1 HDMI+1 VGA/H+1 LVDS/H 5.1 ALC662
H310A 8/9th Socket 1151 H310C 2 DDR4SO Intel UHD 630 1 Realtek 1-8/6-NVMe 2 2 R+5 H 2 R+2 H 1 HDMI+1 DP+1 LVDS TPM 7.1 ALC887
H110AEL2/i1000A12 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Intel\i219V+1 Intel\i211AT 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH MiniPCIe+PCIe 4x GPIO 7.1 ALC887
Q170A 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
H110A1/i1000A10 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Realtek 2-8 1 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe 7.1 ALC887
HM170L2/AEL2 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 1 3 R 2 H+2 H/R 2 R+4 H 1 DP+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
HM170L4 i5-6300HQ HM170 2 DDR4SO Intel HD 530 1 RJ45+option:1 RJ45 1 3 R 2 H+2 H/R 2 R+4 H 1 DP/H+1 HDMI+1 VGA+1 LVDS/H 1x MiniPCIe+1x PCIe 3.0x16 1xPS/2/H+TPM+GPIO 5.1 ALC662
i2310 i7-6700HQ QM170 2 DDR4SO Nvidia GTX960M 1 Realtek 2 1 2 R 2 R+2 F 1 HDMI+1 DP+1 Type-C TPM Azalia Codec
i2311 6/7/8/9th Socket 1151 H310C 1 DDR4SO Nvidia GT1030 1 Realtek\RTL8111H 1 2 H 4 R 1 HDMI+1 LVDS/H 5.1 ALC662
Slim-A320A Socket AM4 Ryzen 3rd AMD A320 2 DDR4SO Radeon Vega 1 Realtek\RTL8111H 1-4/6/8 1 5 H 4 R 1 HDMI+1 LVDS/H 2.1 ALC269
Slim-H510B/Q570B i9-11900T Intel H510 2 DDR4SO Intel UHD 750 2 Intel I219LM + 1 M.2 2230 + WiFi/BT 1 2 R + 3 F 2 R + 1 F 2 HDMI + 1 DC + 2 Lan ALC662
Z590L2 10/11th Socket 1200 Z590 2 DDR4 Intel UHD 750 1 Reltek\RTL8125BG+1 Intel\i219V+11ac WiFi/BT 2-8+U2-8 4 R 1 R+2 H 4 R+2 H 1 HDMI+1 DP1.4 PCIe 16x 7.1 ALC897
B560E 10/11th Socket 1200 B560 2 DDR4 Intel UHD 750 1 Intel\i219V+11ac WiFi/BT 2-8 4 R 2 R+2 H 2 R+2 H 1 HDMI+1 DP1.4 PCIe 16x 1xPS/2 7.1 ALC897
Z490L2 11th/10th Socket 1200 Z490 2 DDR4 Intel UHD 630 1 Reltek\RTL8125BG+1 Intel\i219V 2-8 4 R 2 R+2 H 5 R+2 H 1 HDMI+1 DP PCIe 16x 1xPS/2 7.1 ALC1220
Z490E3 11th/10th Socket 1200 Z490 4 DDR4 Intel UHD 1 Intel\i225-V 2-4/6/8/10 6 R 1 R 4 H 1 HDMI+1 DP 3 PCIe 16x+1 PCIe 4x+1 PCIe 1x 7.1 ALC892
H470L2G 11th/10th Socket 1200 H470 2 DDR4 Integrated 2 Intel+11ac WiFi/BT 2-6/8 4 R 1 H 4 R+1 H 2 HDMI+1 DP PCIe 16x TPM 7.1 ALC1220
H470x 11th/10th Socket 1200 H470 4 DDR4 Intel UHD 1 Intel\i219V 2-8 6 R 2 R+2 H 3 R+4 H 1 HDMI+1 DP+1 VGA 2 PCIe 16x+2 PCIe 1x TPM+1xPS/2 7.1 ALC1200
H410AL2 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 2 Realtek\RT8111H 1 2R 2R+2F 1 HDMI+1DP/VGA Option: LPT/S 5.1 ALC662
H410A 10th Gen Socket 1200 H410 2 DDR4SO Intel UHD 630 Realtek\RTL8111F + WiFi 1 4R 2R + 2F HDMI + DP/VGA 5.1 ALC662
H310G 8/9th Socket 1151 H310 2 DDR4 Intel UHD 630 1 Intel\i219V+11ac WiFi/BT 1 4 2 R+2 H 2 R+2 H 1 DP+1 HDMI+1 DVI PCIe 16x 1xPS/2 7.1 ALC887
H310E2 8/9th Socket 1151 H310 2 DDR4 Intel UHD 630 1 Realtek\RTL8111H 2-8 4 4 R+1 H 2 R+1 H 1 DVI+1 HDMI+1 VGA PCIe 16x+PCIe 1x 1xPS/2+TPM 7.1 ALC887
H310CAL2 6/7/8/9th Socket 1151 H310C 2 DDR4SO Intel UHD 2 Realtek\RTL8111H 1 2 R 2 R+2 F 1 DP+1 HDMI LPT/S 5.1 ALC662
H310CA 6/7/8/9th Socket 1151 H310C 2 DDR4SO Intel UHD 1 Realtek\RTL8111H 1 4 R 2 R+2 F 1 DP+1 HDMI LPT/S 5.1 ALC662
H310CA6 6/7/8/9th Socket 1151 H310C 1 DDR4SO Intel UHD 1 Realtek\RTL8111H 1B 2 4 H 4 R 1 HDMI+1 VGA+1 LVDS/H 5.1 ALC662
B360L2 8/9th Socket 1151 B360 2 DDR4 Intel UHD 630 1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT 1 4 2 R+2 H 4 R+2 H 2 HDMI PCIe 16x 1xPS/2 7.1 ALC887
B365AL2 6/7/8/9th Socket 1151 B365 2 DDR4SO Integrated 2 Realtek\RTL8111H 1-4/6/8 2 4 H 4 R+2 H 1 DP+1 HDMI+1 LVDS/H TPM 2.1 ALC269
H370L2G 8/9th Socket 1151 H370 2 DDR4 Intel UHD 630 2 Intel+11ac WiFi/BT 2 4 R 2 H 4 R+2 H 1 HDMI2.0+1 HDMI+1 DP PCIe 16x TPM 7.1 ALC1220
H370L2 8/9th Socket 1151 H370 2 DDR4 Intel UHD 630 1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT 1 6 R 2 R+2 H 6 R+2 H 2 HDMI+1 DP PCIe 16x 1xPS/2+TPM 7.1 ALC892
Q370L3E2 8/9th Socket 1151 vPro Q370 2 DDR4SO Intel UHD 630 1 Intel\i219V+2 Intel\i210AT 1-4/8 4 2 R+4 H 4 R+1 H 2 DP+1 DVI+1 LVDS/H 1 PCIe 16x+1 PCIe 4x GPIO+LPT 7.1 ALC888
Q370L2 8/9th Socket 1151 vPro Q370 2 DDR4SO Intel UHD 630 1 Intel\i219LM+1 Intel\i210AT 1-4/8+1-2 5 R 4 H 2 R+2 H 1 DP+1 HDMI+1 DVI PCIe 16x TPM 7.1 ALC888
Z390L2 8/9th Socket 1151 Z390 2 DDR4 Intel UHD 630 1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT 1 6 R 2 R+2 H 5 R+2 H 2 HDMI+1 DP PCIe 16x TPM+1xPS/2 7.1 ALC892
B250G Socket 1151 Kaby Lake B250 2 DDR4 Intel HD 630 1 Intel 1 4 2 R+2 H/F 4 R+2 H 1 HDMI+1 DP PCIe 16x 7.1 ALC892
Slim-H110A2 6/7th Socket 1151 H110 1 DDR4SO Intel HD 530 Intel HD 630 1 Realtek\RTL8111F 2-8 1 4 H 4 R 1 HDMI+1 VGA+1 LVDS 1 MiniPCIe+1 MiniPCIe-F 5.1 ALC662
H110L2 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2-8 1 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
H110L2V 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek\RTL8111H 2-8 1 2 R+4 H 4 R 2 DP+1 VGA+1 HDMI/H MiniPCIe+PCIe 16x 5.1 ALC662
H110L3 6/7th Socket 1151 H110 B150 2 DDR4SO Intel HD 530 Intel HD 630 3 Realtek 1-4 2 2 R+2 H 4 R 1 DP+1 HDMI+1 eDP/H PCIe 16x+PCIe 1x 1xPS/2/H+GPIO+LPT 5.1 ALC662
H110A/i1000A11 6th Gen Socket 1151 H110 2 DDR4SO Intel HD 530 Intel® i219V 1 4H 4R DP + HDMI+VGA Header PCIe 3.0 x4 + MiniPCIe 7.1 ALC887
H110L2A/i1000A13 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 2-8 1 6 H 2 R 1 HDMI+1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H110L2C12 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 2-8 1 2 R+2 H 4 R 1 DP+1 HDMI+1 VGA 2 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
Q170L2 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 1 5 R 4 H 4 R+2 H 1 DP+1 HDMI+1 DVI MiniPCIe+PCIe 16x GPIO+TPM 7.1 ALC888
B150V3 6/7th Socket 1151 B150 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2-8 1 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
Q170A2-3HDMI 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 2 HDMI+1 HDMI2.0+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
i1000Q10 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
B8500L4/H8100L4 Socket 1150 Haswell B85 4 DDR3 Intel HD 5000 4 Intel\i350 2-8 1 4 H 2 R 1 HDMI+1 DP+1 VGA 1 MiniPCIe+PCIe 8x TPM 5.1 ALC662
H8100L2/H8100L3 Socket 1150 Haswell H81 2 DDR3 Intel HD 5000 2 Realtek 2-8 1 4 R+1 H 2 R 1 HDMI+1 DVI+1 VGA 1 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
Nano-H510A/Q570A 11th/10th Socket 1200 H510/Q570 2 DDR4 Intel UHD 750 1 Intel\I219LM 2-8 3F 1F 1 HDMI2.0/F+1 DP/F M.2-2280+M.2-2230 TPM 5.1 ALC662
