 Think Big. Go Small. Eco-Smart Computing

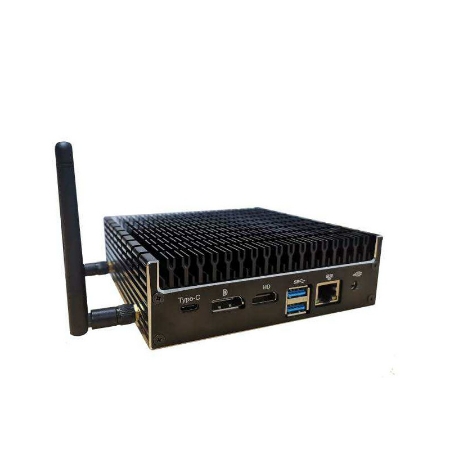

Nano-U10F

10/8th Gen Core u, DP+HDMI, 6 USB+LAN, M.2 NVMe+SATA
Featured Highlights
Intel® Core™ i7/i5/i3/Celeron/Pentium-u Processor
Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color, HDMI+DP
2 x DDR4 SO-DIMM for up to 64GB Memory
SATA-6Gb/s, M.2 SSD/NVMe
Gigabit LAN + M.2-WiFi
2 USB 3.0, 2 USB 2.0
2.1 ALC269 Audio Sound
DC19V 2.1A 40W or higher wattage Power Adapter(UL/CE/FCC Certified)
  Optional DC12V 2.5mm AC Adapter
OS Support: Windows 10, IoT, Linux
Applications: Digital Signage, Set Top Box, etc.

Starts at Call for pricing Options(800-999-1278)
SKU: Nano-U10F
Product specifications
Attribute name Attribute value
Processor
• Intel® Core® i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W
• Intel® Core® i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W
• Intel® Core® i3-10110u 2.10/4.20GHz 2Core 4Threads 4M 10/15/25W
• Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 12.5/15W
• Intel® Celeron® 4205u 1.80GHz 2Core 2Threads 2M 12.5/15W
• Intel® Core® i7-8550u 1.80/4.00GHz 4Core 8Threads 8M 10/15/25W
• Intel® Core® i5-8250u 1.60/3.40GHz 4Core 8Threads 6M 10/15/25W
• Intel® Core® i7-7500u 2.70/3.50GHz 2Core 4Threads 4M 7.5/15/25W
• Intel® Core® i5-7200u 2.50/3.10GHz 2Core 4Threads 3M 7.5/15/25W
• Intel® Core® i3-7100u 0.80/2.40GHz 2Core 4Threads 3M 7.5/15W
• Intel® Celeron® 3865u 1.80GHz 2Core 2Threads 2M 10/15W
Chipset
• Intel® Comet Lake-u Platform (SOC)
• Option: Intel® Whiskey Lake Platform (SOC)
Graphics
• Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color
• Support 2 Graphics ports
• 1 x HDMI, supporting a maximum resolution of 1920x1080 Support for HDMI 1.4 version and HDCP 2.2
• 1 x DP 4K 60Hz Graphics Port
Memory
• 2 x DDR4 SO-DIMM
• 2666/2400/2133MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 64GB
Network
• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 for WiFi+BT or Other Module
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 1 x M.2 2230 for WiFi+BT or Other Module
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Storage
• 1 x SATA 6Gb/s
• 1 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Audio
• Realtek® ALC269 Audio Codec
• 1 x 3.5mm analog stereo audio jack(Front)
Back Panel I/O
• 1 x HDMI port
• 1 x DP port
• 1 x LAN port
• 1 x DC-In Jack port
Other I/O
• 2 x USB 3.0 Ports (Front)
• 2 x USB 2.0 Ports (Front)
• 1 x 3.5mm jack(Front)
System BIOS
• AMI® UEFI 64MBit / Legacy BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
• Watchdog supported
Chassis
Nano-F6 Chassis Enclosure
• Dimensions: 1.54(H) x 4.96(W) x 5.43(D) inch(deep dimension can changeable), Weight: 1.5 lb (net) 5lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Option: Nano-F5/H/HD 4.96"Dx5.43Wx1.65H ,Nano-F7S 8.27"Hx6.3"Wx1.38"D ,Nano-F8 5.43"Wx5.43Dx1.49H
Power Supply
• Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Optional DC12V 2.5mm AC Adapter
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10, IoT, Linux
Application
• Digital Signage, Set Top Box, etc.
Environment
• Operating Temperature: 0 to +40 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
