U7-11L6PoE - 7/8/10/11th Multi-LAN Fanless Mini PC

7/8/10/11th Gen u-seriesMemory, 6 LAN (4 are PoE port) for IP Camera, Visual AI computing

Featured Highlights
	Intel® Core™ i3/i5/i7 7/8/10/11th Gen u-series
	Intel® Lake-u Platform (SOC)
	Intel® UHD Gen. Graphics, HDMI +VGA
	2* DDR4 SO-DIMM Dual Channel
	SATA-6Gb/s, M.2 SSD/NVMe
	4 2.5GbE + 2 GbE LAN
	4 USB 3.0, 2 USB 2.0, 3 COM
	HD Audio
	DC12V-19V 65W Power Adapter (UL/CE/FCC Certified)
	OS Support: Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT
	Applications: High Speed Router, Firewall, VPN, Network Security, etc

SKU: U7-11L6PoE

U7-11L6PoE

Features 7/8/10/11th Gen Intel® Core™ i7/i5/i3/Pentium®/Celeron®-u processors (all formerly known as Comet Lake). This is perfect Fanless network Security Gateway and Mini PC etc. This Fanless tiny sized computer has impressive graphics with Intel® UHD Gen. Graphics, 4K/5K Resolution, HDR 10Bit color, HDMI+VGA, 6 LAN and up to 32GB of DDR4 memory.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i3/i5/i7 7/8/10/11th Gen u-series • Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 10/15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 10/15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 10/15/25W • Intel® Core™ i7-1165G7 2.80/4.70GHz 4Core 8Threads 12M 12/28W • Intel® Core™ i5-1135G7 2.40/4.20GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i3-1115G4 3.00/4.10GHz 2Core 4Threads 6M 12/28W Chipset • Intel® Comet Lake-u Platform (SOC)
Graphics • Intel® UHD Graphics • Support 2 Graphics ports • 1 x HDMI® • 1 x VGA Memory • 2 x DDR4 SO-DIMM • 2933/2666MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB
Network • 4 x Intel® i226 2.5 Gigabit (10/100/1000/2500 Mb/s) LAN • 2 x Intel® i211 Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe 3.0 x4 NVMe)
Audio • Optional 1 x 3.5mm Analog Stereo Audio jack Back Panel I/O • 4 x USB 2.0 Type-A (2xUSB 2 select 1 with front 2 USB 2.0) • 3 x COM (COM1-2 support RS485/422) • 8 x GPIO (4in/4out) • 1 Reset button
Other I/O • 2 x LAN intel 211 Gigabit，4 x LAN intel 226 for 2.5G PoE (Front) • 1 x HDMI ,1 x VGA (Front) • 4 xUSB 3.0，2 x USB2.0 Type-A (2 USB colay from Rear 2USB) (Front) System BIOS • AMI® UEFI BIOS • Watchdog supported

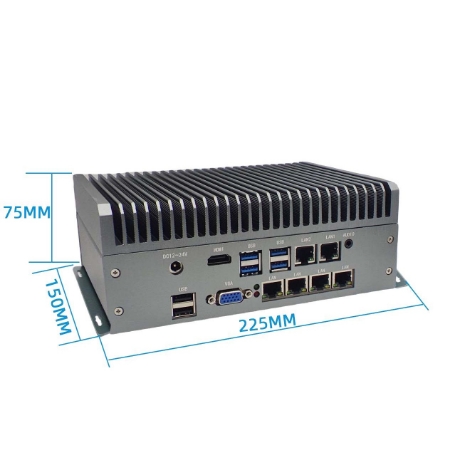

Systemboard • Small Form Factor Chassis • Dimensions: 225mm150mm75mm, Weight: 1.8 KG. (Net). (gross with packaging) • Color: Silver Grey, can be customized with MOQ required • Supports VESA/wall mount brackets • Aluminum with Cooling Fan
Power Supply • Power: DC12V-19V 65W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Linux, Windows 10 Pro/IoT, Window 11 Pro/IoT
Applications • High Speed Router, Firewall, VPN, Network Security, etc Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
