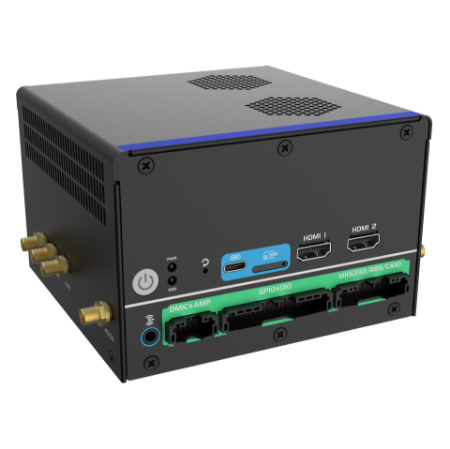

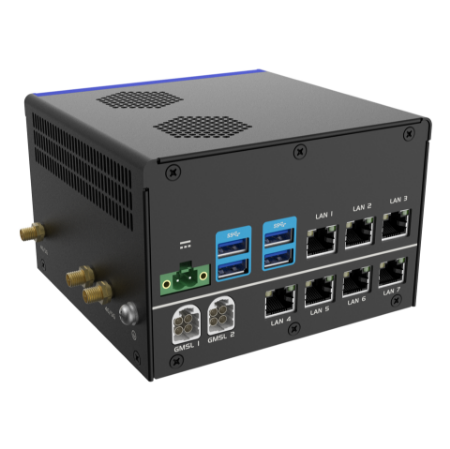

JSON-THOR7L - NVIDIA® Jetson Thor AI Edge PC

Nano ARM® , NVIDIA® Jetson Thor GPU, 2 x HDMI 2.1, 3 x LAN+WiFi+SIM, 4 x Type-A + TYPE C

Featured Highlights
	ARM® 12/14 Core Neoverse 64bit Processor
	System-on-Chip (SoC)
	Jetson Thor T4000 1536C/Jetson Thor T5000 2560C, 2 x HDMI 2.1 4960x2160 4K@60Hz
	64GB/128GB LPDDR5 Memory
	1 x M.2-2280 for NVME SSD
	7 LAN RJ45, WiFi-6 + SIM for 4G/5G LTE(Station/AP)
	4 x 3.2 Type-A , 1 x TYPE C , 1 x SIM Slot
	Power Supply: DC9-36V 2-pin Phoenix
	OS Support: Linux 22.04 (Jetpack 6.2) or newer version
	Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.

SKU: JSON-THOR7L

Specifications
Request for Info

Product specifications

Processor • ARM® 12Core Neoverse 64bit • ARM® 14Core Neoverse 64bit Chipset • System-on-Chip (SoC)
Graphics • 2 x HDMI 2.1 Out，up to 4k@60Hz • Ampere GPU, 64/128 GB LPDDR5X • Jetson Thor T4000 1536C ( 1200 TFLOPS)； • Jetson Thor T5000 2560C( 2070 TFLOPS)； Memory • 64GB/128GB LPDDR5X (built-in, non-changeable)
Network • 3 LAN (1x1G, 2x 2.5G/5G/10G) RJ45 • WiFi-6 + SIM for 4G/5G LTE(Station/AP) Storage • 1 x M.2-2280 256G SSD (Option: 500G/1TB)
I/O • 7 x LAN RJ45 • 2 x HDMI 2.1 4960x2160 4K@60Hz • USB: 4 x 3.2 Type-A Rear, 1 x 3.2 Type-C Front • 1 x 12-pin MIO Black：1 x RS232、1 x RS485、1 x CAN, 1x24V DC； • 1 x 28pin Car MIO (Front)：1 x RS232、4 x RS485、1 x CAN，DC-12V； • 1 x 12pin Car MIO (Front)：4 x RS485，DC-12V； • 1 x 40pin Car MIO (Front)：24bit GPIO ( 8bit Optocoupler Isolation） • Video: 2 x Rear Mini Fakra (8-ch GMSL2), 1 x HDMI 2.1 • Audio: 1 x 3.5mm Combo Jack，1 x 12pin Car MIO(Front)：4 x DMIC、2 x 5W AMP Function • TPM 2.0 • Watchdog • 1x TTL Debug
Chassis • Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 130L x 125W x 70H (mm) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets Power Supply • Power: DC9-36V 2-pin Phoenix • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Ubuntu22.04 (Jetpack6.2) Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® 12Core Neoverse 64bit • ARM® 14Core Neoverse 64bit Chipset • System-on-Chip (SoC)
Graphics • 2 x HDMI 2.1 Out，up to 4k@60Hz • Ampere GPU, 64/128 GB LPDDR5X • Jetson Thor T4000 1536C ( 1200 TFLOPS)； • Jetson Thor T5000 2560C( 2070 TFLOPS)； Memory • 64GB/128GB LPDDR5X (built-in, non-changeable)
Network • 3 LAN (1x1G, 2x 2.5G/5G/10G) RJ45 • WiFi-6 + SIM for 4G/5G LTE(Station/AP) Storage • 1 x M.2-2280 256G SSD (Option: 500G/1TB)
I/O • 7 x LAN RJ45 • 2 x HDMI 2.1 4960x2160 4K@60Hz • USB: 4 x 3.2 Type-A Rear, 1 x 3.2 Type-C Front • 1 x 12-pin MIO Black：1 x RS232、1 x RS485、1 x CAN, 1x24V DC； • 1 x 28pin Car MIO (Front)：1 x RS232、4 x RS485、1 x CAN，DC-12V； • 1 x 12pin Car MIO (Front)：4 x RS485，DC-12V； • 1 x 40pin Car MIO (Front)：24bit GPIO ( 8bit Optocoupler Isolation） • Video: 2 x Rear Mini Fakra (8-ch GMSL2), 1 x HDMI 2.1 • Audio: 1 x 3.5mm Combo Jack，1 x 12pin Car MIO(Front)：4 x DMIC、2 x 5W AMP Function • TPM 2.0 • Watchdog • 1x TTL Debug
Chassis • Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 130L x 125W x 70H (mm) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets Power Supply • Power: DC9-36V 2-pin Phoenix • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Ubuntu22.04 (Jetpack6.2) Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
