Processor
• ARM® Cortex®-A78AE 6 Core 1.7 GHz • ARM® Cortex®-A78AE 6 Core 2.0 GHz • ARM® Cortex®-A78AE 8 Core 2.0 GHz
Chipset
• Jetson Orin Nano/NX SPUER SoC
|
Graphics
• 1 x HDMI 2.1 Out，up to 4k@60Hz • Ampere GPU, 4/8/16GB LPDDR5 • Jetson Orin Nano 4GB: 512 NVIDIA® CUDA® cores, 16 Tensor cores, 625Mhz, 7-10w ( 34 TOPS INT8 )； • Jetson Orin Nano 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 625Mhz, 7-15w (67 TOPS INT8 )； • Jetson Orin NX 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 765Mhz, 10-20w ( 117 TOPS INT8 )； • Jetson Orin NX 16GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 918Mhz,10-25w ( 157 TOPS INT8 )；
Memory
• 4GB/8GB/16GB LPDDR5 (built-in, non-changeable)
|
Network
• 6 Gigabit LAN M12 Aviation (1 with POE） • Dual-Band (2.4/5.0GHz) WiFi/BT • 1 x MiniPCIe full size slot (for 4G Wireless Module) • Wake on LAN, PXE boot (Diskless) supported
Expansion Slot
• 1 x M.2 Key-B，for 5G Module (FM650-CN / RM500U-CN） • 1 x M.2 Key-E，for WiFi-6/BT (AP6275P) • 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.)
|
Storage
• 1 x M.2-2280 for NVMe SSD or for other PCIe add-on (like Cambricon MLU220 AI accelerator.) • 1 x TF card reader

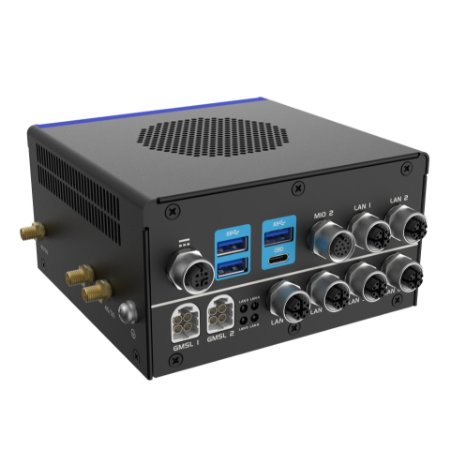

Back Panel I/O
• 3 x USB 3.0 port • 1 x TYPE C port • 1 x HDMI® port • 6 x Gigabit LAN M12 Aviation (1 with POE） • 2 Rear Mini Fakra (8-ch GMSL2) • 1 x MIO 12-pin Black • DC9-36V 2-pin Phoenix
|

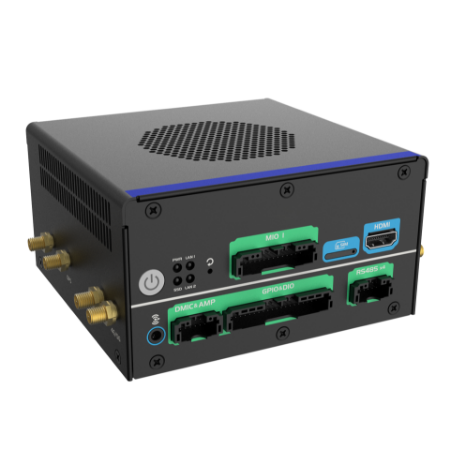

Other I/O
• MIO-12pin (Green) 4DMIC(Front) • MIO 28-pin Green (1 CAN-12V, 1 RS232, 4 RS485) (Front) • 1 x HDMI 2.1 ports (Front) • 1 x SIM Slot(Front)
Chassis
• Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 130L x 125W x 50H (mm) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/ wall mount brackets
|
Power Supply
• Power: Adapters, 90W,AC100~240V,24V ,M8 4pin Aviation • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Ubuntu22.04 (Jetpack6.2)
|
Applications
• Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.
Environment
• Operating Temperature: -20 to +75 C
• Non operating temperature: -20 to +75 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
|
