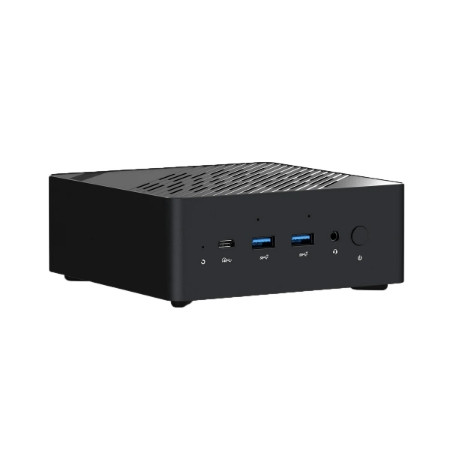

Nano-AI936L2 - AMD Ryzen AI Strix Halo

80 TOPS Mini PC for Edge Computing

Featured Highlights
	AMD® FP8 , Ryzen AI 300 Series/Ryzen 200 Series
	Support Four displays, HDMI 2.1 + DP1.4 + 2 USB 4
	2 x SO-DIMM DDR5 5600MHz Max. 96 GB
	2 x M.2 2280, PCIE 4.0 GEN4 SSD
	1 x M.2 2230 (for WiFi+BT or Other Module)
	2 2.5 Gigabit LAN, M.2 WiFi
	3 x USB3.2(10Gb), 2 x USB4
	1 x 3.5mm Combo Audio Jack
	DC19V 120W or higher wattage Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11, IoT, Linux
	Applications: Digital Signage, Micro Platform for Edge Computing, OpenVino®, Audio/Video PC, AI-IoT, etc.

In Stock

SKU: Nano-AI936L2

Specifications
Request for Info

Product specifications

Processor • AMD® FP8 , Ryzen AI 300 Series/Ryzen 200 Series Graphics • Support 4 Graphics ports • 1 x DP 1.4, supporting a maximum resolution of 4K @60Hz • 1 x HDMI® 2.1, supporting a maximum resolution of 4K @60Hz • 2 x USB 4, supporting a maximum resolution of 4K @60Hz
Memory • 2 x SO-DIMM DDR5 5600MHz Max. 96 GB Network • 2 x Realtek® RTL8125H Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x M.2 2230 (for WiFi+BT or Other Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) Storage • 2 x M.2 2280, PCIE 4.0 GEN4 SSD
Audio • 1 x 3.5mm Analog Stereo Audio jacks Back Panel I/O • 1 x USB 3.2 (10Gb) ports • 1 x USB4 • 1 x DP • 1 x HDMI® port • 2 x LAN port • 1 x DC-In Power Connector
Other I/O • 2 x USB 3.0 ports (Front) • 1 x USB 4.0 port (Front) • 1 x 3.5mm Audio jacks (Front) System BIOS • AMI® UEFI 64MBit / Legacy BIOS • Watchdog supported
Chassis • Dimensions: 140mm(W) x 138mm(D) x 50mm(H) (Depth dimension is changeable) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount bracket Power Supply • Power: DC19V 120W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 11, IoT, Linux Applications • Digital Signage, Edge AI, OpenVino®, Entertainment PC, AI-IoT, etc.
Environment • Operating Temperature: -10 to +50 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
