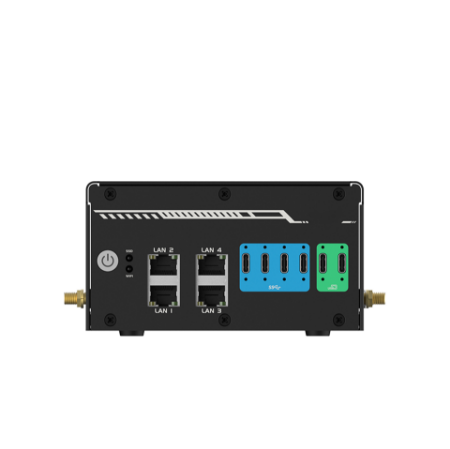

Picture of CAN-200H

Picture of CAN-200H

Picture of CAN-200H

CAN-200H - Intel® Ultra Arrow Lake CAR PC with CAN BUS

Intel® Arrow Lake, HDMI, 4 x LAN, 2 x CAN ,2 x RS232, 4 x RS485, 8 x GPIO

Featured Highlights
	Intel® Ultra Arrow Lake
	Up to 96TOPS
	1x HDMI 1.4
	Onboard 16G/32/64GB LPDDR5
	1x M.2 Key M for NVME(PCIE X4)
	4 x Intel® Gigabit LAN, 2 x CAN Buses,1x M.2 Key E for wifi/BT ,1x M.2 Key B for 4G/5G
	4 x RS-485, 2 x RS232/RS485, 2 x CAN FD, 8 x GPIO ,1 x SIM card,1 x 3.5mm Audio
	Power Supply: 24V DC IN
	OS Support: Windows/Linux
	Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.

SKU: CAN-200H

Specifications
Request for Info

Product specifications

Processor • Intel® Ultra Arrow Lake, Up to 96Tops Graphics • 1 x HDMI 1.4
Memory • Onboard 16G/32/64GB LPDDR5 Network • 4 x Intel GbE LAN ( 1xi219V, 2xi226V, 1xi210AT ) • 1 x M.2 Key E for wifi/BT • 1 x M.2 Key B for 4G/5G
Expansion Slot • 1 x M.2 KEY E，for wifi • 1 x M.2 KEY B，for 4G/5G Cellular • 1 x MXM for AI/GPU Modules 82mm105mm Storage* • 1x M.2 Key M for NVME(PCIE X4)
Back Panel I/O • 1 x DC IN • 4 x RS-485, 115200bps • 2 x RS232/RS485, 115200bps • 2 x CAN FD • 8 x GPIO • 1 x SIM card • 1 x 3.5mm Audio • 1 x Microphone Array • 8 x GMSL I/O • 1 x Power button,1x SSD Led,1x Power Led (Front) • 6 x USB 3.0 Type-C（supports Graphics）(Front) • 4 x RJ45, 10/100/1000 Mbps(Front)
Function • TPM 2.0 • Watchdog • 1x TTL Debug Chassis • Dimensions: 130mm x 125mm x 70mm
Power Supply • Power: DC 12~36V 2-pin Phoenix • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows, ROS2, Ubuntu 22.04
Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc. Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
