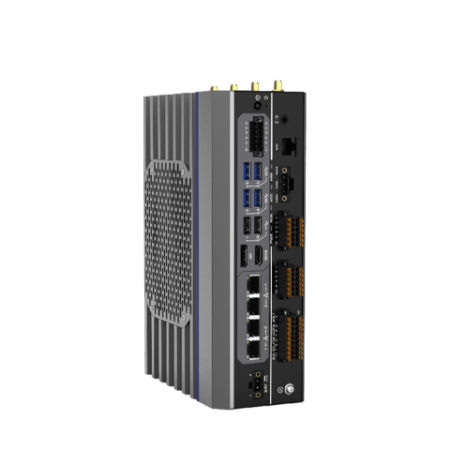

Picture of CAN-H610

Picture of CAN-H610

Picture of CAN-H610

Picture of CAN-H610

Picture of CAN-H610

CAN-H610 - Intel® Alder Lake-S Visual Computing

Intel® LGA1700 12~14 Gen. i9/i7/i5/i3 CPU, DP+ HDMI, 4 x LAN, 2 x CAN , 2 x RS232, 4 x RS485

Featured Highlights
	Intel® LGA1700 12~14 Gen . i9/i7/i5/i3 CPU
	H610
	Intel® CPU integrated Gen.12 Graphics Engines, DP+ HDMI® Dual Display
	2 x DDR5-SODIMM，Up to 128G
	2 x M.2 Key M Socket (2242/2280, NVME)
	4 x Intel® Gigabit LAN, 2 x CAN Buses
	4 x USB3.0 , 2 x USB2.0 , 2 x RS485/232, 4 x 485/422/232 ,Optical isolation 16 digit I/O（8-in，8-Out）
	Power Supply: 24V DC IN
	OS Support: Windows 11, Linux
	Applications: Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc.

SKU: CAN-H610

Specifications
Request for Info

Product specifications

Processor • 13th and 14th Generation Intel® Socket-S Series LGA1700 Raptor Lake/Meteor Lake • Intel® Core™ i9-14900K, i9-13900K, i9-13900KF 24C/32T 36M Cache • Intel® Core™ i7-13700K, i7-13700KF 16C/24T 30M Cache • Intel® Core™ i5-13400K, i5-13500KF 14C/20T 24M Cache • 12th Generation Intel® Socket-S Series LGA-1700 Alder Lake • Intel® Core™ i9-12900, i9-12900T, i9-12900K 16C/24T 30M Cache • Intel® Core™ i7-12700, i7-12700T 12C/20T 25M Cache • Intel® Core™ i5-12600, i5-12500, i5-12400, i5-12400T, i5-12500T 6C/12T 18M Cache • Intel® Core™ i3-12100, i3-12100T, i3-12300, i3-12300T 4C/8T 12M Cache • Intel® Pentium® Gold G7400, G7400T 2C/4T 6M, Celeron® G6900T 2C/2T 4M Chipset • H610
Graphics • Intel® CPU integrated Gen.12 Graphics Engines • 1 x HDMI 2.1，Up to 4096 ×2160 @60Hz • 1 x DP，Up to 7680 x 4320 @ 60Hz Memory • 2 x DDR5 4800MHz SO-DIMM, up to 128GB 5600/5200/4800MHz Dual Channel
Network • 4 x Intel GbE LAN ( 1xi219V, 2xi226V, 1xi210AT ) • 4 x RJ45 Expansion Slot • MB：1xM.2 Key B Socket (3042/3052) support 4G/5G • Daughter Board：1 x M.2 Key-E 2230，for Wifi/BT
Storage • 2 x M.2 Key M Socket (2242/2280,NVME) Audio • Realtek ALC897 • 1 x 3.5mm Audio Out jack 2-in1（Mic-in,Line-out)
I/O • 4 x LAN RJ45 Gigabit • MB: 2 x RS485/232（with CAN，integrated by 12Pin Phoenix connector） • Daughter Board：4 x RS232/485/422 Magnetic Isolation • 2 x CAN Buses（12Pin Phoenix /RJ50/3Pin connectors,choose 2 from 3） • 4 x USB3.0 ，2 x USB2.0 • Optical 16-bit I/O（8-in, 8-out） Function • TPM 2.0 • Watchdog • 1x TTL Debug
BIOS • AMI UEFI BIOS Chassis • Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 230mm(L)×165mm(W)×71.5mm(H) • Weight: 4.68 kg (approx. 10.32 lbs) • Supports Desk/Wall-mounting, Din rail mounting
Power Supply • Power: DC 24V 2-pin Phoenix OS Support • Windows 10/11 , Linux
Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc. Environment • Operating Temperature: -40 to +55 C • Non operating temperature: -40 to +85 C • Vibration - with SSD：2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis • Shock - with SSD：15G, IEC 60068-2-27, half sine, 11ms duration • Operating Relative Humidity: 0% to 90% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • 13th and 14th Generation Intel® Socket-S Series LGA1700 Raptor Lake/Meteor Lake • Intel® Core™ i9-14900K, i9-13900K, i9-13900KF 24C/32T 36M Cache • Intel® Core™ i7-13700K, i7-13700KF 16C/24T 30M Cache • Intel® Core™ i5-13400K, i5-13500KF 14C/20T 24M Cache • 12th Generation Intel® Socket-S Series LGA-1700 Alder Lake • Intel® Core™ i9-12900, i9-12900T, i9-12900K 16C/24T 30M Cache • Intel® Core™ i7-12700, i7-12700T 12C/20T 25M Cache • Intel® Core™ i5-12600, i5-12500, i5-12400, i5-12400T, i5-12500T 6C/12T 18M Cache • Intel® Core™ i3-12100, i3-12100T, i3-12300, i3-12300T 4C/8T 12M Cache • Intel® Pentium® Gold G7400, G7400T 2C/4T 6M, Celeron® G6900T 2C/2T 4M Chipset • H610
Graphics • Intel® CPU integrated Gen.12 Graphics Engines • 1 x HDMI 2.1，Up to 4096 ×2160 @60Hz • 1 x DP，Up to 7680 x 4320 @ 60Hz Memory • 2 x DDR5 4800MHz SO-DIMM, up to 128GB 5600/5200/4800MHz Dual Channel
Network • 4 x Intel GbE LAN ( 1xi219V, 2xi226V, 1xi210AT ) • 4 x RJ45 Expansion Slot • MB：1xM.2 Key B Socket (3042/3052) support 4G/5G • Daughter Board：1 x M.2 Key-E 2230，for Wifi/BT
Storage • 2 x M.2 Key M Socket (2242/2280,NVME) Audio • Realtek ALC897 • 1 x 3.5mm Audio Out jack 2-in1（Mic-in,Line-out)
I/O • 4 x LAN RJ45 Gigabit • MB: 2 x RS485/232（with CAN，integrated by 12Pin Phoenix connector） • Daughter Board：4 x RS232/485/422 Magnetic Isolation • 2 x CAN Buses（12Pin Phoenix /RJ50/3Pin connectors,choose 2 from 3） • 4 x USB3.0 ，2 x USB2.0 • Optical 16-bit I/O（8-in, 8-out） Function • TPM 2.0 • Watchdog • 1x TTL Debug
BIOS • AMI UEFI BIOS Chassis • Nano-Size Sheet-metal, Desktop, wallmount, DIN • Dimensions: 230mm(L)×165mm(W)×71.5mm(H) • Weight: 4.68 kg (approx. 10.32 lbs) • Supports Desk/Wall-mounting, Din rail mounting
Power Supply • Power: DC 24V 2-pin Phoenix OS Support • Windows 10/11 , Linux
Applications • Drone, Robot, Smart Vehicles, Smart Manufacture, AI Edge, Visual computing. etc. Environment • Operating Temperature: -40 to +55 C • Non operating temperature: -40 to +85 C • Vibration - with SSD：2Grms, IEC 60068-2-64, random，5~500Hz，1 hr/axis • Shock - with SSD：15G, IEC 60068-2-27, half sine, 11ms duration • Operating Relative Humidity: 0% to 90% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
