NUC-N100V4c Alder Lake-N 4K Mini Digital Signage PC

12th Gen Alder Lake-N UHD Graphics, 4 Display: 2 HDMI® 2.0 + 2 Type-C, LAN+ 4USB, M.2 SSD + M.2 SATA

Featured Highlights
	Intel® N-Series Processor
	Intel® Alder Lake-N Platform (SOC)
	Intel® UHD Graphics, 2 HDMI® 2.0 + 2 Type-C (DP/HDMI®)
	2 DDR4-SO, up to 32GB Memory
	M.2 2280 NVMe/SSD + M.2 2242 SATA/SSD
	1 Gigabit LAN, WiFi6/BT5.2
	2 USB 3.1, 2 USB 2.0
	HD Audio
	DC12V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11/10, Linux
	Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

SKU: NUC-N100V4c

NUC-N100V4c

features 12th Gen. Alder Lake-N, UHD Graphics, 4 Display, LAN, 4 USB, up to 32GB Memory. This is a Alder Lake-N 4K Mini Digital Signage PC. This Fanless System is Perfect for Digital Signage, Edge AI, Audio/Video PC, Set Top Box.

Specifications
Request for Info

Product specifications

Processor • Intel® N100 3.40GHz 4Cores 4Threads 6M 6W • Option: • Intel® N97 3.60GHz 4Cores 6M 12W • Intel® N50 3.40GHz 2Cores 6M 6W • Intel® N95 3.40GHz 4Cores 4Threads 6M 15W • Intel® N200 3.70GHz 4Cores 4Threads 6M 6W • Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W • Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 15W • Intel® Atom® x7213E 3.20GHz 2Cores 6M 10W • Intel® Atom® x7211E 3.20 GHz 2Cores 6M 6W • Intel® Atom® x7425E 3.40 GHz 4Cores 6M 12W Chipset • Intel® Alder Lake-N Platform (SOC)
Graphics • Intel® UHD Graphics • 2 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz • 2 x Type-C (DP/HDMI®) Memory • 2 x DDR4 SO-DIMM • 3200MHz unbuffered non-ECC (Single Channel I/O) • Supports up to 32GB
Network • 1 x Realtek® RT8111H Gigabit (10/100/1000 Mb/s) LAN • Onboard WiFi6/BT5.2 • 1 x M.2 2230 (Taken by WiFi/BT Module) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi/BT or Other Module) • 1 x M.2 2242 (for SATA-6Gb/s SSD) • 1 x M.2 2280 (for PCIe NVMe SSD)
Storage • 1 x M.2 2242 (for SATA-6Gb/s SSD) • 1 x M.2 2280 (for PCIe NVMe SSD) Audio • Realtek® ALC269 • 1 x 3.5mm Analog Stereo Audio jack

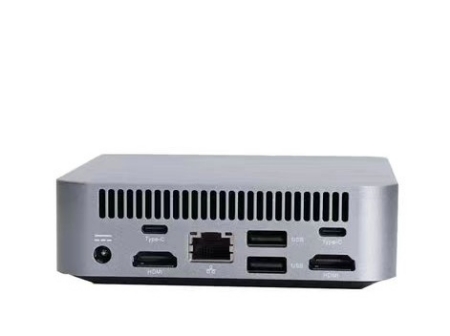

Back Panel I/O • 1 x LAN port • 2 x HDMI® 2.0 ports • 2 x Type-C ports (Supports DP/HDMI®) • 2 x USB 2.0 ports • 1 x DC-In Power Connecter Other I/O • 2 x USB 3.2 ports (Front) • 1 x Audio jack (Front)
System BIOS • AMI® BIOS Chassis • NUC Enclosure • Dimensions: 4.42"(W) x 4.42"(D) x 1.46"(H), Weight: 1 lbs., Gross: 5 lbs. • Color: Silver and Dark Grey as default colors, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11/10, Linux
Application • Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc. Environment • Operating Temperature: -5 to +60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
