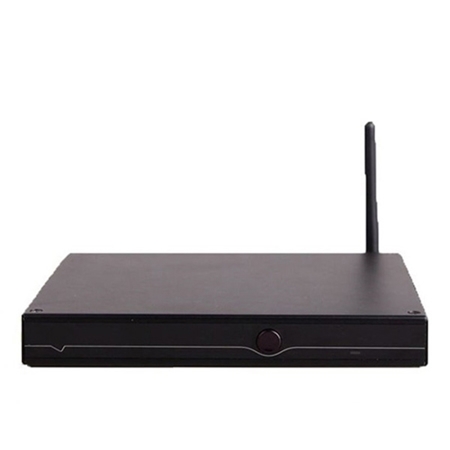

i63B / i65B - Deep Learning OpenVino Mini PC

8th/10th Gen. Core™-u i7/i5/i3, Triple Display 2 HDMI+DP, 5 USB 3.0+COM, 2 M.2+MiniPCIe+SIM

Featured Highlights
	10th/8th Gen. Intel® Core™ i7/i5/i3 u-series Processor
	Intel® Comet Lake/Whiskey Lake-u/Coffee Lake-u Platform (SOC)
	Intel® UHD 620/Iris® 655 4K Graphics, HDMI 2.0+HDMI+DP
	2 DDR4 SO-DIMM for up to 64GB Memory
	MiniPCIe with SIM for 4G-LTE
	Realtek® Gigabit LAN, M.2 WiFi
	5 USB 3.0, COM
	M.2 SSD/NVMe
	5.1 ALC662 Audio Sound
	Power Supply: DC12-19V Input
	OS Support: Windows 10/11, IoT, Linux
	Applications: Set Top Box, Digital Signage Player, POS/Kiosk, IPTV, Deep Learning OpenVino, Robot, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.

SKU: i63B

Specifications
Request for Info

Product specifications

Processor • 8th/10th Generation Intel® Core™ u-series FCBGA1528 Processor • Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 12Threads 12M 15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W • Intel® Pentium® Gold-6405u 2.40GHz 2Core 4Threads 2M 15W • Intel® Celeron® 5205u 2.40GHz 2Core 2Threads 2M 15W • Intel® Core™ i5-8259u 2.30/3.80GHz 4Core 8Threads 6M w/Iris Plus Graphics 655 • Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W, supports vPro® • Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W Chipset • Intel® Comet Lake/Whiskey Lake Platform (SOC) • Option: Intel® Coffee Lake Platform (SOC)
Graphics • Intel® 10th Gen. UHD/UHD 620 Graphics (based on CPU), 4K/5K Resolution, HDR 10Bit color • Option: Intel® Iris® Plus 655 Graphics • Support 3 Graphics ports • 1 x HDMI® 1.4, supporting a maximum resolution of 3840x2160 30Hz for HDCP 2.2 • 1 x HDMI® 2.0 4K 60Hz Graphics port • 1 x DP 4K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by Wi-Fi+BT Module) • 1 x MiniPCIe full size slot (for 3G/4G-LTE Module w/ SIM pair) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x MiniPCIe full size slot (for 3G/4G-LTE Module w/ SIM pair) • 1 x M.2 2230 (for Wi-Fi+BT Module or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe)
Storage • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 1 x HDMI® 1.4 port • 1 x HDMI® 2.0 port • 1 x DP • 1 x LAN port • 1 x DC-In 2.5mm Power Connector Other I/O • 5 x USB 3.0 ports (Side) • 1 x RS232 Serial COM port (Side) • 2 x 3.5mm Audio jacks (Side)
System BIOS • Watchdog supported Chassis • Booksize i 1" Slim with Heatpipe copper blower. 7.46"(W) x 5.80"(D) x 1.00"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available
Power Supply • Power: DC19V 2.1A 40W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Optional DC12V 2.5mm AC Adapter • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux
Application • Set Top Box, Digital Signage, POS/Kiosk, IPTV, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
