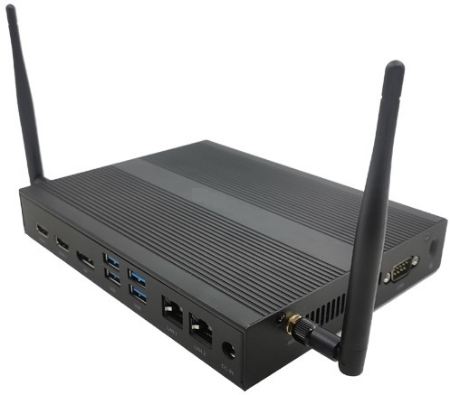

Picture of i63C / i65C

Picture of i63C / i65C

Picture of i63C / i65C

Picture of i63C / i65C

Picture of i63C / i65C

Picture of i63C / i65C

i63C / i65C - The Great Deep Learning OpenVino Mini PC

1" Slim 10th/8th Gen., UHD620 4K GPU 3 Display, 2 HDMI+DP+COM, 6 USB+MiniPCIe+SIM

Featured Highlights
	10th/8th Gen. Intel® Core™ i7/i5/i3 u-series Processor
	Intel® Comet Lake/Whiskey Lake-u Platform (SOC)
	Intel® 10th Gen. UHD/8th Gen UHD Graphics, HDMI 2.0 + HDMI 1.4 + DP 1.2
	2 DDR4 SO-DIMM for up to 64GB Memory
	MiniPCIe with SIM for 3G/4G
	2 Gigabit LAN + M.2 WiFi
	6 USB 3.0, COM
	SATA-6Gb/s, M.2 SSD/SATA
	5.1 ALC662 Audio Sound
	Power Supply: DC12-19V Input
	OS Support: Windows 10/11, IoT, Linux, FreeBSD
	Applications: Set Top Box, Digital Signage Player, POS/Kiosk, IPTV, Robot, Deep Learning OpenVino, Traffic Controller, Industrial Control/IPC, Medical Equipment, etc.

SKU: i63C

Specifications
Request for Info

Product specifications

Processor • 10th Generation Intel® Core™ Comet Lake u-Series FCBGA1528 Processor • Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 12Threads 12M 15/25W • Intel® Core™ i7-10610u 1.80/4.90GHz 4Core 8Threads 8M 15/25W, supports vPro® • Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W • Intel® Pentium® Gold 6405u 2.40GHz 2Core 4Threads 2M 15W • Intel® Celeron® 5205u 1.90GHz 2Core 2Threads 2M 15W • 8th Generation Intel® Core™ Whiskey Lake u-Series FCBGA1528 Processor • Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W, supports vPro® • Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i5-8365u 1.60/4.10GHz 4Core 8Threads 6M 15/25W, supports vPro® • Intel® Core™ i5-8265u 1.60/3.90GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-8145u 2.10/3.90GHz 2Core 4Threads 4M 15/25W • Intel® Pentium® Gold 5405u 2.30GHz 2Core 4Threads 2M 15W • Intel® Celeron® 4305u 2.20GHz 2Core 2Threads 2M 15W • Intel® Celeron® 4205u 1.80GHz 2Core 2Threads 2M 15W Chipset • Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
Graphics • Intel® 10th/8th Gen. UHD Graphics (based on CPU), 4K/5K Resolution, HDR 10Bit color • Support 3 Displays • 1 x HDMI® 2.0 4K 60Hz Graphics port • 1 x HDMI® 1.4, supporting a maximum resolution of 4K @30Hz for HDCP 2.2 • 1 x DP 1.2 4K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Intel® I219 Gigabit (10/100/1000 Mb/s) LAN, suports vPro®/AMT • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • 1 x MiniPCIe full size slot (for 3G/4G-LTE modem or Movidius Myriad-X Module) • 1 x SIM socket (Pair up for MiniPCIe) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280/2242 (for SATA-6Gb/s SSD) • 1 x MiniPCIe full size slot (for 3G/4G-LTE modem or Movidius Myriad-X Module)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280/2242 (for SATA-6Gb/s SSD) Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Audio-In/Out jacks
Back Panel I/O • 4 x USB 3.0 ports • 1 x HDMI® 2.0 port • 1 x HDMI® 1.4 port • 1 x DP 1.2 • 2 x LAN ports • 1 x DC-In 2.5mm Power Connector Other I/O • 1 x RS232 Serial COM port (Side) • 2 x USB 3.0 ports (Front) • 2 x 3.5mm Analog Audio-In/Out jacks (Front)
System BIOS • AMI® • Watchdog supported Chassis • Slim booksize with Heatpipe copper blower. 7.48"(W) x 5.83"(D) x 1.18"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available
Power Supply • Power Input: DC12-19V Wide Range. 40W to 120W depends on power usage. • Standard with DC12V 5A 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux, FreeBSD
Application • Set Top Box, Digital Signage, POS/Kiosk, IPTV, AI Edge, Visual Computing, Medical Equipment, Network Security, IoT, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • 10th Generation Intel® Core™ Comet Lake u-Series FCBGA1528 Processor • Intel® Core™ i7-10710u 1.10/4.70GHz 6Core 12Threads 12M 15/25W • Intel® Core™ i7-10610u 1.80/4.90GHz 4Core 8Threads 8M 15/25W, supports vPro® • Intel® Core™ i7-10510u 1.80/4.90GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i5-10210u 1.60/4.20GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-10110u 2.10/4.10GHz 2Core 4Threads 4M 15/25W • Intel® Pentium® Gold 6405u 2.40GHz 2Core 4Threads 2M 15W • Intel® Celeron® 5205u 1.90GHz 2Core 2Threads 2M 15W • 8th Generation Intel® Core™ Whiskey Lake u-Series FCBGA1528 Processor • Intel® Core™ i7-8665u 1.90/4.80GHz 4Core 8Threads 8M 15/25W, supports vPro® • Intel® Core™ i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W • Intel® Core™ i5-8365u 1.60/4.10GHz 4Core 8Threads 6M 15/25W, supports vPro® • Intel® Core™ i5-8265u 1.60/3.90GHz 4Core 8Threads 6M 15/25W • Intel® Core™ i3-8145u 2.10/3.90GHz 2Core 4Threads 4M 15/25W • Intel® Pentium® Gold 5405u 2.30GHz 2Core 4Threads 2M 15W • Intel® Celeron® 4305u 2.20GHz 2Core 2Threads 2M 15W • Intel® Celeron® 4205u 1.80GHz 2Core 2Threads 2M 15W Chipset • Intel® Comet Lake-u/Whiskey Lake-u Platform (SOC)
Graphics • Intel® 10th/8th Gen. UHD Graphics (based on CPU), 4K/5K Resolution, HDR 10Bit color • Support 3 Displays • 1 x HDMI® 2.0 4K 60Hz Graphics port • 1 x HDMI® 1.4, supporting a maximum resolution of 4K @30Hz for HDCP 2.2 • 1 x DP 1.2 4K 60Hz Graphics port Memory • 2 x DDR4 SO-DIMM • 2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x Intel® I219 Gigabit (10/100/1000 Mb/s) LAN, suports vPro®/AMT • 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • 1 x MiniPCIe full size slot (for 3G/4G-LTE modem or Movidius Myriad-X Module) • 1 x SIM socket (Pair up for MiniPCIe) • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280/2242 (for SATA-6Gb/s SSD) • 1 x MiniPCIe full size slot (for 3G/4G-LTE modem or Movidius Myriad-X Module)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280/2242 (for SATA-6Gb/s SSD) Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Audio-In/Out jacks
Back Panel I/O • 4 x USB 3.0 ports • 1 x HDMI® 2.0 port • 1 x HDMI® 1.4 port • 1 x DP 1.2 • 2 x LAN ports • 1 x DC-In 2.5mm Power Connector Other I/O • 1 x RS232 Serial COM port (Side) • 2 x USB 3.0 ports (Front) • 2 x 3.5mm Analog Audio-In/Out jacks (Front)
System BIOS • AMI® • Watchdog supported Chassis • Slim booksize with Heatpipe copper blower. 7.48"(W) x 5.83"(D) x 1.18"(H) • Net Weight: 2 lb. (Net) 5 lb. (gross with packaging) • Optional VESA Bracket Available
Power Supply • Power Input: DC12-19V Wide Range. 40W to 120W depends on power usage. • Standard with DC12V 5A 60W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, IoT, Linux, FreeBSD
Application • Set Top Box, Digital Signage, POS/Kiosk, IPTV, AI Edge, Visual Computing, Medical Equipment, Network Security, IoT, etc. Environment • Operating Temperature: -5 to +45 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
