Think Big. Go Small. Eco-Smart Computing

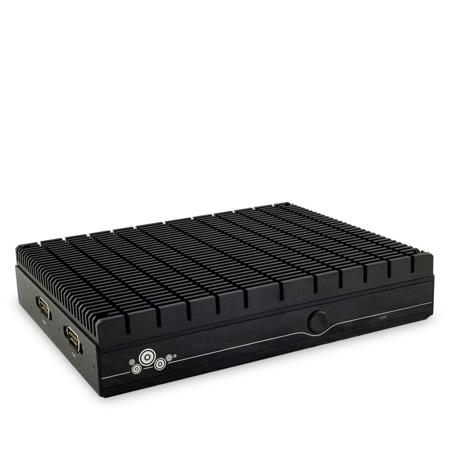

i63F

Triple 4K DP, 2HDMI, 2LAN, COM, M.2, mSATA
Featured Highlights
8th Gen. Intel® Core™ i7/i5 u-series Processor
Intel® Whiskey Lake Family (SoC)
Intel® UHD 620 4K Graphics, DP+2HDMI Triple Display
2 x DDR4 SO-DIMM for up to 64GB Memory
M.2 NVMe + mSATA SSD /4G-LTE + M.2 WiFi options
1 Intel® Gigabit LAN + 1 Realtek® Gigabit LAN
4 USB 3.1/3.0, 2 USB 2.0
5.1 ALC662 Audio Sound
Power Supply: DC19V input
OS Support: Linux, Windows 10, IOT
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, Robot, Traffic Controller,
IoT/Edge System, Industrial Control/IPC, etc.
Call for pricing Options(800-999-1278)
SKU: i63F
Product specifications
Attribute nameAttribute value
Processor

• Intel Core i7-8665u (vPro) 1.90/4.80GHz 4Core 8Threads 8M 15/25W
• Intel Core i7-8565u 1.80/4.60GHz 4Core 8Threads 8M 15/25W
• Intel Core i5-8365u (vPro) 1.60/4.10GHz 4Core 8Threads 6M 15/25W
• Intel Core i5-8265u 2.10/3.90GHz 4Core 8Threads 6M 15/25W
• Intel Core i3-8145u 1.60/3.90GHz 2Core 4Threads 4M 15/25W
• Intel Pentium 5405u 2.30GHz 2Core 4Threads 2M 15W
• Intel Celeron 4305u 2.20GHz 2Core 2Threads 2M 15W
Chipset
• Intel® Whiskey Lake Platform (SOC)
Graphics
• Intel® UHD 620 Graphics,4K/5K Resolution, HDR 10Bit color
• Support Triple Display
• 1 x HDMI 1.4 Port 4096x2160 @30Hz
• 1 x HDMI 2.0 Port 4096x2160 @60Hz
• 1 x DP 1.2 Port 4096x2160 @60Hz
Memory
• 2 x DDR4 SO-DIMM
• 2400MHz unbufferred non-ECC (Dual Channel I/O)
• Supports up to 64GB
Network

• 1 x Intel i219LM Gigabit (10/100/1000 Mb/s) LAN
• 1 x Realtek RTL8111F Gigabit (10/100/1000 Mb/s) LAN
• Optional WiFi+BT via M.2 module
• Optional 3G/4G-LTE via miniPCIe module
• additional LAN can be added via miniPCIe slot or by USB module
• Wake on LAN, PXE boot (Diskless) supported
Expansion Slot

• 1 x M.2 2230 socket (configured with 11ac WiFi + Bluetooth module)
• 1 x M.2 2280 Socket for NVMe PCIe 4x SSD only (does not support SATA)
• 1 x MiniPCIe (Full Size) socket for mSATA or 3G/4G-LTE Modem
• 1 x SIM socket for 3G/4G-LTE option to pair up with miniPCIe socket
Storage

• 1 x M.2 2280 Socket for NVMe PCIe 4x SSD only (does not support SATA)
• 1 x mSATA 6Gb/s Socket
• 1 x SATA 6Gb/s Connector
Audio
• Realtek® ALC662 6-channel (5.1)
• 2 x 3.5mm analog stereo audio jacks
Back Panel I/O

• 2 x HDMI port
• 1 x DP port
• 1 x LAN port
• 2 x USB 2.0 Ports
• 1 x DC Jack In port (2.5mm)
Internal I/O

• 1 x SIM Socket
• 1 x MiniPCIe (full size) Socket
• 1 x M.2 2280 for SSD
• 1 x M.2 2230 for WiFi
• 1 x TPM Header
Other I/O
• 4 x USB 3.0 Port (Side)
• 2 x 3.5mm Audio Jacks (Side)
• 1 x DB9 COM port (Side)
• 1 x LAN Port (Side)
System BIOS
• AMI® UEFI 64MBit
• Watchdog Supported
Chassis

• Fanless Book size enclosure 7.48"W x 5.87D x 1.45H
• Optional: Slim Book size with cooling fan 7.48"W x 5.87D x 1.18H
• Net Weight: 2lb (net) 5 lb.(gross with packaging)
Power Supply

• DC19V 40W-60W Power Adapter (UL/CE/FCC Certified)
• Option: DC12V Power Input (Special Order with MOQ required)
• Power Cord: Standard US Power Cord included, European Power Cord available as an Option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Linux, Windows 10, IOT
ApplicationSet Top Box, Digital Signage, Network Appliance, POS/Kiosk, Robot, Traffic Controller, Industrial Control/IPC, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
