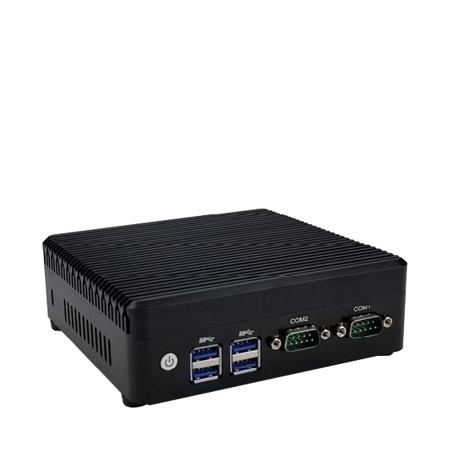

Picture of Nano-F5 Series

Picture of Nano-F5 Series

Picture of Nano-F5 Series

Picture of Nano-F5 Series

Nano-F5 Series

Nano-size Fanless Aluminum Chassis for 12x12cm Models with Hybrid Fan option

Featured Highlights
	Dimensions: 5.43"(W) x 4.96"(D) x 1.65~1.9"(H) with variable height to support additional storage options
	For 12x12cm Nano-Size MB, Aluminum. Heatsink Top with optional Hybrid slim blower
	Supports u, N, J, E, A-series CPU configurations
	7mm~15mm 2.5" HD/SSD Drive Bay
	DC 36-120W Power in
	Supports VESA, wall mount as well for 1U Multiple System tray.
	Color: Black or Silver as default color, custom colors available with special order
	Applications: Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.

SKU: Nano-F5

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

Nano-8000FL2C	i7-8550u	Skylake-uKaby Lake-u/-r	1 DDR4SO	Intel UHD 620 Intel HD 610	1 Realtek+option:1 Realtek	option 2 R+2 H	2 F + 2 R	1 HDMI+1 VGA\DP		GPIO	5.1 HDMI
Nano-7100D	i3-7100u	Kaby Lake-u	1 DDR4SO	Intel HD 620	1 Realtek	2 F	4 F	1 HDMI+1 DP			7.1 ALC892
Nano-8000C2	i5-8250u	Kaby Lake-r Kaby Lake-u	0 DDR4OB	Intel UHD 620 Intel HD 620	1 Realtek	2 R	2 R+2 F	1 HDMI			5.1 HDMI
Nano-6200C/6100C	i3-6100u	Skylake-u	1 DDR4SO	Intel HD 520	1 Realtek	2 F	4 F	1 HDMI+1 VGA	2 MiniPCIe		5.1 ALC662
Nano-J1900L4	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	4 Intel\WG82573V	2 F+2 H	1 F	1 VGA	MiniPCIe-F	GPIO	5.1 ALC662
Nano-J1900L2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek	2 R+2 H	2 F	1 HDMI+1 VGA	MiniPCIe-F		5.1 ALC662
Nano-7200L2/6100L2	i3-6100u	Skylake-u Kaby Lake-u	1 DDR4SO	Intel HD 520	2 Realtek	2 R+1 H	4 F	1 HDMI+1 DP	MiniPCIe		5.1 ALC662
Nano-6200D	i5-6200u	Skylake-u	1 DDR4SO	Intel HD 520	1 Realtek	2 F	4 F	1 HDMI+1 DP			5.1 ALC662
Nano-J1900L2V3	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek	2 F+2 H	2 F	1 HDMI+1 VGA	MiniPCIe-F		5.1 ALC662
Nano-J1900L2C2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek	3 F+2 H	1 F	1 HDMI+1 VGA	2 MiniPCIe		5.1 ALC662
Nano-J1900A/Nano-E3845	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R		1 HDMI+1 VGA+1 LVDS/H	2 MiniPCIe		5.1 ALC662
Nano-GX415	GX-415	AMD Kabini	1 DDR3SO	Radeon 8330	1 Realtek	2 R		1 HDMI+1 DP	2 MiniPCIe		5.1 ALC662
Nano-U10F	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H	2 F	2 F + 2 R	1 HDMI+1 DP			2.1 ALC269
Nano-U10C	i7-10510u	Comet Lake-u	2 DDR4SO	Intel UHD 620	1 Realtek\RTL8111H		2 F +2 R	HDMI+DP+Type-C			2.1 ALC269
Nano-U11B	i7-1185G7	Tiger Lake-u	2 DDR4SO	Intel UHD	LAN + WiFi/BT + 5G/4G-LTE	2F	4(3.1)R	2HDMI + DP+Thunderbolt4			CJC6811A
